- Place of Origin:CN;GUA
- Model Number:T-6703
- Brand Name:ITC
- Network Interface:Standard RJ45
- Communication Protocol:TCP/IP, UDP, IGMP
- Audio Format:MP3/MP2
- Sampling Rate:8K~48KHz
- Transmission Speed:10/100Mbps
- Audio Mode:16 digit stereo audio in CD level
- Frequency Response:80Hz~16KHz
- T.H.D.:≤1%
- S/N Ratio:>70dB
- Aux Input:350mV

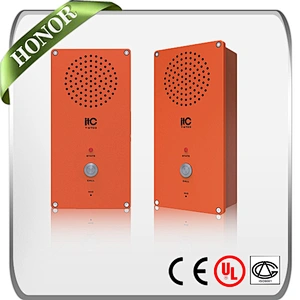

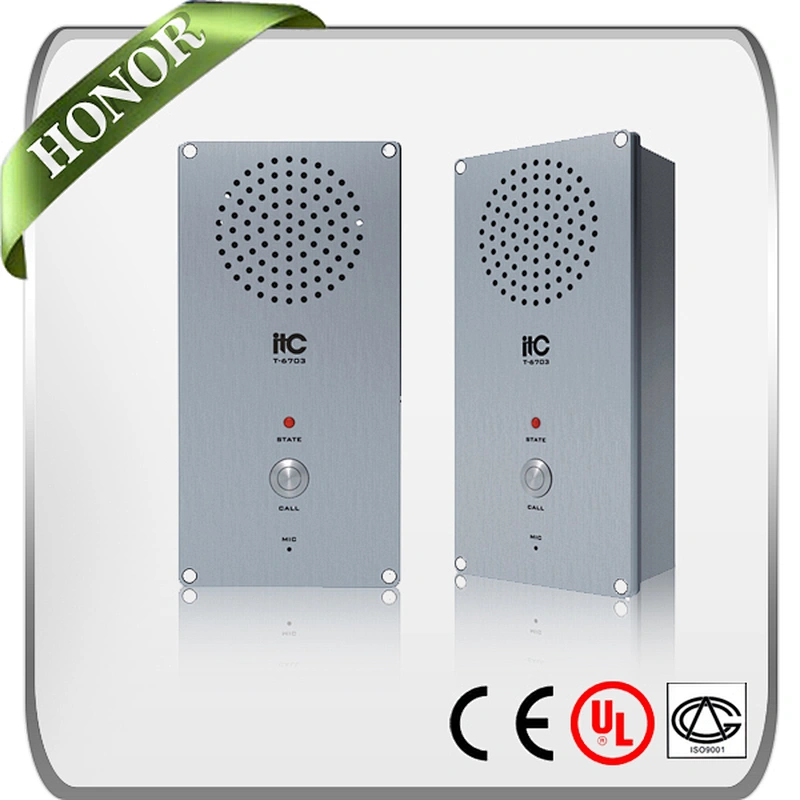

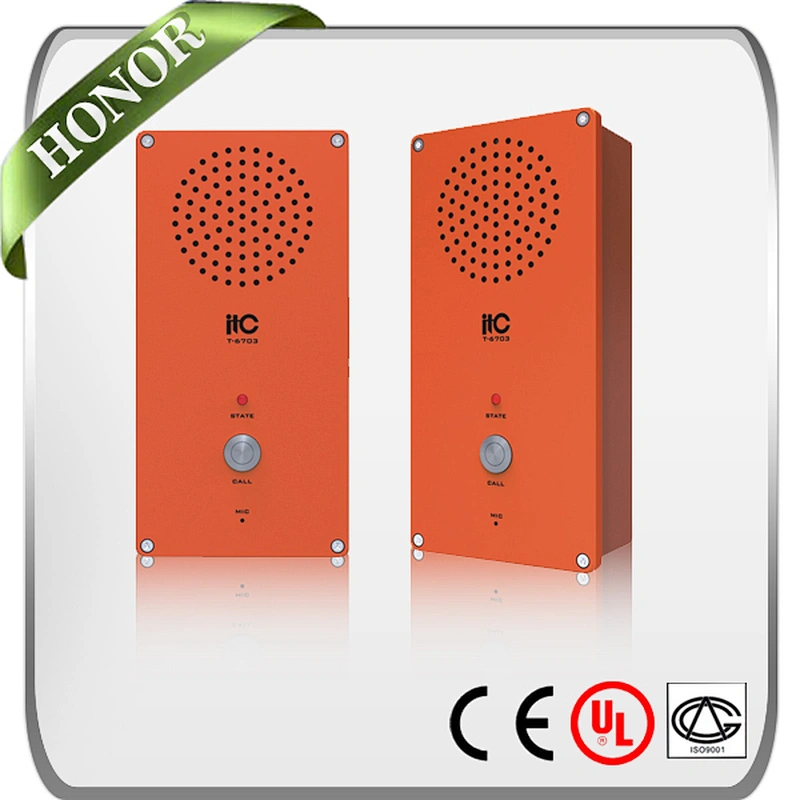

ITC T-6703 IP based 1 Key Get helped Waterproof and Vandal Proof Wired Audio Intercom
Model | T-6703 |
Network Interface | Standard RJ45 input |
Communication Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 100Mbps |
Audio Mode | 16 digit stereo audio in CD level |
Frequency Response | 80Hz~16KHz |
T.H.D. | ≤1% |
S/N Ratio | >70dB |
AUX Input Level | 350mV |
Internal Speaker Output Impedance & Power | 4Ω/5W |
External Speaker Output Impedance & Power | 4Ω, 10W |
Line Output Level | 1000mV |
Temperature | -25℃~65℃ |
Humidity | 20%~80% Relative humidity, without condensation |
Power Consumption | ≤20W |
Power Supply | DC 12V ~DC 24V |
Protection Rating | IP55 |
Dimension | 210 x 105 x 56mm |
Weight | 0.6Kg |
- Simple appearance and in design of disassembly proof screw; It adopts panel of antioxidation alloy in 6mm with aluminum case.
- It’s built in DSP and the start time is less than 1 sec.
- With a codec module for network audio, which support protocol of TCP/IP, UDP and IGMP(Group Broadcast) to achieve 16 bit stereo network audio in CD level.
- With dialogue module, support full duplex communication, work with DSP to achieve function of canceling noise and echo, audio compression, etc.
- With 5W highly sensitive full range speaker, the sound is clear and loud; With 10W digital amplifier at constant impedance output, which could connect with speaker at 4 ohm.
- With highly sensitive microphone.
- With function of monitoring, support recording management in server level, with AUX IO to work with monitoring system.
- Support security function, including status feedback function for access control, support access control, support alarm light control, tracking camera, etc.
- Customized call target.
- Support multiple calling strategy, including call waiting, call forwarding, unanswered reminder.
- Support time custom for transfer time, unanswered time, call waiting, etc.
- Support to trigger program broadcasting remotely via IP network.
- Custom hang up mode of initiative or passive.
- Support both PSTN phone broadcast and SM broadcast.
- Support to wifi network on-demand unicast via mobile phone or remote controller.
- Proof rating is IP55.
- Support DHCP and it’s compatible with multiple network structure, such as router, network switcher, gateway bridge, modem, intelnet, 2G, 3G, 4G, group broadcast, unibroadcast, etc.
- Support as least 3 kinds of highly safe authorization IP configuration, and the security factor is higher than remote configuration of Web.
- With authorization operation management; The server centrally administrate all accounts and the matching password.
- Built in lightning protection circuit.
- To adopt common network design so that the installation and expandability is easy to be achieved.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
