Communication Protocol:TCP/IP, UDP, IGMP(multicast)
Audio Format:MP3/MP2
Sampling Rate:8K~48KHz
Transmission Speed:100Mbps
Audio Mode:16-bit stereo CD sound level
Output Frequency:80Hz~16KHz
T.H.D.:≤1%
SNR:>70dB
Audio Input:350mV Industry standard pressure line terminals
Product Description
ITC T-6703EP IP Network Low Delay CD Sound Level IP55 Vandal Proof Audio Intercom
Professional assistance alarms and intercom integrated network terminals.Suitable for indoor and outdoor environments installation, anti-explosion and waterproof; a key to initiate an alarm and intercom communications to duty room.
Detailed Images

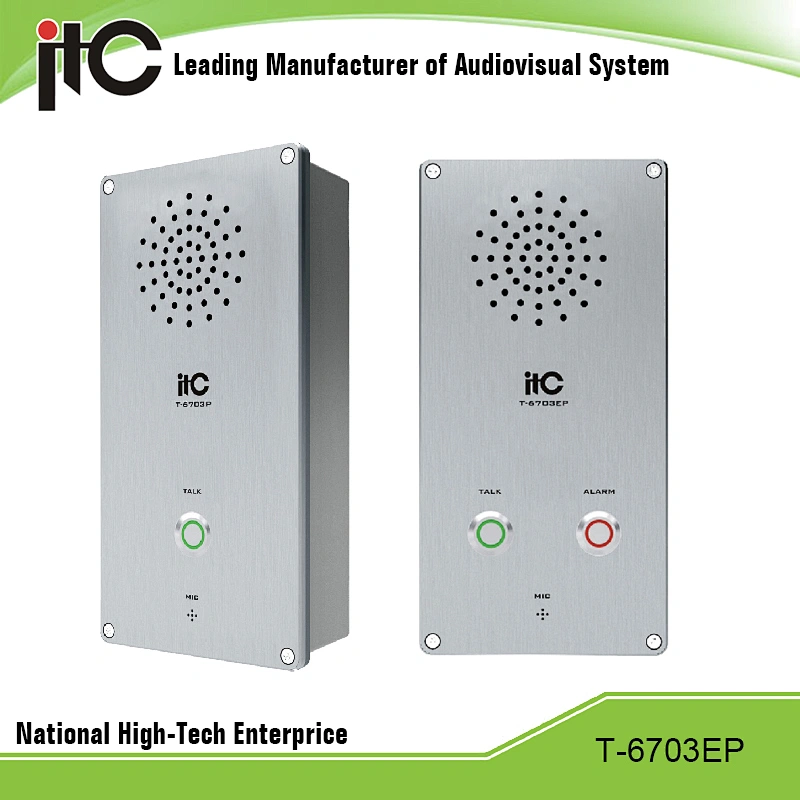

ITC T-6703EP IP Network Low Delay CD Sound Level IP55 Vandal Proof Audio Intercom
* Simple design and beautiful appearance, high-grade brushed aluminum panels, durable, can be flush mounted or surface mounted (with bottom box).
* The device uses an embedded computer technology and DSP audio processing technology design; high-speed industrial-grade chips, start-up time of less than 1 second.
* A key for help, call duty room intercom microphone, a key to achieve the relevant regional alarm function, fast links, simple and quick operation.
* Built-in high sensitivity microphone, a wide area sound capture, and high sound reproduction.
* Built-in 5W full-range monitor speakers, the sound is clear and loud.
* Support for hands-free calls and receive broadcasts.
* Support local electronic door locks, and local alarm indicator (choose 1).
* Support local short-circuit signal access.
* DC power supply interface, connect with external adapter and can support 11.5V ~ 24.5V.
* Can support POE power supply, is required for use with POE switches.
* Overall cast aluminum back box can be flush mounted or surface mounted installation.
* Protection class IP55, the overall use of alloy and tamper-resistant screws, and explosion-proof, water-proof.
* Ethernet port where you can access, support for cross-network and cross routes.
