- Place of Origin:CN;GUA
- Model Number:Voice Evacuation System
- Brand Name:ITC
- Voltage:~220-240V 50/60Hz
- Maximum current:3A (Exclude the 4 wire override output)
- Power Consumption:650W
- Distortion:<1% (Rated output power),1KHz
- Sensitivity:775mV
- Color:Black
- Frequency:80Hz~20KHz
- Operation Temperature:+5℃ ~ +40℃
- Size(L x W x D):484 x 88 x 447mm (19' width, 2U)
- Warranty:3 Years

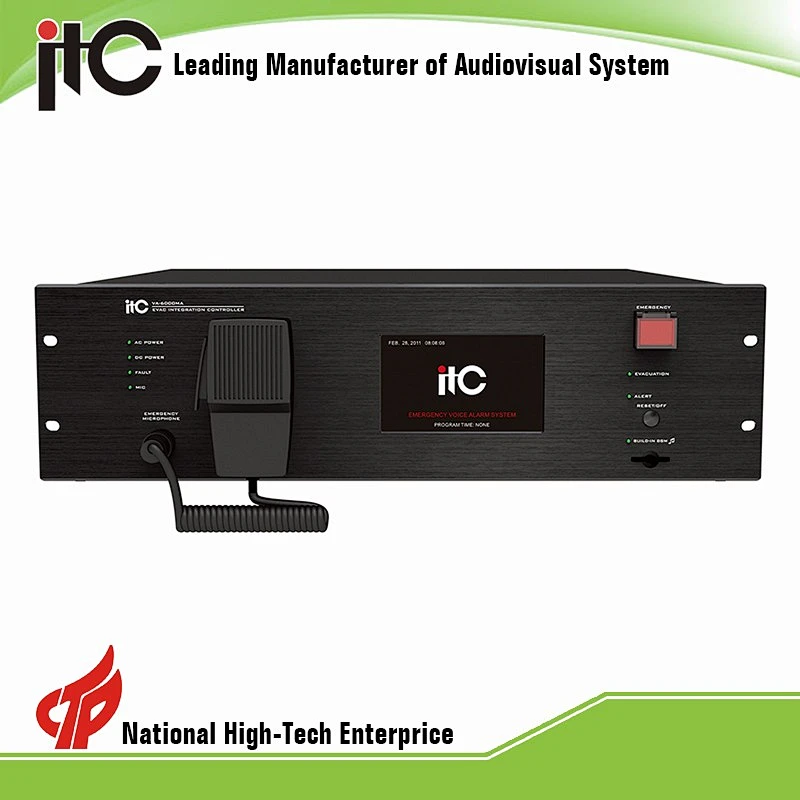

Emergence VA PA System Solutions Evac System with 16 Zones
Your Preferred Choice for Economical Public Address System
It’s the integration of fire alarm broadcast,business broadcast and background music broadcast. It runs on both LAN and WAN. Digital transmission solves the problem of signal attenuation and environmental electromagnetic interference during the long distance. What’s more, it’s easy for contractors to be installed, for the system adopts common network structure.

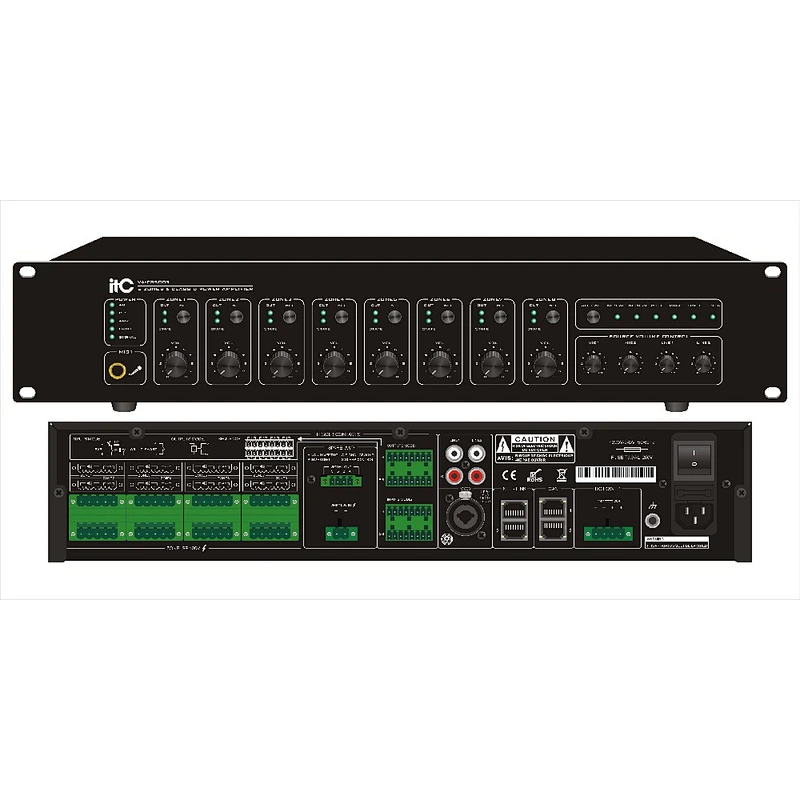

1)VA-P8500S 8 Channel Power Amplifier

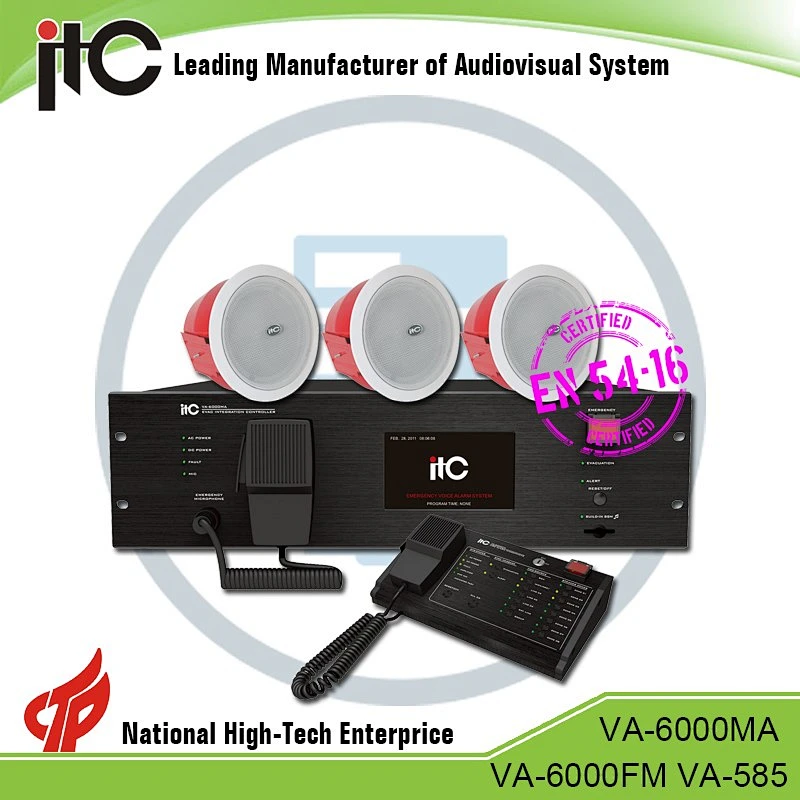

2)VA-6000MA Digital Voice Alarm Public Address System Controller

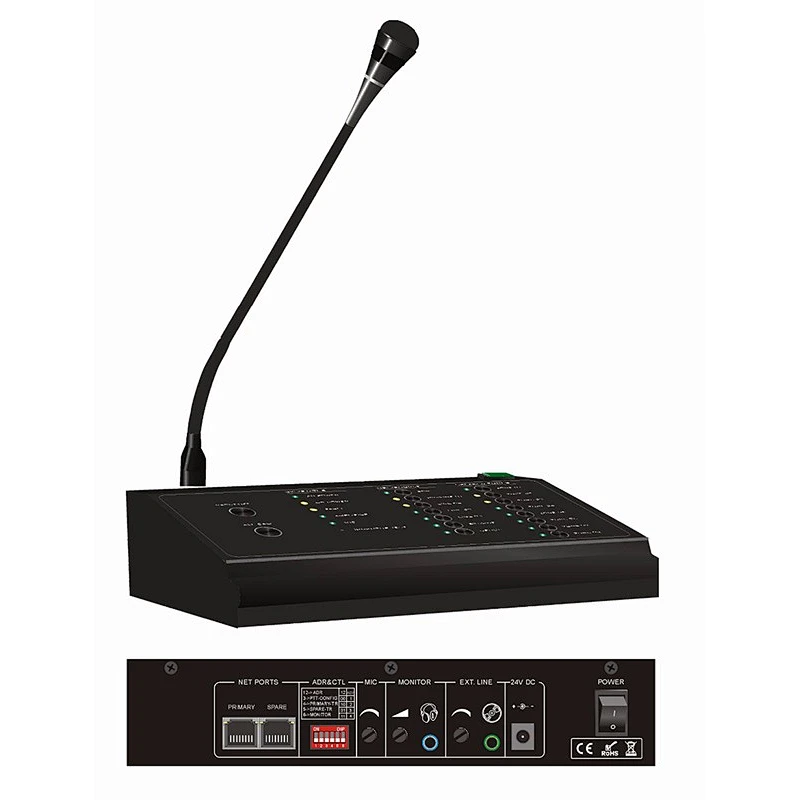

2)VA-6000RM Remote Paging Microphone
4)VA-6000MS 8 Channel Amplifier Changeover
Features
1)Integration of Fire Alarm Broadcast and Public Address System
The whole system provides function of scheduled program broadcast, evacuation message broadcast, programmable business message broadcast, scheduled background music broadcast and so on.
2) Latest Tech. & Reliable Design
To Adopt ASD system to diagnosis fault automatically; To adopt SIM speaker line auto detection; To adopt DLB automatic redundancy technology.
3)Based on Both LAN & WAN
Users only need to use CAT 5 cable to build up the whole system.
4)To Adopt CAN BUS
CAN BUS linkage port is distributed in the host, amp changeover, zoning amplifier and the linkage port is up to 592 so that it’s easy to work with third-party system and to be installed.
5)Real Time Monitor of Operating and the storage event log ≤2000
6)With User-friendly Interface in Touch Screen
Users control the whole system via the touch screen. When the emergency happens, users only need to press 1 button to do paging which ensure fast response speed.
7) Flexible Partition Collocation
The controller could output 255 channel matrix-style audio signal which could build up system including 56 power partition and 255 signal partition. It’s satisfied solution for small to large projects.
8)Digital Amplifier to Ensure Hi-fi Sound Quality
Systemdiagram
Model | VA-P8500S |
AC Power | |
Voltage | ~220-240V 50/60Hz |
Maximum Current | 3A (Exclude the 4 wire override output) |
Fuse Size | 250V/6.3A, slow type |
DC Power | |
Voltage | 24V DC, ±20% |
Maximum current | 27A(Exclude the 4 wire override output) |
Power Consumption | 650W |
Performance Index | |
Line Input | |
Distortion | <1% (Rated output power),1KHz |
Frequency | 80Hz~20KHz |
Sensitivity | 775mV |
Impedance | 10KΩ |
S/N Ratio | >70dB |
Emergency Mic | |
Sensitivity | 5mV |
Impedance | 600Ω |
Contact Output | |
8 Channels Programmable Relay Output | Short Circuit, No voltage |
8 Channels Programmable Trigger Input | 8 channels programmable trigger input |
Level Mode | Max 3.3V |
Short Circuit Mode | No voltage, short circuit. |
Cooling Mode | Air-Cooled |
Protection Mode | Delay/Overheat/Short Circuit/Over Load |
Machine Index | |
Dimension | 484 x 88 x 447mm (19' width, 2U) |
Weight | About 11.5Kg |
Installation | Desktop or 19 inch cabinet |
Color | Black |
Environment Requirements | |
Operation Temperature | +5℃ ~ +40℃ |
Storage Temperature | -20℃ ~ +70℃ |
Relative Temperature | <95% (No condensation) |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
