- Distortion:<1% (rated power output), 1KHz
- Frequency Response:200Hz to 16KHz
- Sensitivity:775mV
- Impedance:10KΩ
- SNR:>70dB
- Voltage:~ 230V, 50/60Hz
- Max. current:≤0.5A
- Fuse:250V/2A, slow type
- Power Consumption:44W
- Warranty:3 Years
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:VA-6500 C01

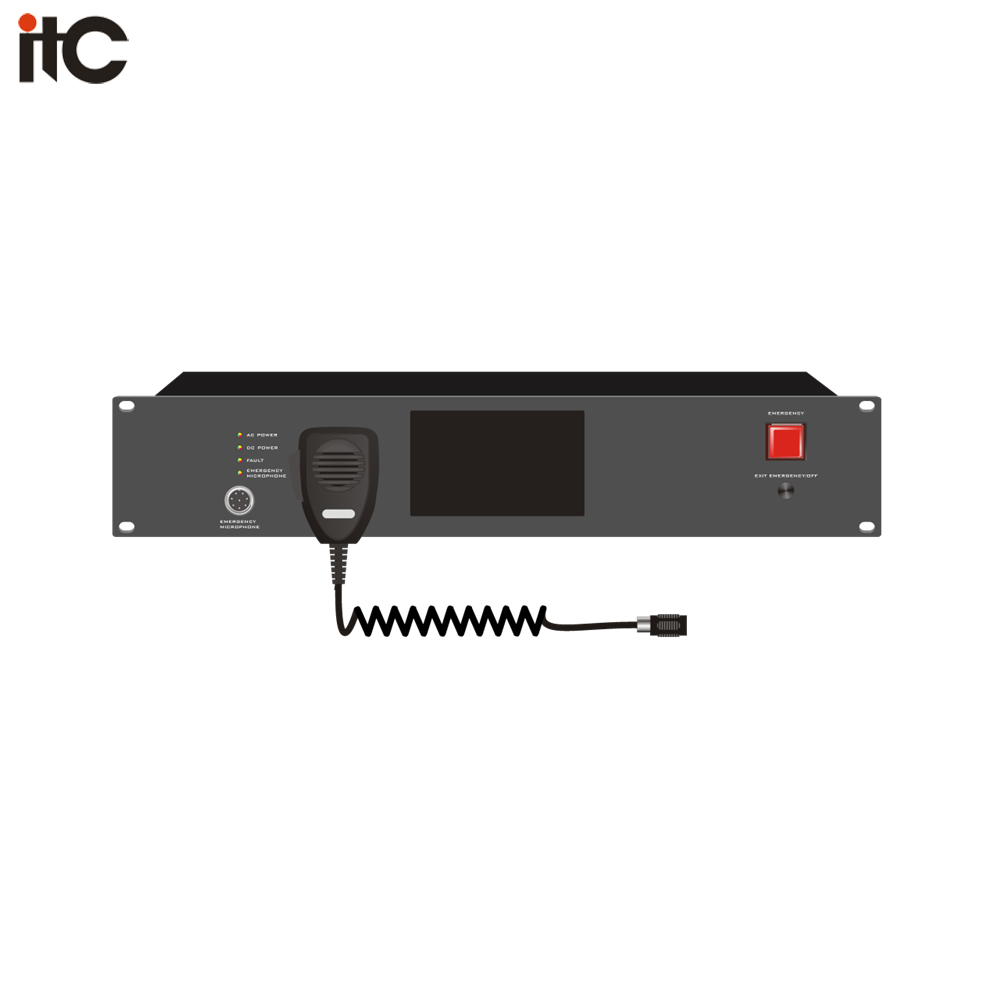

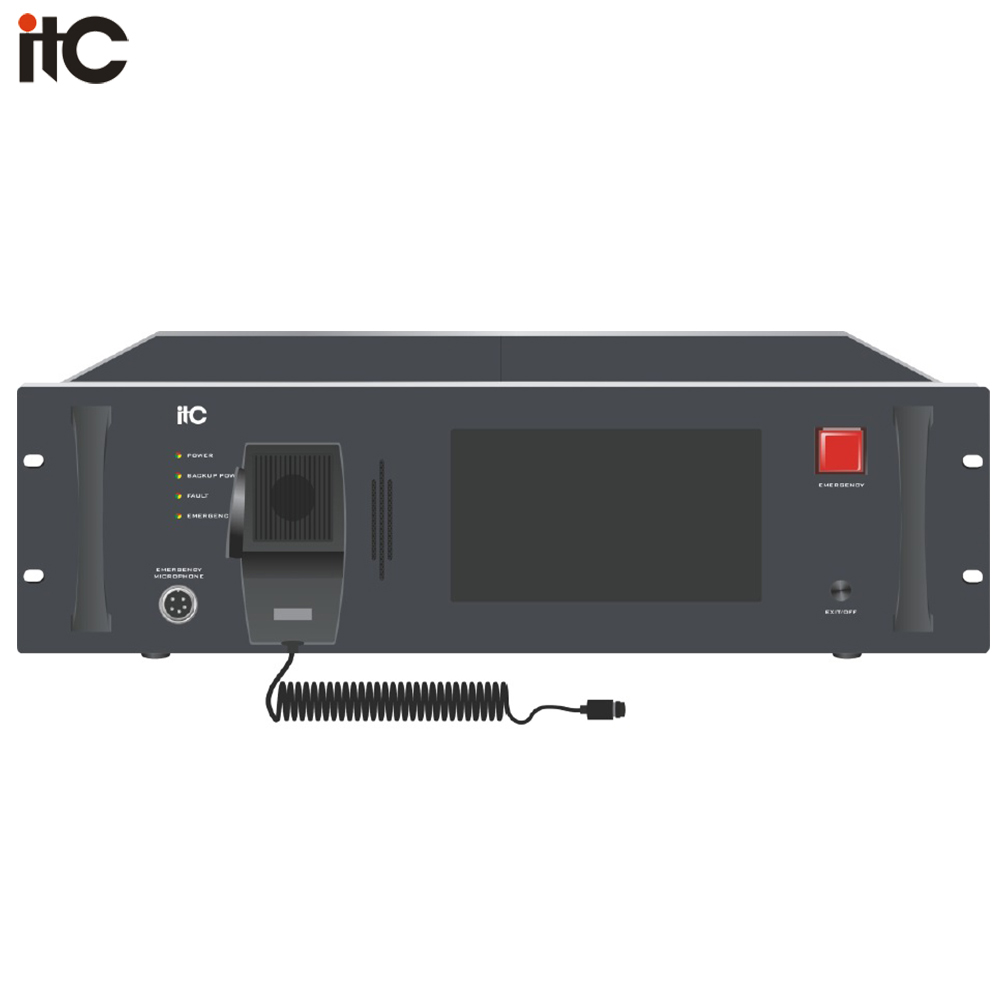

Broadcast Controller C01 VA-6500
* Indicator light function:
1.AC power-indicates the power supply status of AC power, green indicates normal; yellow indicates faulty.
2.DC power supply-indicates the power supply status of the standby DC power supply, the green indicates normal; the yellow indicates faulty; it is off and not configured.
3.Failure-Any device in the system fails, the yellow light flashes, and the built-in buzzer alarms at the same time; it is normal or not configured.
4.Emergency microphone-indicates the working status of the emergency microphone on the panel, the green indicates normal connection; the yellow indicates faulty; the red indicates emergency broadcasting.
* System status display: you can view the system operating status through the high-definition touch screen
* Emergency mode conversion: used to switch the playback of the emergency sound source; after pressing the emergency switch button, it will lights up in red and flashes.
* Failure silence/exit emergency mode: used to turn off the buzzer's prompt sound when the system fails, when a new failure occurs again, the failure indicator and prompt sound will resume prompt/the system exits the emergency mode
* Fire linkage input interface: 8-channel programmable fire linkage input interface, support short circuit trigger or short circuit trigger with detection; external linkage input device can be connected
* Fire linkage output interface: 8-channel programmable fire linkage output interfaces, the output type is relay short circuit output; external linkage equipment can be connected
* System status output/external reset, fault input: fire linkage interface, real-time output of the working status of the system, once the system fails and the fire alarm is triggered, the output interface will be in a short-circuit state. It is convenient to link other devices. The emergency state reset operation of the system can be performed through the external reset input, the input type is short-circuit input
* External audio input: external audio can be accessed through the combined audio input interface or line input interface; at the same time, the audio can be transmitted to different zones through the network to meet different occasions;
* Recording and output: send to the network through the network port
* Digital transmission technology transmission: self-developed digital transmission technology output module, supports up to 4 channels of audio input at the same time, 4 channels of audio output at the same time; audio sampling rate supports 8K, 16K, 24K,48K
* Audio source matrix: It can play any audio source in any zone, and the zone audio source can be automatically configured; at the same time, the audio source priority can be set, and the audio source priority can be customized
* Zone monitoring: the host has a built-in monitoring speaker, the size is 3 inches, the power is 10W, and the impedance is 8Ω; it can realize the terminal monitoring of any zone in the system, and the monitoring volume can be adjusted
* Manual/automatically play emergency broadcast: emergency broadcast can be controlled manually or automatically; the two are
prioritized, manual control is prior to automatic control
* System fault prompt: system fault has automatic sound and light prompt; fault prompt can be manually eliminated until a new fault occurs
* Equipment hardware self-inspection: It has the hardware self-inspection of sound and light parts and mechanical devices to ensure the normal use of hardware
* Automatic switching of main and standby power supplies: automatic switching of the main and standby power supplies, and the backup power supply is 24V DC power supply; the switching time is less than 1ms
* Audio source priority: emergency audio source has the highest priority and can be customized; all audio source priorities can be freely configured, and a maximum of 100 priority levels are supported
* Interface:
Front panel
1. Light indication: two-color plug-in LED light, red + green, combined into three colors: red, yellow and green, a total of 4,indicating the system status;
2. Emergency microphone interface and PTT: 1 channel, adopt a six-core aviation socket as the interface; PTT is a dynamic microphone, handheld, press-to-talk, 1.5m spring wire connection
3. High-definition touch screen: capacitive, 5-inch high-definition touch screen, the maximum resolution is 800 * 480
4. Emergency switch button: red, square, without self-locking function, with protective cover;
5. Buttons for fault mute and exiting emergency mode: located on the front panel, large buttons (10.8mm in diameter) to meet EN certification requirements;
1.AC power-indicates the power supply status of AC power, green indicates normal; yellow indicates faulty.
2.DC power supply-indicates the power supply status of the standby DC power supply, the green indicates normal; the yellow indicates faulty; it is off and not configured.
3.Failure-Any device in the system fails, the yellow light flashes, and the built-in buzzer alarms at the same time; it is normal or not configured.
4.Emergency microphone-indicates the working status of the emergency microphone on the panel, the green indicates normal connection; the yellow indicates faulty; the red indicates emergency broadcasting.
* System status display: you can view the system operating status through the high-definition touch screen
* Emergency mode conversion: used to switch the playback of the emergency sound source; after pressing the emergency switch button, it will lights up in red and flashes.
* Failure silence/exit emergency mode: used to turn off the buzzer's prompt sound when the system fails, when a new failure occurs again, the failure indicator and prompt sound will resume prompt/the system exits the emergency mode
* Fire linkage input interface: 8-channel programmable fire linkage input interface, support short circuit trigger or short circuit trigger with detection; external linkage input device can be connected
* Fire linkage output interface: 8-channel programmable fire linkage output interfaces, the output type is relay short circuit output; external linkage equipment can be connected
* System status output/external reset, fault input: fire linkage interface, real-time output of the working status of the system, once the system fails and the fire alarm is triggered, the output interface will be in a short-circuit state. It is convenient to link other devices. The emergency state reset operation of the system can be performed through the external reset input, the input type is short-circuit input
* External audio input: external audio can be accessed through the combined audio input interface or line input interface; at the same time, the audio can be transmitted to different zones through the network to meet different occasions;
* Recording and output: send to the network through the network port
* Digital transmission technology transmission: self-developed digital transmission technology output module, supports up to 4 channels of audio input at the same time, 4 channels of audio output at the same time; audio sampling rate supports 8K, 16K, 24K,48K
* Audio source matrix: It can play any audio source in any zone, and the zone audio source can be automatically configured; at the same time, the audio source priority can be set, and the audio source priority can be customized
* Zone monitoring: the host has a built-in monitoring speaker, the size is 3 inches, the power is 10W, and the impedance is 8Ω; it can realize the terminal monitoring of any zone in the system, and the monitoring volume can be adjusted
* Manual/automatically play emergency broadcast: emergency broadcast can be controlled manually or automatically; the two are
prioritized, manual control is prior to automatic control
* System fault prompt: system fault has automatic sound and light prompt; fault prompt can be manually eliminated until a new fault occurs
* Equipment hardware self-inspection: It has the hardware self-inspection of sound and light parts and mechanical devices to ensure the normal use of hardware
* Automatic switching of main and standby power supplies: automatic switching of the main and standby power supplies, and the backup power supply is 24V DC power supply; the switching time is less than 1ms
* Audio source priority: emergency audio source has the highest priority and can be customized; all audio source priorities can be freely configured, and a maximum of 100 priority levels are supported
* Interface:
Front panel
1. Light indication: two-color plug-in LED light, red + green, combined into three colors: red, yellow and green, a total of 4,indicating the system status;
2. Emergency microphone interface and PTT: 1 channel, adopt a six-core aviation socket as the interface; PTT is a dynamic microphone, handheld, press-to-talk, 1.5m spring wire connection
3. High-definition touch screen: capacitive, 5-inch high-definition touch screen, the maximum resolution is 800 * 480
4. Emergency switch button: red, square, without self-locking function, with protective cover;
5. Buttons for fault mute and exiting emergency mode: located on the front panel, large buttons (10.8mm in diameter) to meet EN certification requirements;
Interface:
Front panel
1. Light indication: two-color plug-in LED light, red + green, combined into three colors: red, yellow and green, a total of 4,indicating the system status;2. Emergency microphone interface and PTT: 1 channel, adopt a six-core aviation socket as the interface; PTT is a dynamic microphone, handheld, press-to-talk, 1.5m spring wire connection
3. High-definition touch screen: capacitive, 5-inch high-definition touch screen, the maximum resolution is 800 * 480
4. Emergency switch button: red, square, without self-locking function, with protective cover;
5. Buttons for fault mute and exiting emergency mode: located on the front panel, large buttons (10.8mm in diameter) to meet EN certification requirements;

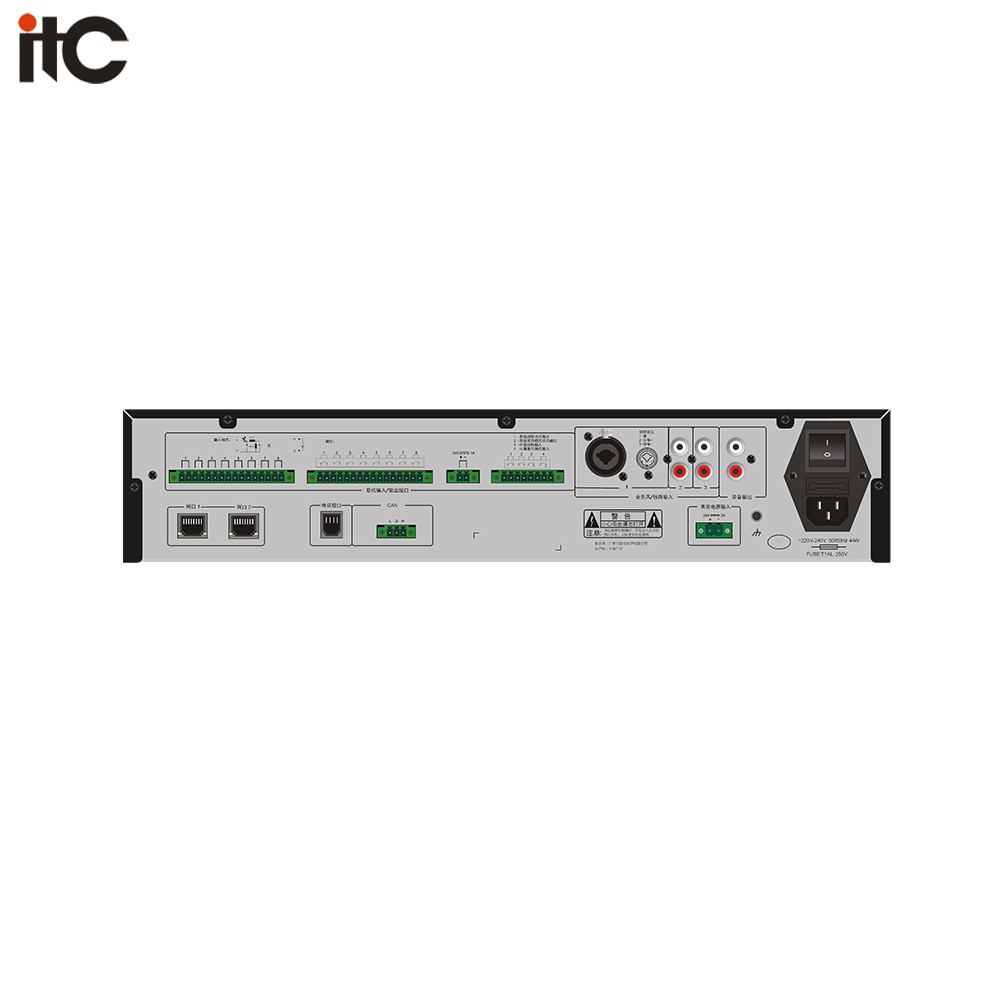

Rear panel
1. Input interface: conventional terminal, spacing 3.81mm, double 8 channels, 16 channels in total; dry node trigger, input
type is short circuit trigger/short circuit trigger with detection;
2. Output interface: conventional terminal, spacing 3.81mm, double 8 channels, total 16 channels; output type is relay short circuit output, supporting maximum current 2A.
3. Power output interface: conventional terminals, 3.81mm pitch, output voltage 24V, maximum power support 1A
4. System status output interface/reset, external fault input interface: status output: conventional terminal, spacing 3.81mm, 2 bits; output type relay short-circuit output, support maximum current 2A; external fault (in order to meet EN certification, it can be linked to a third party charger), reset input: conventional terminal, spacing 3.81mm, 1 bit; emergency reset operation can be performed on the system through external reset input, input type is short circuit input
5. Combination audio input interface: 1 channel, supporting standard XLR balanced input audio and 6.35mm sophomore microphone input. The XLR input sensitivity is 375mV. The microphone input sensitivity is 10mV. The combined audio is defined as"Line 1", and the audio source should be selected as"Line 1"when playing the audio input through the combined socket
6. Line input interface: 2 channels, using standard RCA input, the input form is unbalanced input. The input sensitivity is
775mV; it is defined as"Line 2"and"Line 3".
7. Monitor output interface: 1 channel, using standard RCA output, the output form is unbalanced output; defined as"recording output"
8. Network interface: 2 channels, standard RJ45 interface; panel definition is"LAN1","LAN2"; LAN1 is the external network interface of the host, and LAN2 is the voice network transmission interface.
9. Telephone interface: 1 channel, standard RJ11 interface, defined as"telephone interface"; CAN interface: 1 channel,
conventional terminal, 5.08 pitch, silk screen definition"L","H","G"; communication method is the main device mode
10. Backup power interface: input voltage 20-28V, maximum input current 2A. With overload protection and reverse polarity protection; when the main and standby power sources are connected at the same time, the main power source is used first
11. Grounding terminal: nickel-plated copper column, with flat gasket, with nut
12. Power interface: the input is AC110-240V.50-60Hz, and the supporting fuse is 250V 2A
type is short circuit trigger/short circuit trigger with detection;
2. Output interface: conventional terminal, spacing 3.81mm, double 8 channels, total 16 channels; output type is relay short circuit output, supporting maximum current 2A.
3. Power output interface: conventional terminals, 3.81mm pitch, output voltage 24V, maximum power support 1A
4. System status output interface/reset, external fault input interface: status output: conventional terminal, spacing 3.81mm, 2 bits; output type relay short-circuit output, support maximum current 2A; external fault (in order to meet EN certification, it can be linked to a third party charger), reset input: conventional terminal, spacing 3.81mm, 1 bit; emergency reset operation can be performed on the system through external reset input, input type is short circuit input
5. Combination audio input interface: 1 channel, supporting standard XLR balanced input audio and 6.35mm sophomore microphone input. The XLR input sensitivity is 375mV. The microphone input sensitivity is 10mV. The combined audio is defined as"Line 1", and the audio source should be selected as"Line 1"when playing the audio input through the combined socket
6. Line input interface: 2 channels, using standard RCA input, the input form is unbalanced input. The input sensitivity is
775mV; it is defined as"Line 2"and"Line 3".
7. Monitor output interface: 1 channel, using standard RCA output, the output form is unbalanced output; defined as"recording output"
8. Network interface: 2 channels, standard RJ45 interface; panel definition is"LAN1","LAN2"; LAN1 is the external network interface of the host, and LAN2 is the voice network transmission interface.
9. Telephone interface: 1 channel, standard RJ11 interface, defined as"telephone interface"; CAN interface: 1 channel,
conventional terminal, 5.08 pitch, silk screen definition"L","H","G"; communication method is the main device mode
10. Backup power interface: input voltage 20-28V, maximum input current 2A. With overload protection and reverse polarity protection; when the main and standby power sources are connected at the same time, the main power source is used first
11. Grounding terminal: nickel-plated copper column, with flat gasket, with nut
12. Power interface: the input is AC110-240V.50-60Hz, and the supporting fuse is 250V 2A
Products Description
Recommend Products
Company Profile
About ITC
Guangzhou Baolun Electronic Co.,Ltd (ITC) was founded in 1993,with more than 500 professional engineers for different systems in R&D center and more than 3.000 staffs in total. We are professional manufacturer for audiovisual (PA system, speaker, amplifiers, LED screen, Conference system and etc.) & lighting products. ITC has strict quality control, SMT production lines and imported raw materials from international brands, products comes with CE,RoHs,EN54,ISO,CCC certificates, meet Europe standard. Our products are exported to all over the world with good reputation. ITC successful cases exceed 1,000,000 all over the world.
Certifications

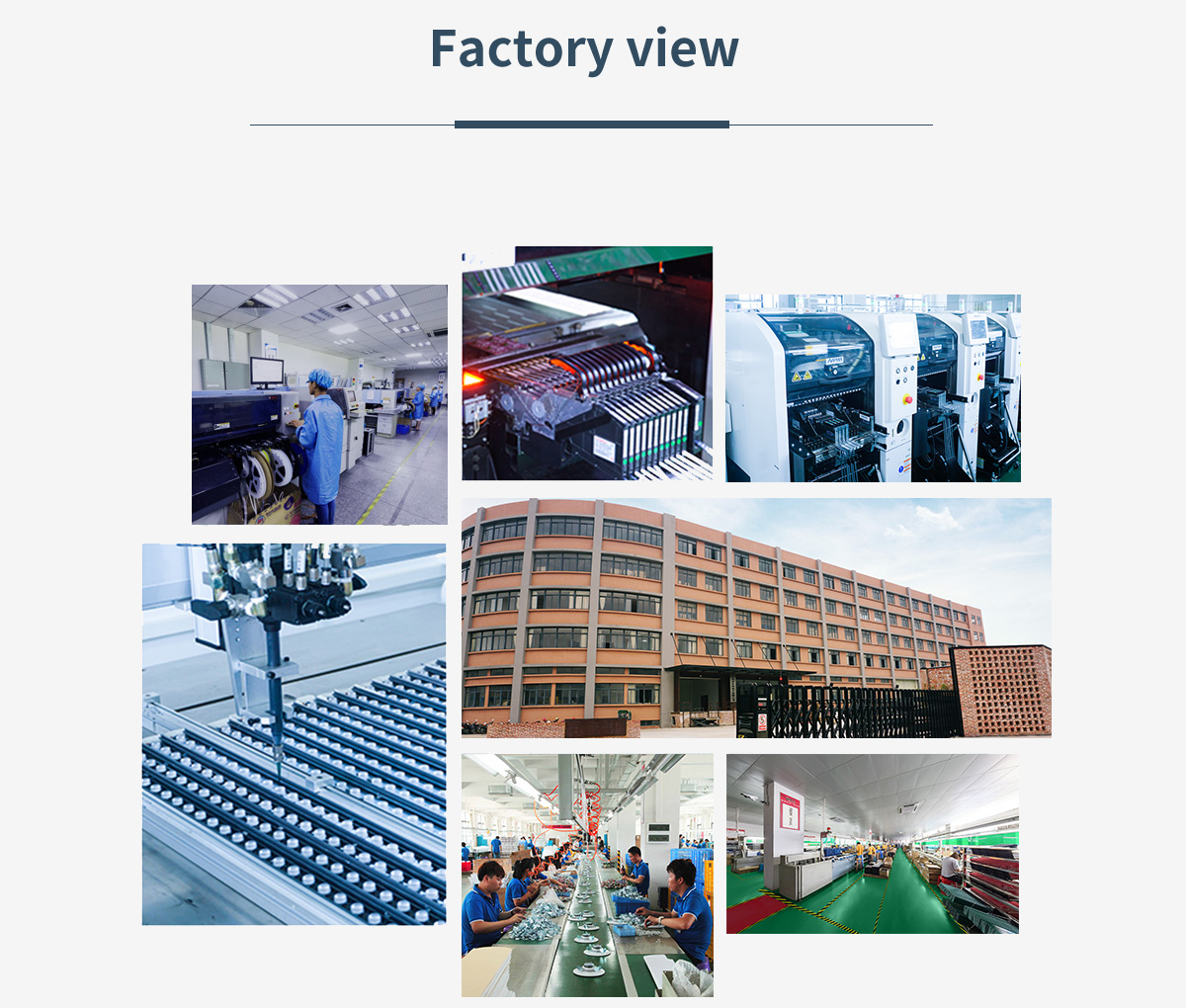

ITC Factory
