- Place of Origin:CN;GUA
- Model Number:VA-6000FM
- Brand Name:ITC
- Usage:Emergency
- DC Power Supply:>70dB
- DC Max. Current:0.1 A
- DC Power Comsumption:2.4W
- THD:<1%
- Frequency:80Hz~16kHz
- Sensitivity:500mV
- Impedance:10k ohms
- S/N Ratio:>70dB
- Demension:256*52*149mm
- Weight:1.5kg

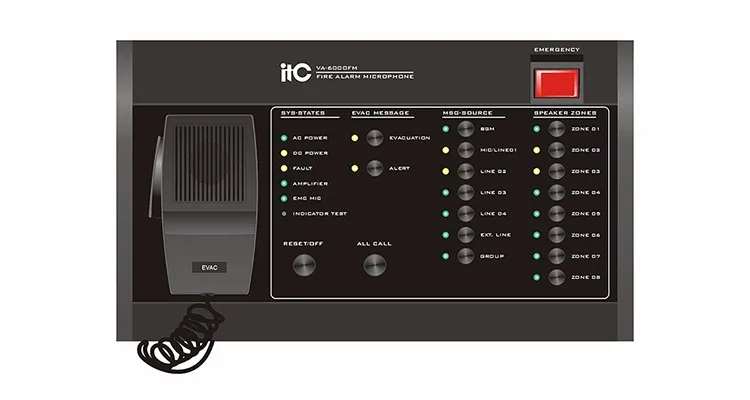

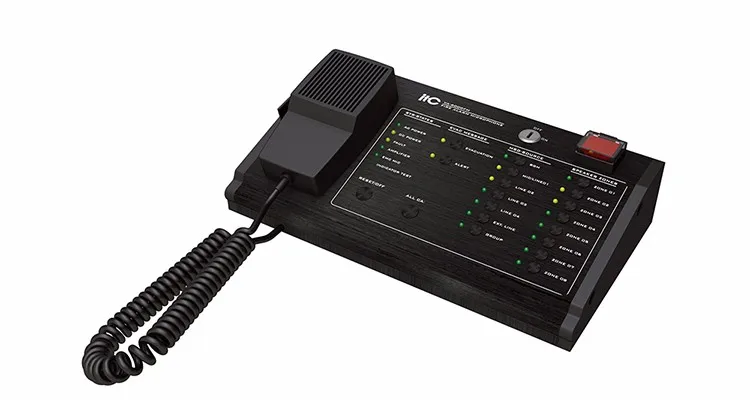

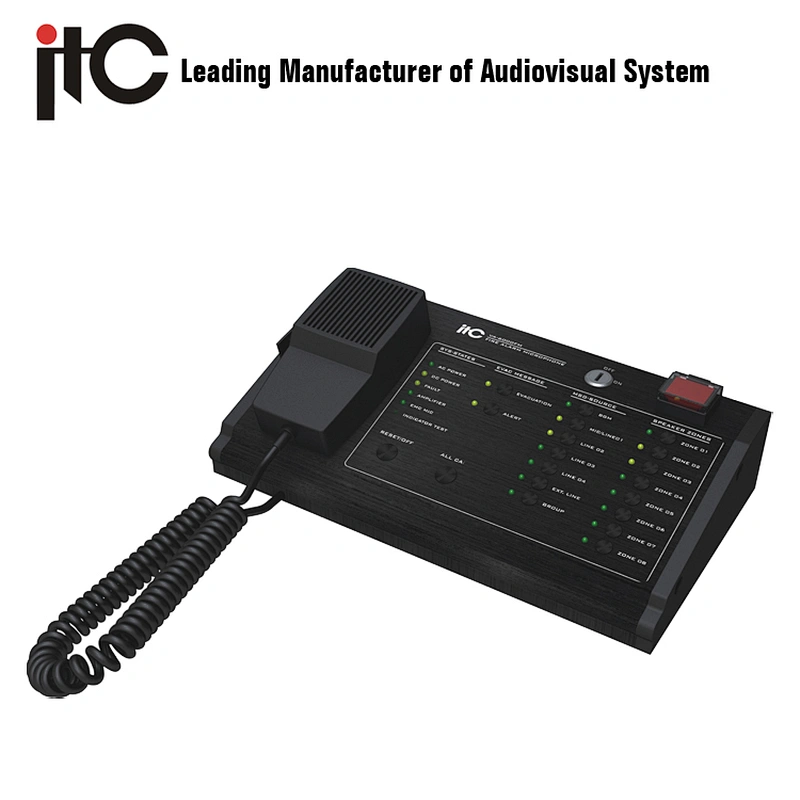

ITC VA-6000FM LAN Based Easy Operation 8 Zone Alarm Control Panel
VA-6000FM could control emergency voice alarm system remotely. It allows users to select the voice message and do zoning paging. It supports 8 zones/groups and it could be expanded via expansion unit. It could do cascade with up to 7 expansion units and each unit support 8 zones so that the Max. quantity of zone is 64.
Features
- Easy operation.
- It’s connected to the host via CAT5 so that the transmission distance is much longer.
- Complete indication to display the system fault and the status of main modules.
- Support zone expansion.
- With line input and it has volume control.
- Support spare line.
- Could be powered up by phantom power at 24V.
Function
- Mic output is with volume control.
- Its priority could be adjusted by the matching software VA-6000ST.
- Built in Hifi speaker to do monitoring.
- A hot key to trigger emergency PA status
- With earphone jack to do monitoring and recording.
DC Supply | |
Power Supply | 24V DC, ±20% |
0.1 A(including extension unit) | |
Power Comsumption | 2.4W(including extension unit) |
Perfermance | |
Parallel Signal Output | |
THD | <1%(rated output power),1kHz |
Frequency | 80Hz~16kHz |
Sensitivity | 500mV |
Impedance | 10kΩ |
S/N Ratio | >70dB |
Line In | |
THD | <1%(rated output power),1kHz |
Frequency | 80Hz~16kHz |
Sensitivity | 350mV |
Impedance | 10kΩ |
S/N Ratio | >70dB |
Microphone | |
Sensitivity | 5mV |
Impedance | 600Ω |
Machine | |
Demension( L×W×D ) | 256×52×149mm |
Net Weight | 1.5kg |
Mounting | Desktop or 18 inch cabinet |
Color | Black |
Environment | |
Operation Temperature | +5°C ~ +40°C |
Storage Temperature | -20°C ~ +70°C |
Relative temperature | <95%(no condensation) |
