- Place of Origin:CN;GUA
- Model Number:VA-6000RC
- Brand Name:ITC
- Usage:Fire and Smoke
- Certification:CCC, CE, RoHS, ISO9001, ISO14001
- Voltrage:~ 230V,50/60Hz
- Max Current:<0.1 A
- FUSE size:250V/0.5A, slow type
- voltage:24V DC, ±20%
- power dissipation:5W

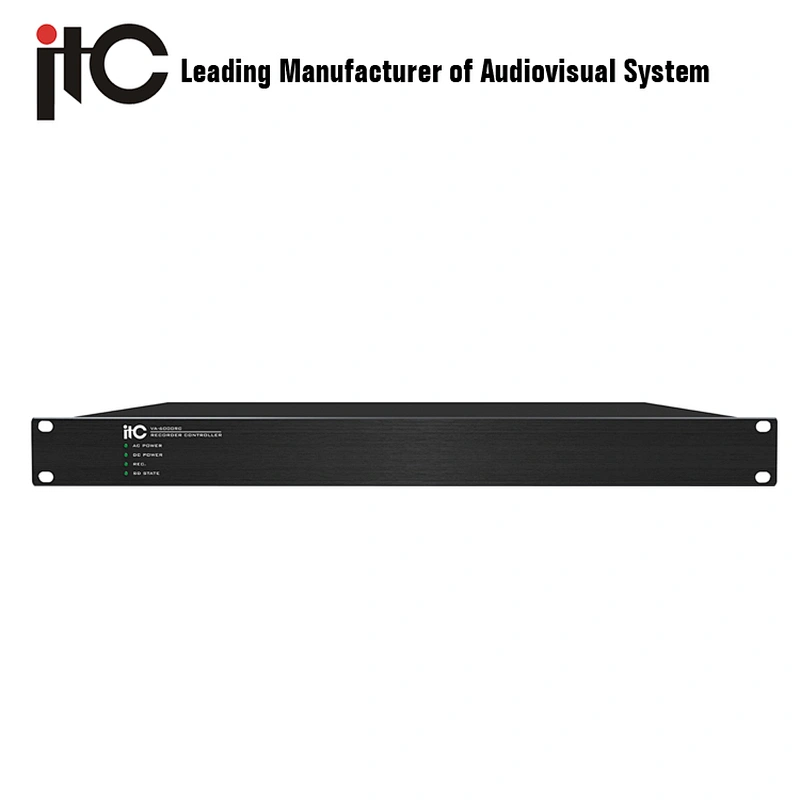

VA-6000RCVoice Recorder for EVAC System
VA - 6000 RC shall be used for working with main controlling system to record calling content of Mic , which provides a scientific basis for the subsequent accident responsibility, and provides two control methods of both CAN trunk protocol and relay contact; Audio files are stored in SD card and the max memory space will be 32G.
Feature
Voice Recorder for EVAC System
1. Supporting long time, loop recording, automatically overwriting the oldest audio file when there is no storage space.
2. Supporting two control methods of both CAN trunk and relay contact
3. External storage, convenient file accessing;
4. SD card connection state detection
5. The recording files can play by ordinary player and no need professional players
Function
Voice Recorder for EVAC System
*One recording audio input; Receiving audio recording from VA – 6000MA and keeping into the SD card; it can recordcyclically for a long time and cover the recording file automatically
* VA-6000MA controls the recorder to start or end the record by CAN trunk or the external short circuit or without voltage signal.
*Backup DC24V power input; can driveled by DC 24V power provide by VA-6000BC
Specification
AC power | |
Voltrage | ~ 230V,50/60Hz |
Max Current | <0.1 A |
FUSE size | 250V/0.5A, slow type |
DC power | |
Voltage | 24V DC, ±20% |
Max current | Less than 0.2 A |
Power dissipation | 5W |
Performance index | |
unbalance input | |
Distortion | <1%(RMS),1kHz |
Frequency | 20Hz~20kHz |
Sensitivity | 385mV |
impedance | 10kΩ |
Noise Ratio | >70dB |
contactinput | |
Relay programmable output | Short circuit, no voltage |
cooling method | |
Protectionmethod | overcurrent |
Mechanical Specifications | |
Dimensions(L*W*D) | 484×88×447mm (19,2U) |
weight | about 2.5kg |
Installation | Desktop or 19 inch rack |
color | black |
environmental requirement | |
operation temp | +5°C ~ +40°C |
storage Temp | -20°C ~ +70°C |
relative temp | <95%no condensation |
1——19 inch rack positioning hole
2——:main power indicator
1,Green-main power supply Normal
2,Yellow- main power supply malfunction
3——Spare DC 24V power indicator
1,Green—spare power supply normal
2,Yellow—cannot detect spare power
4—Device recording state indicator
1,Green-- in the recording mode
2,yellow—out of recording mode
5——SD cards connection state indicator
1,Green- connection on
2,Yellow- connection off
Back panel
1——Equipment connector
2——(>=0.5S);relay contact control interface
3—SD cards outlet
4——Record audio input
5——Spare 24V power input connector
6——power switch
7——AC220V power outlet
8——Attention: Be sure that this );Device earth terminal
