- Place of Origin:CN;GUA
- Usage:Indoor
- Display Function:Video
- Screen Dimension:Customized Size
- Model Number:TV-PH125-Y
- Brand Name:ITC
- Tube Chip Color:Full Color
- Pixels:1.25mm
- Product Name:led display screen
- LED Encapsulation:1010 black face LED
- Pixel pitch (mm):1.25
- Density:640000 dot/m2
- Brightness:800-1000 CD/m2
- Refresh rate:3840HZ
- Drive mode:27S constant current drive
- Grey level:16BIT/281 trillion
- Power (W):<1200W/㎡
- Panel size (mm):480 * 270

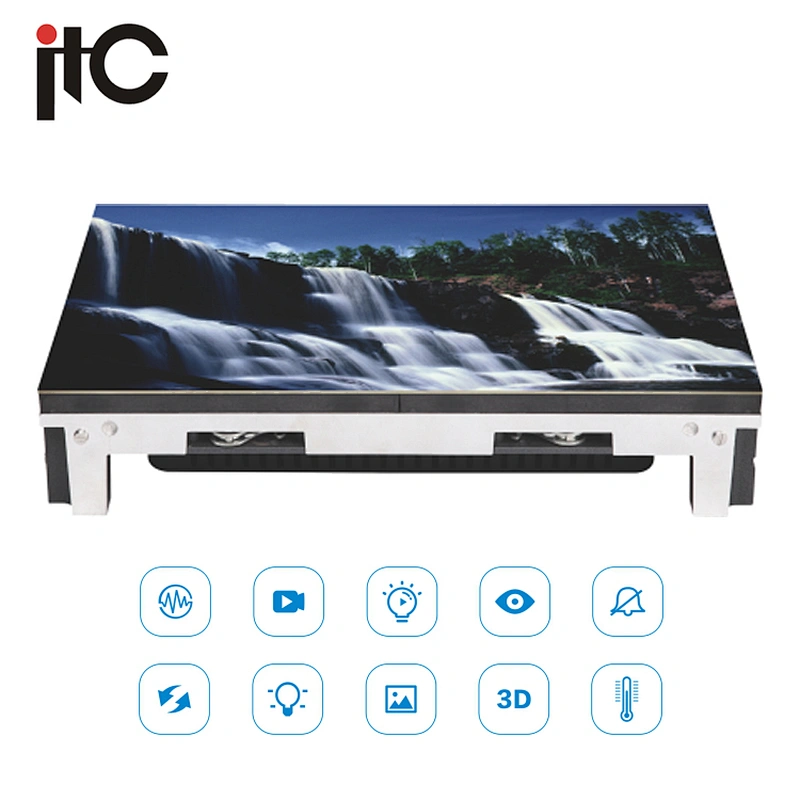

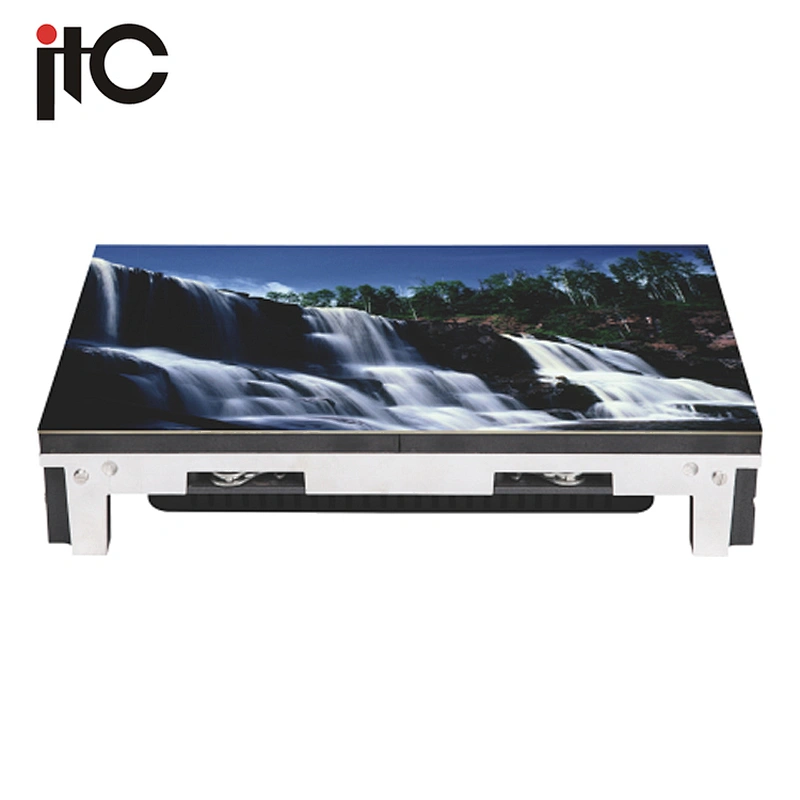

Factory Price Fine Pitch Concert Stage Led Display Screen
Model | TV-PH125-Y |
LED Encapsulation | 1010 black face LED |
Pixel pitch (mm) | 1.25 |
Physical density (spots / m2) | 640000 |
White balance brightness (CD / m2) | 800-1000 |
Frame Frequency(HZ) | 60 |
Refresh frequency (HZ) | 3840 |
Grey level / color | 16BIT / 281 trillion |
Viewing angle (horizontal, vertical) | 160 °/ 160 ° |
Best viewing distance (m) | 3.75 |
Power (W) | <1200W / m2 |
panel size (mm) | 480 * 270 |
panel Resolution (Pixels) | 384 * 216 |
Working voltage (AC) | 220V ± 10% / 50HZ or 110V ± 10% / 60HZ |
Drive mode | 27Sconstant current drive |
Signal type | Compatible with PAL / NTSC / SECAM format, support for S-Video; VGA; RGB; Composite Video; SDI; DVI; RF; RGBHV; YUV; YC, etc. |
Working temperature | Storage -35℃~ +85 ℃ |
Working temperature | Work -20℃~ +50℃ |
Control distance | Cat 5 cable: <100m; |
Features
* Elegant
panel ratio 16: 9, is the human eye pupil ratio, visual enjoyment ,Elegant and fashion.
* Precise
Die casting, CNC secondary finishing, only for control the 0.1mm tolerance, flatness and splicing gap less than 0.1mm.
* Wide view
Ultra-wide viewing angle, LED screen’s viewing angle up to 160°, display is clear, uniform and
natural, all kinds of angles can get high-quality display effect.
* Handiness
Magnesium aluminum die-casting molding, single panel with lighter weight, easy carry, quick
installation, and save labor cost.
* High Display Quality
Use high quality black face LED to improve contract ratio.
* Reliable
Use high-quality high Grey level, high refresh rate constant current IC, to protect the LED, and
prevent circuit leakage.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
