- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:Full Color
- Display Function:Video
- Pixels:1.25mm
- Brand Name:ITC
- Model Number:TV-LP108-YX
- Screen Dimension:Customized Size
- Product Name:LED display Screen Tvs
- System Operating Platform:WIN2000
- Pixel pitch (mm):1.25
- LED package form:SMD1010 blacklight
- Light color:1R1G1B
- Gray Level /Color:281 Trillion
- Module resolution:160*120
- Module size (mm):200*150
- Maximum power consumption:2.1KW
- Application:Stage Performance, Advertising, Shopping Guide

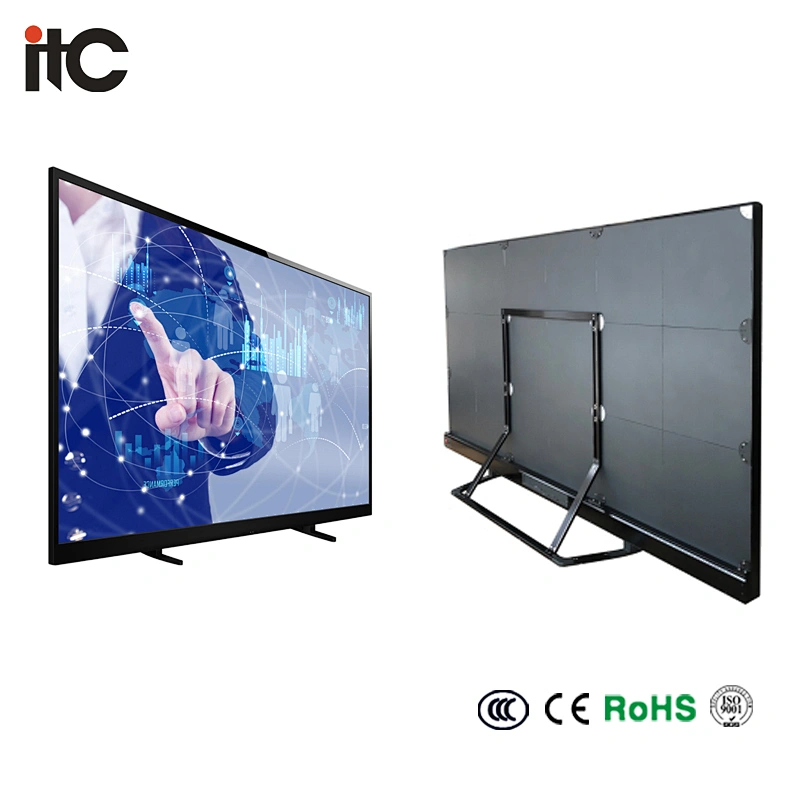

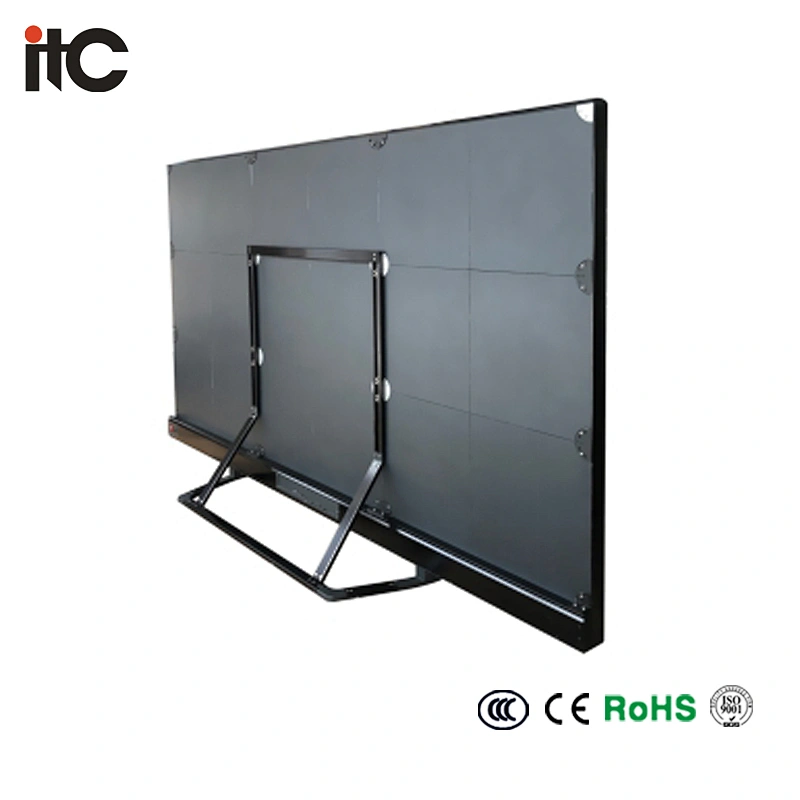

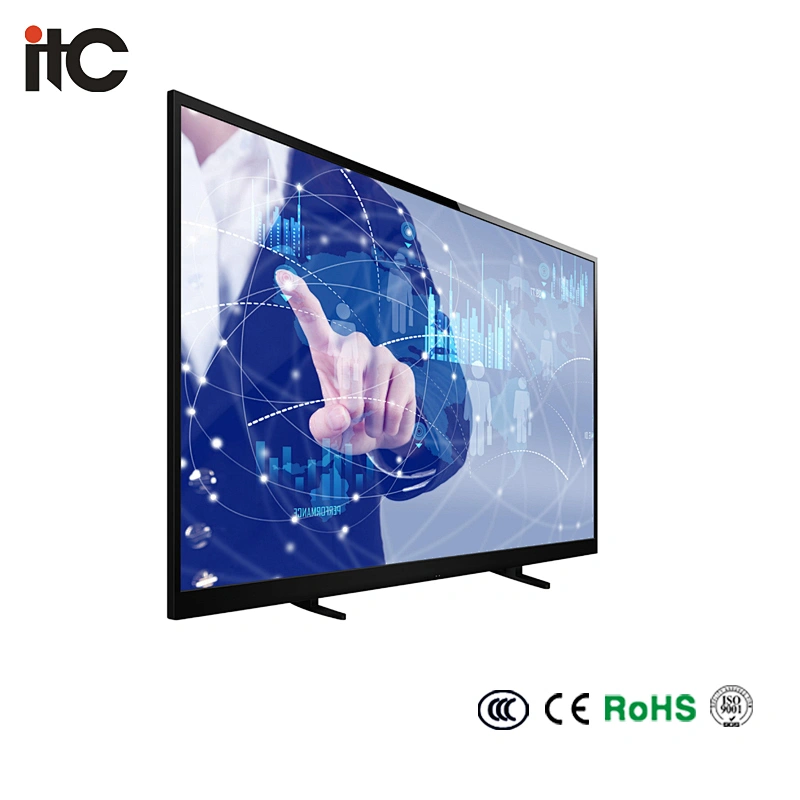

Wholesale Good Quality Narrow Frame Ultra-Thin HD LED display Screen Tvs
This LED TV is a product developed for commercial use (large, medium and small intelligent conferences,
smart classrooms, product launches, press,etc.). It has seamless, perfect display, long service life,
fast frame change speed and high refresh rate. , uniformity, wide viewing angle, high gray level,
natural color reproduction and so on.
| Module Specifications | |
| LED package form | SMD1010 blacklight |
| Physical pixel pitch | 1.25mm |
| Resolution | 640000dot/m2 |
| Lamp/IC | Nation Star/high refresh rate IC |
| Light color | 1R1G1B |
| Module resolution | 160*120 |
| Module size (mm) | 200*150 |
Unit board resolution | 320*360 |
| Panel resolution (Pixels) | 400*450 |
| Screen dimension (m) | 2.4*1.35 |
| Main parameter | |
| Best viewing distance | ≥3.75m |
| Horizontal viewing angle | 160° |
| Vertical viewing angle | 160° |
| Maintenance method | Front maintenance |
| communication method | wired,WIFI,4G,Bluetooth, infrared |
| control method | Synchronous control |
| Drive device | Constant current |
| Refresh rate | ≥3840Hz |
| Frame change frequency | ≥60HZ |
| scanning method | 30S |
| Brightness | 650CD/m2(adjustable) |
| Gray level /color | 281trillion |
| Contrast | 10000:1 |
| Attenuation rate (after working for 3 years) | ≤15% |
| Mean time between failures | ≥10000H |
| Lifespan | ≤100000H |
| Noise rate | ≤1/10000 and no continuous runaway dot |
| Ambient temperature | Storage -35°~+85°,Operation -20°~+50° |
| Working voltage (AC) | 220V±10% |
| Power supply | DC-DC |
| Maximum power consumption | 2.1KW |
| Mounting box specifications | Die casting aluminum |
| Color uniformity | ≥97% |
| Protection level | IP5X |
Features
* It adopts full-die casting ultra-thin panel splicing and fixed base (customizable portable base).
* Infrared touch function.
* seamless splicing
* The display panel is flexible, flat and smooth.
* The fault only needs to maintain a single LED pixel or module, easy maintenance ,low cost and high speed.
* With ultra-wide viewing angle display and the screen is still very clear at any viewing angle.
* With ultra high refresh rate, good screen consistency and high picture fluency.
* The image is delicate and realistic, and the gray level is still excellent under low brightness.
* Good protection performance, avoiding the influence of dust and other factors.
* Support PC, WIFI, 4G, Bluetooth, infrared control.
* Supports image correction, adopting gamma correction technology to achieve point-by point brightness and color correction.
* Support ultra HD display, using unique image quality enhancement technology to effectively improve
image clarity, high-speed picture smooth without smear.
* Supports the detection of operating environment temperature, humidity and brightness, automatically
adjusts
the brightness of the display, improves the comfort of the picture, and saves energy and electricity.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
