- Place of Origin:CN;GUA
- Usage:Indoor
- Display Function:Video
- Screen Dimension:Customized Size
- Model Number:TV-PM125
- Brand Name:ITC
- Tube Chip Color:Full Color
- Pixels:16mm
- Product Name:led video wall
- Pixel configuration:1R1G1B
- LED Standard:SMD1010
- Density:64000 point/m2
- Refresh rate:≥1920HZ
- Control method:Synchronous control
- Box Resolution:384X216
- Box size:480X270
- Driving method:1/27 Scanning
- Lifetime:≤ 100000H

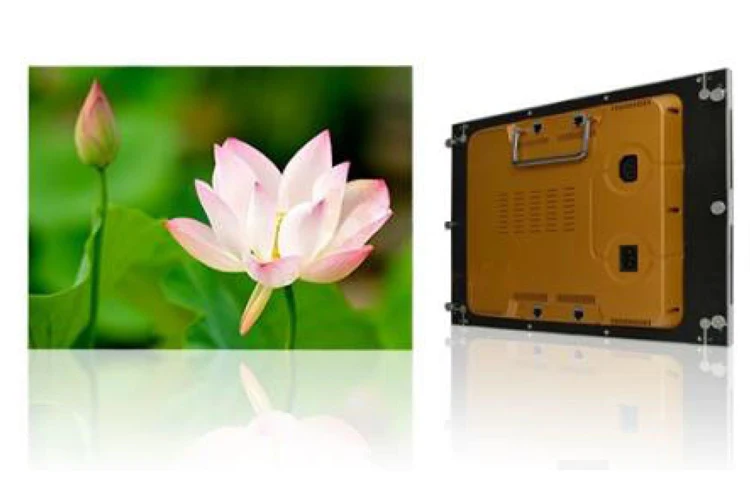

TV-PM125 Small Spacing Indoor Advertistig Led Display Screen Video Wall
Application places: outdoor advertising/outdoor stadium/outdoor stage
Function
1. Real-time monitoring the scene.
2. Propaganda purposes, playing a variety of advertising.
3. Replace the traditional TV.
4. Video conferencing.
Features
1. Seamless stitching: completely seamless stitching, stitching without visual black seam.
2. Screen correction: gamma correction technology, color brightness can be adjust point by point.
3. Intelligent light control: intelligent adjustment of brightness, improve picture definition, more energy saving.
4 Large viewing angle: wide viewing angle, larger visual range, screen image is very clear at any angle .
5. Super refresh: super refresh speed, picture, consistency better and more fluent.
6. Grayscale: low intensity grayscale still, fine and vivid pictures.
7. Ultra HD: unique image quality enhancement technology, effectively improve the image clarity, high-speed picture is still smooth without smearing.
8.3D: Integrated 3D, touchscreen and somatosensory games to enhance entertaining and interaction function.
Specification
Model | TV-PM125 |
LED Standard | SMD1010 |
Physical points distance(mm) | 1.25 |
Physical density | 64000point/m2 |
Pixel configuration | 1R1G1B |
Unit board resolution | 192*108 |
Unit board size(mm) | 240*135 |
Box resolution | 384*216 |
Box size (mm) | 480*270 |
Cabinet pixel number | 82944 point/cabinet |
Working Voltage(DC) | DC+4.2V~+5V |
Optimum viewing distance (m) | 3.75 |
Horizontal view angle | 140° |
Vertical view angle | 140° |
Maintenance mode | Maintenance before module |
Average power consumption | <960W/m2 |
Maximum power consumption | <2400W/m2 |
Display card | DVI/HDMI/DP |
Control method | Synchronous control |
Driving components | Constant current |
Driving method | 1/27 scanning |
Repetition frequency | ≥60HZ |
Refresh rate | ≥1920HZ |
Gray level/color | 281 Trillion |
White balance brightness(CD/m2) | 800-1000 |
Contrast | 3000:1 |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
