- Place of Origin:CN;GUA
- Usage:Indoor
- Tube Chip Color:Full Color
- Display Function:Video
- Pixels:1.875mm
- Brand Name:ITC

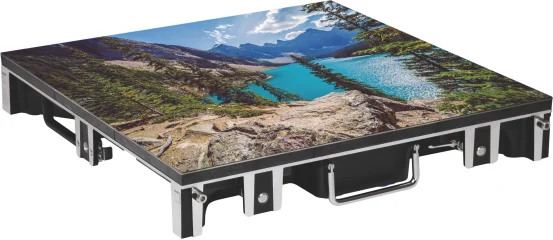

- Model Number:TV-PH187-Y
- Screen Dimension:Customized Size
- Product Name:led display screen
- LED Encapsulation:1515 black face LED
- Pixel pitch (mm):1.875
- Density:284440 dot/m2
- Brightness:800-1000 CD/m2
- Refresh rate:3840HZ
- Drive mode:32S constant current drive
- Driving components:Constant current
- Power (W):<70W/m2
- Panel size (mm):480*480

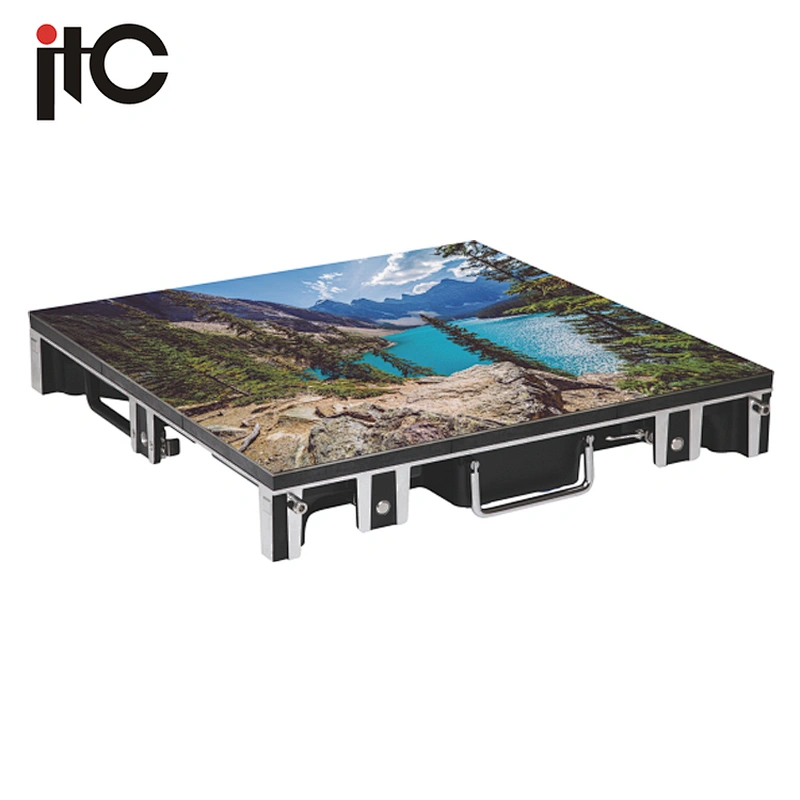

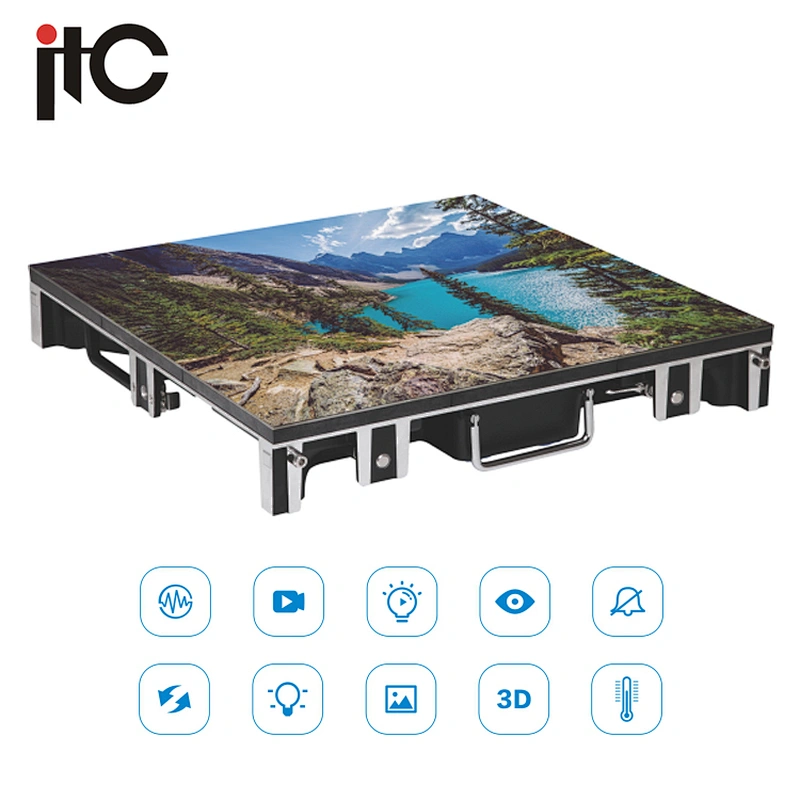

Customized Size Super Thin Video Wall Display P3.91 Full Color Led Screen Indoor Price
Model | TV-PH187-Y | TV-PH190-Y | TV-PH193-Y |
LED Encapsulation | 1515 black face LED | 1515 black face LED | 1515 black face LED |
Pixel pitch (mm) | 1.875 | 1.923 | 1.935 |
Physical density (dot / m2) | 284440 | 276666 | 270422 |
White balance brightness (CD / m2) | 800-1000 | 800-1000 | 800-1000 |
Frame frequency (HZ) | 60 | 60 | 60 |
Refresh frequency (HZ) | 3840 | 3840 | 3840 |
Grey level / color | 16BIT / 281 trillion | 16BIT / 281 trillion | 16BIT / 281 trillion |
Viewing angle (horizontal, vertical) | 160 °/ 160 ° | 160 °/ 160 ° | 160 °/ 160 ° |
Best viewing distance (m) | 5.5 | 5.7 | 5.8 |
Power (W) | <70W / m2 | <1000W / m2 | <700W / m2 |
Panel size (mm) | 480 * 480 | 480 * 480 | 480 * 480 |
Panel resolution (Pixels) | 256 * 256 | 252 * 252 | 248 * 248 |
Working voltage (AC) | 220V ± 10% / 50HZ or 110V ± 10% / 60HZ | ||
Drive mode | 32S constant current | 21S constant current | 21S constant current drive |
Signal type | Compatible with PAL / NTSC / SECAM format, support for S-Video; VGA; RGB; Composite Video; SDI; DVI; RF; RGBHV; YUV; YC, etc. | ||
Working temperature | Storage -35℃~ +85 ℃ | ||
Working temperature | Work -20℃~ +50℃ | ||
Control distance | Cat 5 cable: <100m; single-mode fiber: <10 km | ||
Features
* Seamless splicing: Magnesium aluminum die-casting molding, CNC secondary finishing, only for
control the 0.1mm tolerance, flatness and splicing gap less than 0.1mm., splicing gap less than 0.1mm.
* Screen calibration: Gamma correction technology enables point-bypoint brightness color
correction.
* Intelligent Light Control: Intelligent adjustment of brightness, improve picture comfort, more energy saving.
* Large viewing angle: the display screen can display a larger range; it is still clear from any angle to view the screen.
* Super-High refresh frequency: super-high refresh frequancy, better and smoother picture
coherence.
* Ultra-high Grey level: the Grey level is still excellent under low brightness; the screen isexquisite
and realistic.
* Ultra-HD: Unique image quality enhancement technology, to effectively improvetheimage
clarity;high-speed picture is still smooth without smearing.
* 3D: Integrated 3D, touch screen and somatosensory games enhance the entertaining and interaction.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
