- Place of Origin:CN;GUA
- Model Number:TS-9164AV/TS-9168AV/TS-9116AV
- Brand Name:ITC
- bandwidth:150MHz(-3dB)full loaded
- input signal:Composite video signal
- Input port:RCA(8 series), BNC(16-128 series )
- Input level:0.5Vp-p ~ 2.0Vp-p
- Input impedance:75Ω
- Output signal:Composite video
- Output port:RCA(8 series), BNC(16-128 series )
- Output level:0.5Vp-p ~ 2.0Vp-p
- Output impedance:75Ω
- RL:-30dB@5MHz

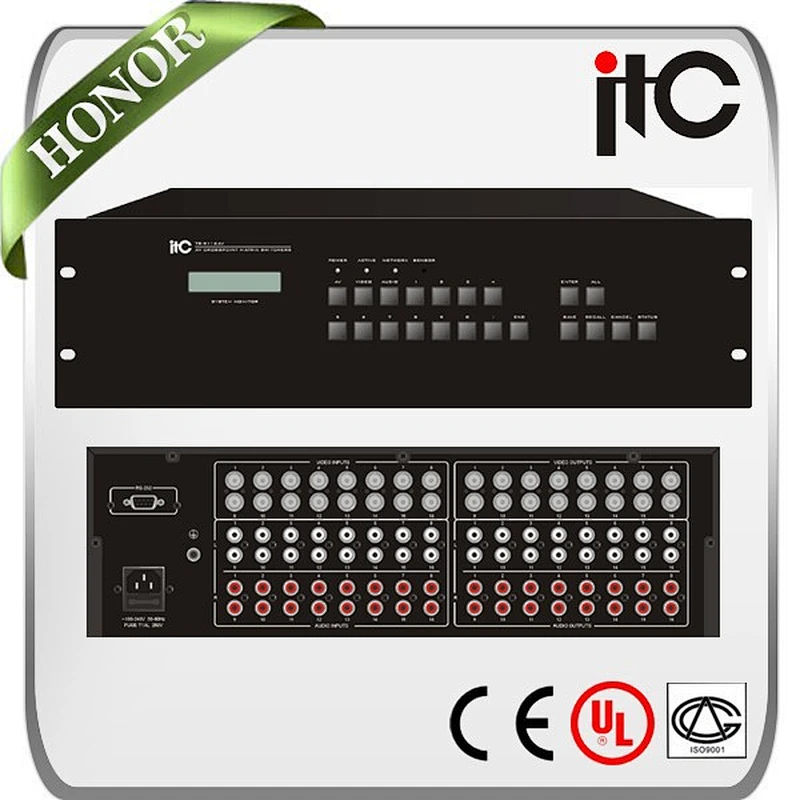

ITC AV 16 Series 16 in 4/8/16 out Composite Seamless Video Matrix Switcher
ITC AV 16 Series 16 in 4/8/16 out Composite Seamless Video Matrix Switcher
AV series professional matrix switchers are high-performance intelligent switch equipment, designed for display and distribution of composite video switching & analog audio signals. It switches the multi- channel input to any output channel, which is independent of each other. It allows video and audio synchronous or asynchronous switching.
AV series professional matrix switchers can be 24-hour standby and power down switching and memory protection. It can be connected with computer, remote control systems & devices by RS232 port.
AV series professional matrix switchers have full product lines, from AV8 to AV128 series. It is applied to any transmission for standard analog video and audio signals, widely used for multimedia conference, radio and television projects, command and control, etc.
ITC AV 16 Series 16 in 4/8/16 out Composite Seamless Video Matrix Switcher
* with 8/ 16 audio and video signal input, 2/4/8/16 channel output.
* With BNC & RCA Video interface; five Phoenix connector or RCA for audio.
* Video bandwidth height 150MHz (-3dB) full load.
* With multiple presets and save units, with power-down memory function.
* LCD display the switching operation status, can check the input/output channel connection
status with the panel keyboard.
* With infrared remote control and RS232 port.
* With fast switch for more efficient operation.
* Video signal types: composite video (signal).
* Audio signal types: stereo, balanced or unbalanced connection.
* With programmable logic array circuit and any interactive switch.
* Distortion compensation technology for long-distance signal transmission.
* Built- International General Electric.
Composite video signal | |
bandwidth | 150MHz(-3dB)full loaded |
input signal | Composite video signal |
Input port | RCA(8 series), BNC(16-128 series ) |
Input level | 0.5Vp-p ~ 2.0Vp-p |
Input impedance | 75Ω |
Output signal | Composite video |
Output port | RCA(8 series), BNC(16-128 series ) |
Output level | 0.5Vp-p ~ 2.0Vp-p |
Output impedance | 75Ω |
RL | -30dB@5MHz |
Synchronization standard | NTSC,PAL,SECAM |
Differential phase error | 0.1 %, 3.58-4.43MHz |
Differential gain error | 0.1 degree, 3.58-4.43MHz |
The analog audio signal | |
bandwidth | 150MHz(-3dB) full loaded |
input signal | stereo ( balanced or unbalanced) |
Input port | RCA or 3.8mm screw luck |
Input level (max) | +19.5dBu |
Input impedance | >10KΩ |
Output signal | stereo ( balanced or unbalanced) |
Output port | RCA or 3.8mm screw luck |
Output level (max) | +21dBu |
Output impedance | >50Ω |
Frequency response | 20Hz-20KHz, +0.05dB |
Noise ratio (S/N) | >90dB |
Stereo Channel Isolation | >80dB @ 1 kHz |
Common mode rejection ratio (CMRR) | >75dB @ 20 Hz ~ 20 kHz |
Equipment | |
propagation | 5nS ( ±1nS) |
Switching | 200nS ( maximum time ) |
Average | 50000hours |
Operating | -20~45℃ |
Operating | 10%~90% |
Supply | 100VAC~240VAC, 50/60Hz |
