- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:TS-9051
- Video Input:4 HDMI; 4VGA; 1YPbPr; 2 C-Video; 1 S-Video
- Video Output:1 HDMI; 1 VGA; 1 HDBaseT
- IR Input:1 IR In
- IR Output:5 IR Out
- Audio Input:6 Stereo audio for line audio; HDMI audio; 2 Mic
- Audio Output:Stereo Line Audio; 2*10W @8ohm
- Resolution:1920*1080; 1360*768; 1280*720; 1280*800; 1024*768
- Warranty:3 Years
ITC Fixed Mount Series HD Hybrid Audio Video Matrix Switcher
ITC Fixed Mount Series HD Hybrid Audio Video Matrix Switcher

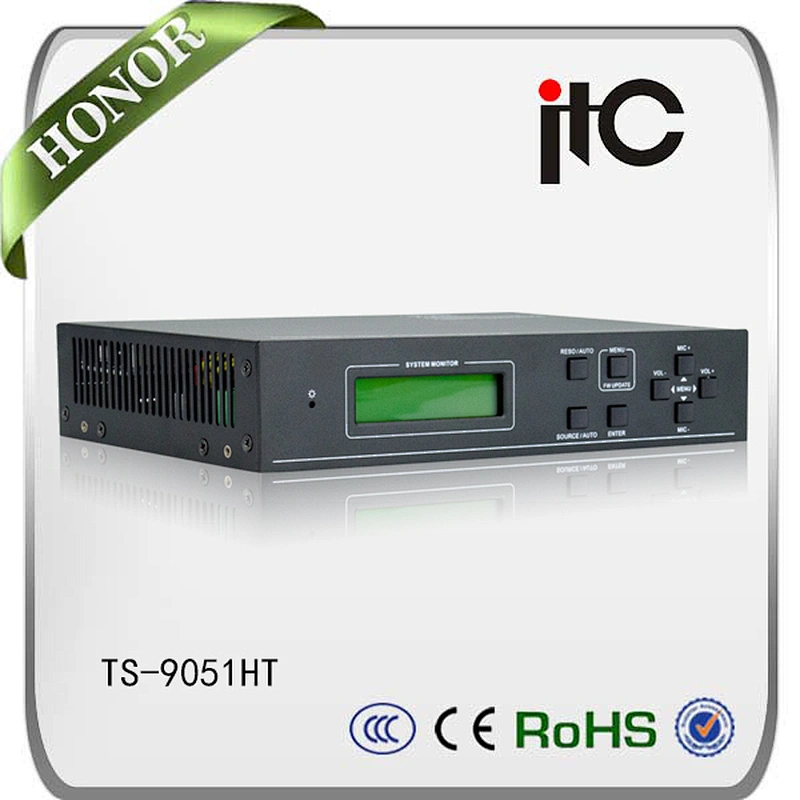

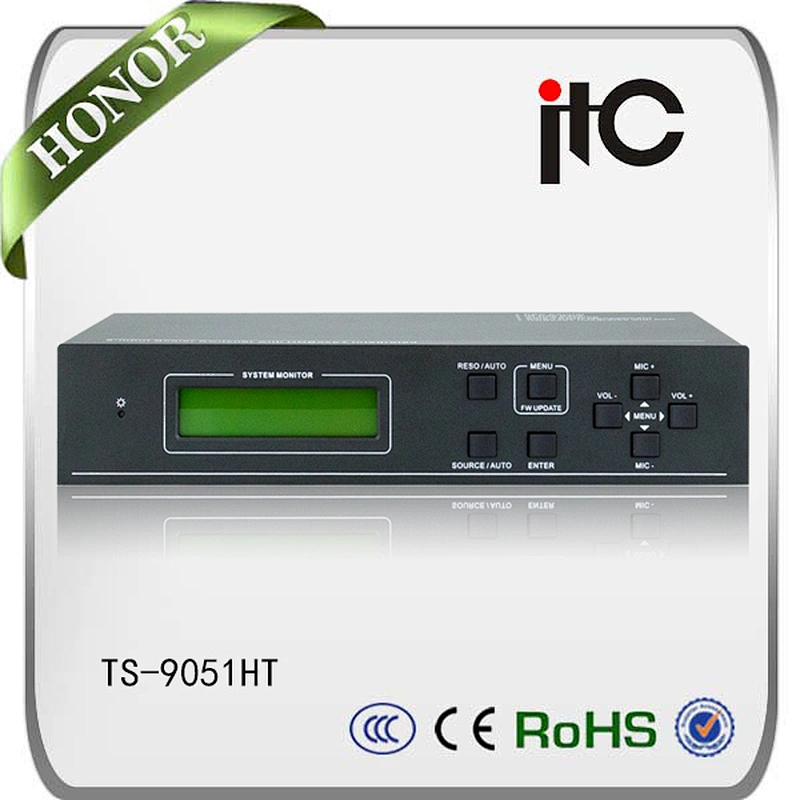

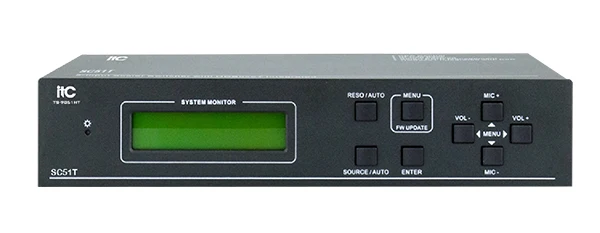

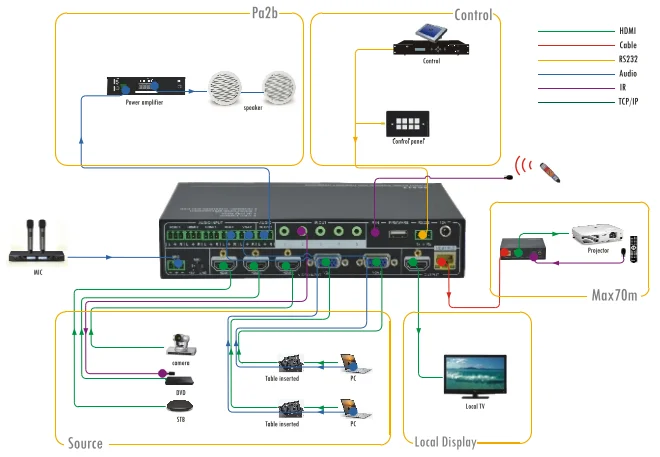

TS-9051HT

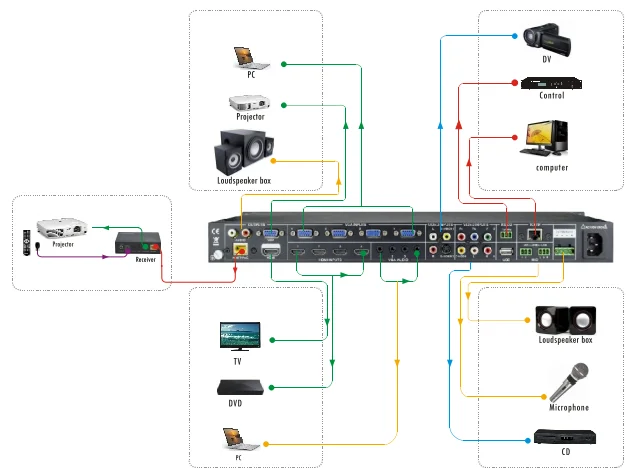

TS-9121HT
ITC Fixed Mount Series HD Hybrid Audio Video Matrix Switcher
1)HD hybrid matrix switcher
2)Input signal support HDMI, DVI, VGA, C-Video and S-Video
3)Input audio could be synchronously embedded; And when it’s output, audio is separable
4)Adjustable output resolution, and the max. of it is 1080P

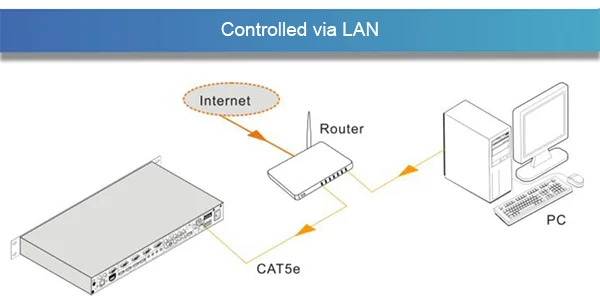

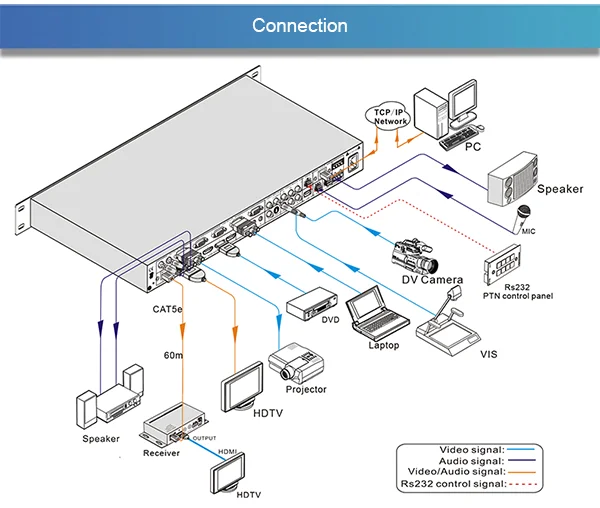

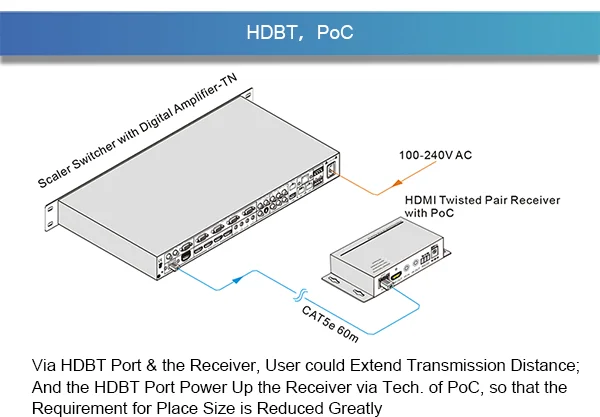

5)Tech. of IR, RS232 and HDBaseT is combined to achieve synchronous transmission
ITC Fixed Mount Series HD Hybrid Audio Video Matrix Switcher
This series is mainly suitable for small and medium occasions, such as conference room, multifunction room, educational places, etc. Multiple input meet the daily demand completely. 2 output meet the display demand of various small and medium occasions.
ITC Fixed Mount Series HD Hybrid Audio Video Matrix Switcher
Model | TS-9051HT | TS-9121HT |

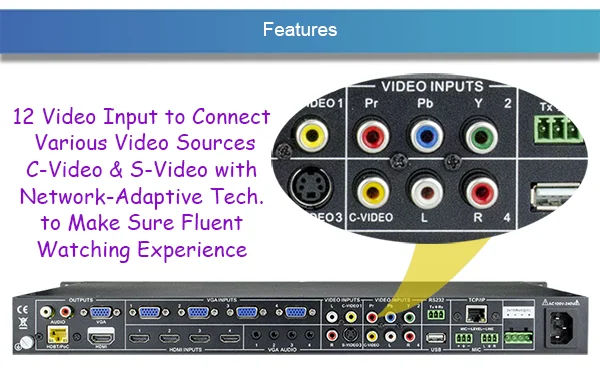

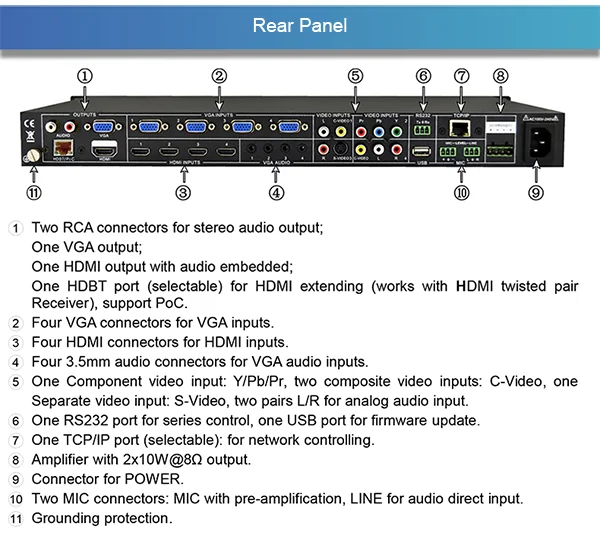

Video Input | 3 HDMI; 2 VGA(Support C-Video, YpbPr) | 4 HDMI; 4VGA; 1YPbPr; 2 C-Video; 1 S-Video |

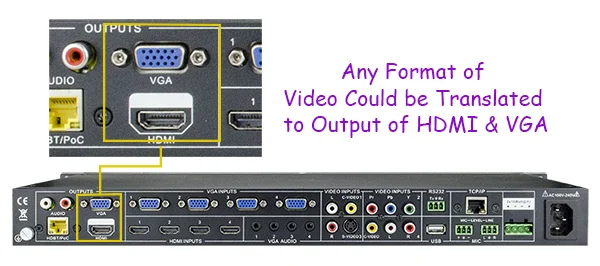

Video Output | 1 HDMI; 1 HDBaseT | 1 HDMI; 1 VGA; 1 HDBaseT |

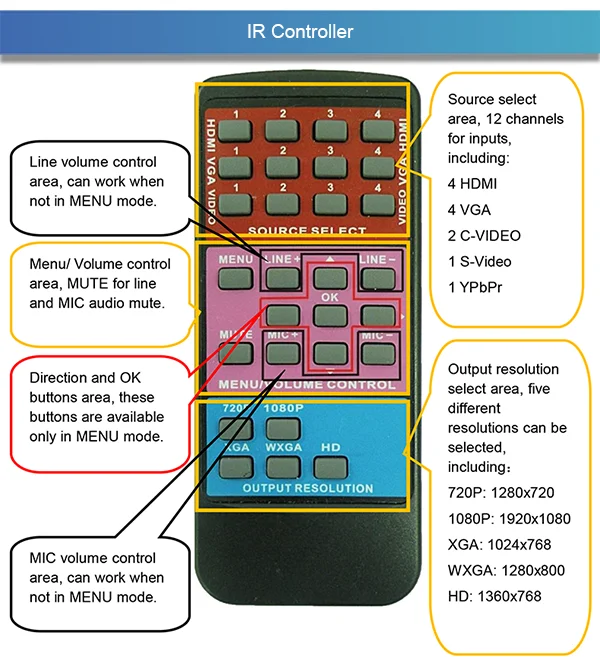

IR Input | 1 IR In | --- |
IR Output | 5 IR Out | --- |
Audio Input | 3 Dual-mono stereo audio for HDMI; 2 Dual-mono stereo audio for VGA; 1 Mic audio | 6 Stereo audio for line audio; HDMI audio; 2 Mic |
Audio Output | 1 Stereo Audio | Stereo Line Audio; 2*10W @8ohm |

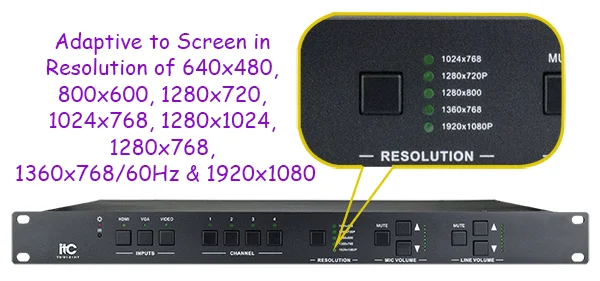

Resolution | 1024*768; 1280*720; 1280*800; 1920*1080; 1600*1200; 1920*1200 | 1920*1080; 1360*768; 1280*720; 1280*800; 1024*768 |
ITC Fixed Mount Series HD Hybrid Audio Video Matrix Switcher
TS-9051HT
TS-9121HT
