ITC AV 8 Series 8 in 2/4/8/16 out Composite Seamless Video Matrix Switcher

Model NO.: TS-9102AV/TS-9104AV/TS-9108AV
Delivery: FOB
Minimum order quantity: 10 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou, Shenzhen and HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:TS-9102AV/TS-9104AV/TS-9108AV
Brand Name:ITC
bandwidth:150MHz
input signal:AV & Component
Input port:RCA and BNC
Input level:0.5Vp-p ~ 2.0Vp-p
Input impedance:75 ohm
Output signal:Composite video
Output port:RCA and BNC
Output level:0.5Vp-p ~ 2.0Vp-p
Output impedance:75 ohm
RL:-30dB at 5MHz

Appearance

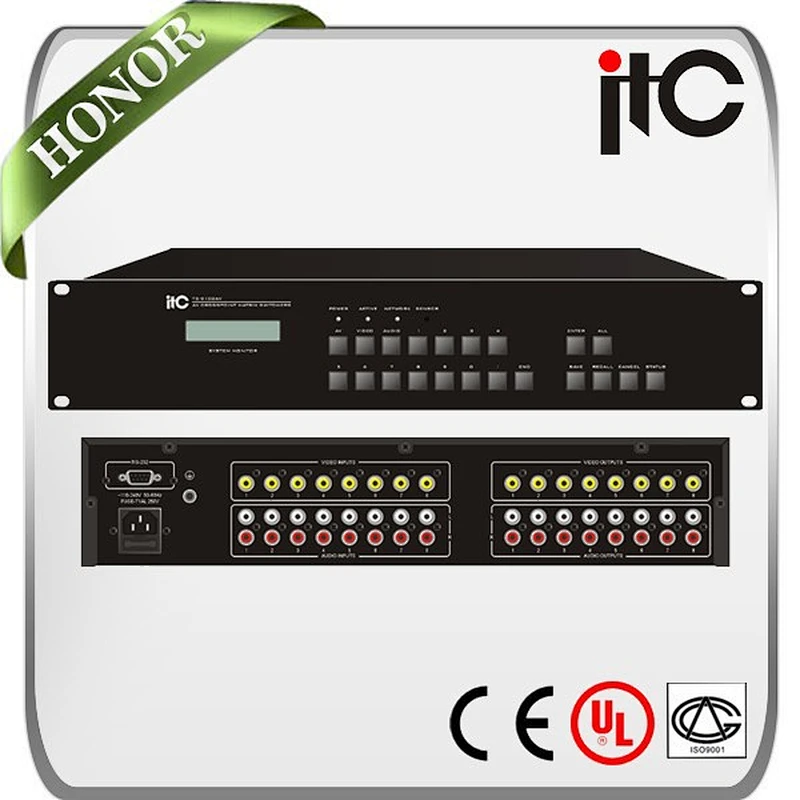

ITC AV 8 Series 8 in 2/4/8/16 out Composite Seamless Video Matrix Switcher

Product Description

ITC AV 8 Series 8 in 2/4/8/16 out Composite Seamless Video Matrix Switcher

AV series professional matrix switcher are high-performance intelligent switch equipment, designed for display and distribution of composite video switching & analog audio signals. It switches the multi-channel input to any output channel, which is independent of each other. It allows video and audio synchronous or asynchronous switching.

AV series professional matrix switchers can be 24-hour standby and power down switching and memory protection. It can be connected with computer, remote control systems & devices by RS232 port. AV series professional matrix switchers have full product lines, from AV8 to AV128 series. It is applied to any transmission for standard analog video and audio signals, widely used for multimedia conference, radio and television projects, command and control, etc.

Feature

ITC AV 8 Series 8 in 2/4/8/16 out Composite Seamless Video Matrix Switcher

* with 8/ 16 audio and video signal input, 2/4/8/16 channel output.

* With BNC & RCA Video interface; five Phoenix connector or RCA for audio.

* Video bandwidth height 150MHz (-3dB) full load.

* With multiple presets and save units, with power-down memory function.

* LCD display the switching operation status, can check the input/output channel connection

status with the panel keyboard.

* With infrared remote control and RS232 port.

* With fast switch for more efficient operation.

* Video signal types: composite video (signal).

* Audio signal types: stereo, balanced or unbalanced connection.

* With programmable logic array circuit and any interactive switch.

* Distortion compensation technology for long-distance signal transmission.

* Built- International General Electric.

Specification

ITC AV 8 Series 8 in 2/4/8/16 out Composite Seamless Video Matrix Switcher

Composite video signal
bandwidth	150MHz(-3dB)full loaded
input signal	Composite video signal
Input port	RCA(8 series), BNC(16-128 series )
Input level	0.5Vp-p ~ 2.0Vp-p
Input impedance	75Ω
Output signal	Composite video
Output port	RCA(8 series), BNC(16-128 series )
Output level	0.5Vp-p ~ 2.0Vp-p
Output impedance	75Ω
RL	-30dB@5MHz
Synchronization standard	NTSC,PAL,SECAM
Differential phase error	0.1 %, 3.58-4.43MHz
Differential gain error	0.1 degree, 3.58-4.43MHz

The analog audio signal
bandwidth	150MHz(-3dB) full loaded
input signal	stereo ( balanced or unbalanced)
Input port	RCA or 3.8mm screw luck
Input level (max)	+19.5dBu
Input impedance	>10KΩ
Output signal	stereo ( balanced or unbalanced)
Output port	RCA or 3.8mm screw luck
Output level (max)	+21dBu
Output impedance	>50Ω
Frequency response	20Hz-20KHz, +0.05dB
Noise ratio (S/N)	>90dB
Stereo Channel Isolation	>80dB @ 1 kHz
Common mode rejection ratio (CMRR)	>75dB @ 20 Hz ~ 20 kHz
