- Power Supply:AC 100V to 240V, 50/60Hz
- Power Consumption:181.5W
- Chassis structure:12 channel card slot
- Card connector:PCI-E
- Working Temp.:0℃ to +50℃
- Working Relative Humidity:10% to 90%
- Various input/output cards:VGA, DVI...
- Chassis Dimension (mm):483x380x88
- Weight (Without Cards):5.2Kg
- Warranty:3 Years
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:TS-9201H
- Power:181.5W
- 车身尺寸:483x380x88
Product Description

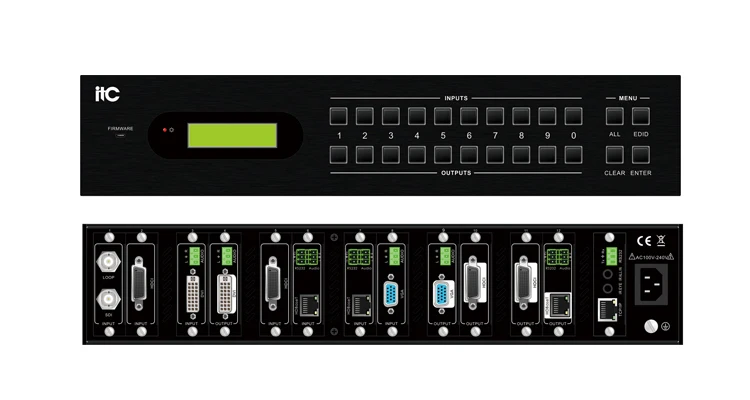

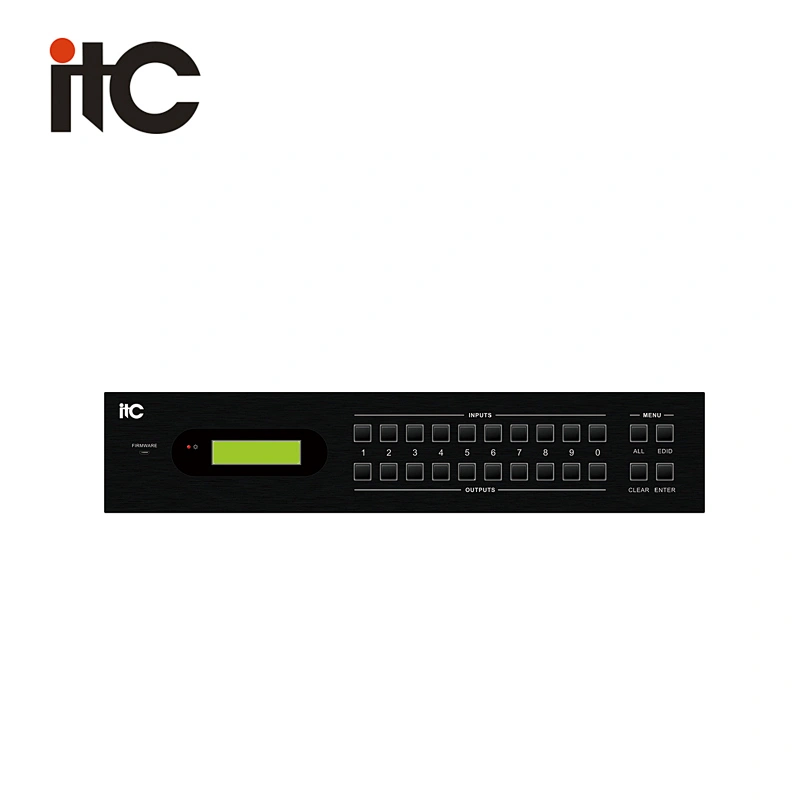

TS-9201H is 1 channel insertion card type HD seamless mixer matrix switcher. Users could custom 12 channel input/output module. And the device could detect the card type automatically. It supports asymmetric configuration of input/output channel. It’s compatible with various cards, such as VGA, DVI, SDI, HDCI, HDMI, etc, which is flexibly collocated and realize plug-and-play. Therefore, it achieves signal hybrid switching in different formats. Flexible controlled mode: touch-screen control panel, IR remote control, RS232 command control, TCP/IP command control and GUI software control.
Feature
1) 12 channel insertion card type seamless mixer matrix; to custom input/output mode freely; free combination to realize 1x11 to 11x1 matrix switcher;
2) Real seamless switching; the switching procedure is without phenomenon of black, delay, jitter and tearing;
3) Various input/output cards are allowed: VGA, DVI, SDI(only support input card), HDCI, HDMI;
4) The device could work with Hawkeye camera and video conference terminal of Polycom via the HDCI card;
5) With auto detection technique for card type; plug-and-play;
6) Adjustable output resolution (except HDCI output card); supporting resolution varies according to the format of the card and the output signal;
7) Various controlled method;
8) Using GUI; could be controlled by mobile phone and computer in various operation system, also could be controlled by various browser , which makes the operation much more convenient;
9) Support network structure UPnP; to enter the GUI quickly;
10) Support EDID management;
11) Support settings save and call of multi channel switching state;
12) Support PoE remote power supply;
13) Support hot plug-hot pull;
14) Could be installed in 19 inch cabinet or placed on the desktop directly;
15) Using touch button to make it more stylish;
16) With indicators to real-time display working state.
Technical Parameters
1) Power Supply: AC 100V to 240V, 50/60Hz;
2) Power Consumption: 181.5W;
3) Chassis structure: 12 channel card slot;
4) Card connector: PCI-E;
5) Working Temp. : 0℃ to +50℃;
6) Working Relative Humidity: 10% to 90%;
7) Chassis Dimension (mm): 483x380x88;
8) Weight (Without Cards): 5.2Kg
