- Place of Origin:CN;GUA
- Model Number:RGB 16 Series
- Brand Name:ITC
- Video bandwidth:450MHz(-3dB)
- Input signals:RGBHV,RGBS, RGsB, RsGsBs
- input interface:5BNC
- RGB Input Level:0.5Vp-p ~ 2.0Vp-p
- RGB input impedance:75 ohm
- Output signal:RGBHV, RGBS, RGsB, RsGsBs
- Output interface:5BNC
- RGB Output Level:0.7Vp-p ~ 2.0Vp-p
- RGB output impedance:75 ohm
- Return Loss:<- 30dB@5MHz

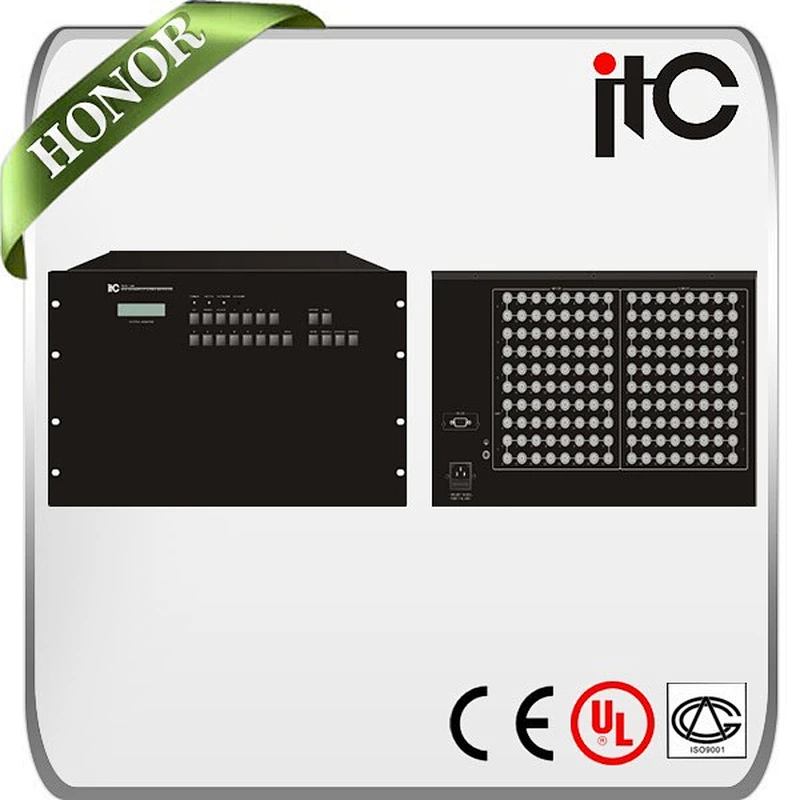

ITC RGB 16 Series 16 in 4/8/16 out 450MHz Seamless RGB Digital Video Switcher Mixer
RGB series digital video switcher, the high-performance intelligent switch equipment, is designed to display and distribute for the most demanding high-resolution computer numbers (ie RGBHV signals). It switcher the multi- channel input signal to any output channel, is independent of each other. Built-in audio, it allows video and audio synchronous or asynchronous switching.
RGB series professional matrix switcher is built-in a high performance matrix processing chip, coming with a buffer. It works with ultra-wideband gain compensation technology and synchronization signal correction technology to display the image output more stably and clear, without ghosting.
RGB series professional matrix switcher can be 24-hour standby and power down switching and memory protection. It can be connected with computer, remote control systems & devices with RS232 port.
RGB series professional matrix switcher has full product lines, ranging from RGB8 to 32 x 32 series. It is applied to any transmission for standard analog video and audio signals, widely used in multimedia conference projects, radio and television projects, command and control, etc.
* With 8/ 16 audio and video signal input, 2/4/8/16 channel output.
* Video bandwidth height 450MHz (-3dB) full loaded.
* Provide multiple preset and save units, with power-down memory function.
* LCD display the switching operation status, can check the input output channel connection status with the panel keyboard.
* With infrared remote control and RS232 port.
* With fast switch for more efficient operation.
* With independent RGBHV component and audio balanced / unbalanced input and output connectors.
* Support video signal types: RGBHV, RGBS, RGsB, RsGsBs, high- definition television (HDTV), component video, S-video, composite video (signal).
* With BNC connectors for video signal input and output, five 3.8mm screw interfaces for audio signal terminal.
* Support audio signal types are: stereo, balanced or unbalanced connection.
* With programmable logic array circuit and any interactive switch.
* Distortion compensation technology for long-distance signal transmission.
* Built- International General Electric.
ITC RGB 16 Series 16 in 4/8/16 out 450MHz Seamless RGB Digital Video Switcher Mixer
Composite video signal | |
Video bandwidth | 450MHz(-3dB) full loaded |
Input signals | RGBHV,RGBS, RGsB, RsGsBs |
input interface | 5 BNC |
RGB Input Level | 0.5Vp-p ~ 2.0Vp-p |
RGB input impedance | 75Ω |
HV Input Level | 0.5V ~ 5.0Vp-p |
HV input impedance | 510Ω |
Output signal | RGBHV, RGBS, RGsB, RsGsBs |
Output interface | 5BNC |
RGB Output Level | 0.7Vp-p ~ 2.0Vp-p |
RGB output impedance | 75Ω |
HV output level | 0.5V ~ 5.0Vp-p |
HV output impedance | 75Ω |
Return Loss | <- 30dB@5MHz |
Horizontal Frequency Response | 15 kHz ~ 145 kHz |
Vertical frequency response | 30 Hz ~ 170 Hz |
The analog audio signal | |
Video bandwidth | 150MHz(-3dB) full loaded |
Input signals | stereo ( balanced or unbalanced) |
input interface | RCA or 3.8mm screw luck |
Input Level(max) | +19.5dBu |
Input impedance | >10KΩ |
Output signal | stereo (balanced or unbalanced) |
Output interface | RCA or 3.8mm screw luck |
Output Level(max) | +21dBU |
Output impedance | >50Ω |
Frequency Response | 20Hz-20KHz, +0.05dB |
Noise ratio (S/N) | >90dB |
Stereo Channel Isolation | >80dB @ 1 kHz |
Common mode rejection ratio (CMRR) | >75dB @ 20 Hz ~ 20 kHz |
Equipment Specifications | |
propagation delay (MAX) | 5nS(±1nS) |
Switching delay | 200nS ( maximum time ) |
Average failure time | 50000hours |
Operating temperature | -20~45℃ |
Operating humidity | 10%~90% |
Supply voltage | 100VAC~240VAC, 50/60Hz |
