- Place of Origin:CN;GUA
- Model Number:D-200/D-350/D-700/D-1000/D-1200
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Conversion Rate:50V/us
- Input Sensitivity:1Vrms
- THD:<0.1%
- IMD:<0.1%
- Cross Talk:-70dB
- Damping:200
- S/N Ratio:>102dB
- Input Voltage:AC 100-240V(50-60Hz)
- Dimension:483x350x44mm
- Weight:7Kg /8.3Kg
ITC D Series Conference Room Sound System Professional Stereo Amplifier

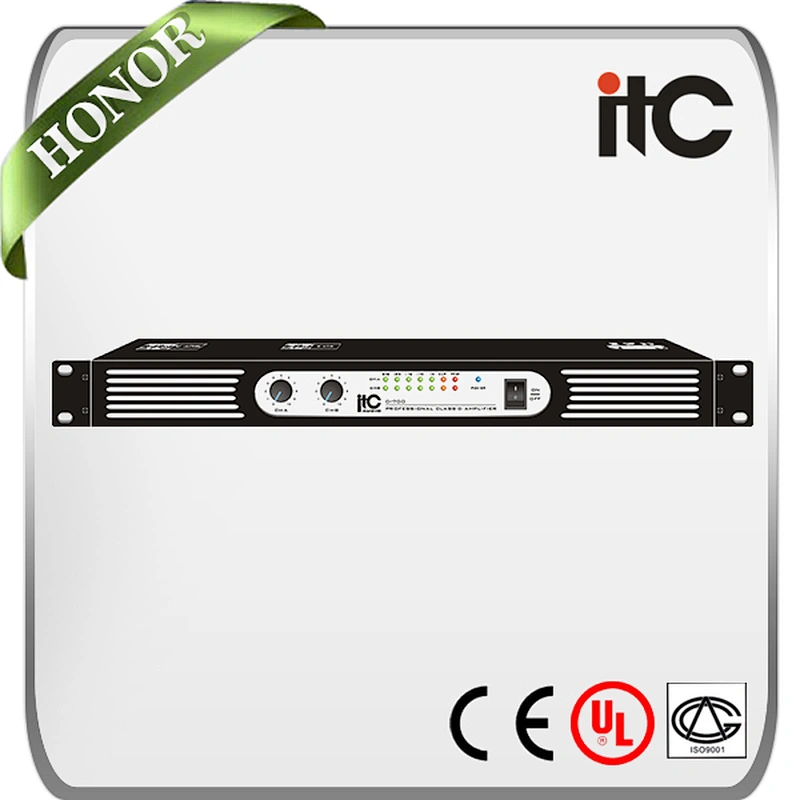

Appearance
ITC D Series Conference Room Sound System Professional Stereo Amplifier
Feature
ITC D Series Conference Room Sound System Professional Stereo Amplifier
- It adopts latest design plan of class D amplifier circuit so that the distortion is low and the efficiency is high.
- With switching power which make its efficiency higher.
- To adopt tech. of power factor named PFC in order to cancel power harmonic, which meets the demand of EU green power.
- Standard rack mount design in 1U and it’s light.
- With temperature-controlled fan.
- With function of amplifier frequency synchronization, PWM, PFC, etc.
- Complete protection for short, over-heat, overload, etc.
Specification
ITC D Series Conference Room Sound System Professional Stereo Amplifier
Model | D-200 | D-350 | D-700 | D-1000 | D-1200 |
Rated Power Output | 8Ω 2x200W | 8Ω 2x350W | 8Ω 2x700W | 8Ω 2x1000W | 8Ω 2x1200W |
4Ω 2x350W | 4Ω 2x600W | 4Ω 2x1200W | 4Ω 2x1600W | 4Ω 2x2000W | |
Conversion Rate | 50V/us | ||||
Input Sensitivity | 1Vrms | ||||
THD | <0.1% | ||||
IMD | <0.1% | ||||
Cross Talk | -70dB | ||||
Damping | 200 | ||||
S/N Ratio | >102dB | ||||
Input Voltage | AC 100-240V(50-60Hz) | ||||
Dimension | 483×350×44mm | ||||
Weight | 7Kg | 8.3Kg | |||
