- Place of Origin:CN;GUA
- Model Number:TR-800A/TR-1000A/TR-1200A
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Conversion Rate:50V/us
- Input Sensitivity:0dBu(1V)
- THD:<0.05%
- IMD:<0.1%
- Cross Talk:-70dB
- Damping:200
- S/N Ratio:>90dB
- Input Voltage:AC 220-240V(50-60Hz)
- Channel:2
- Type:1U Type

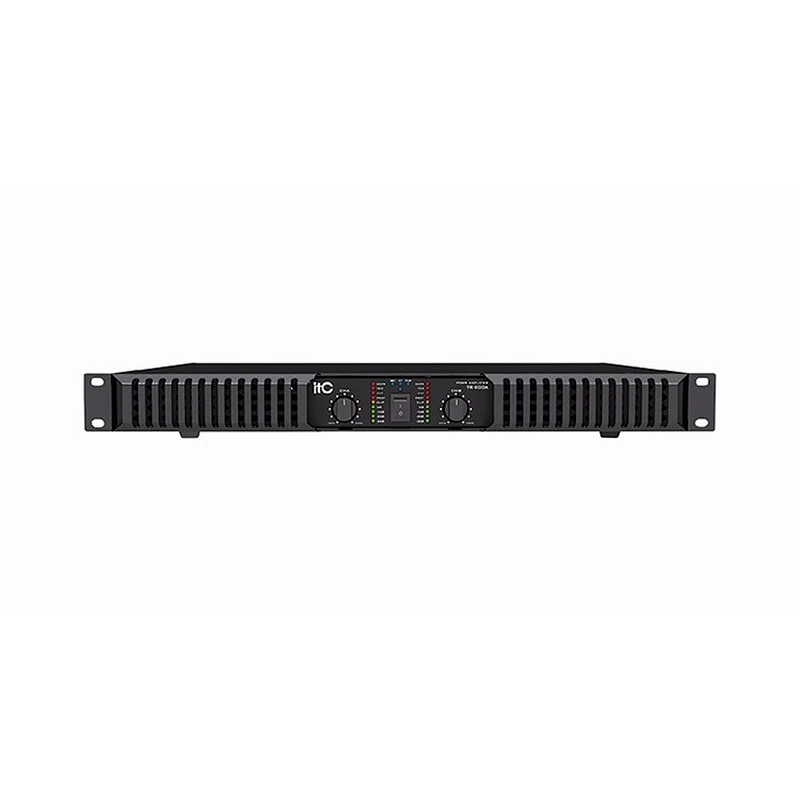

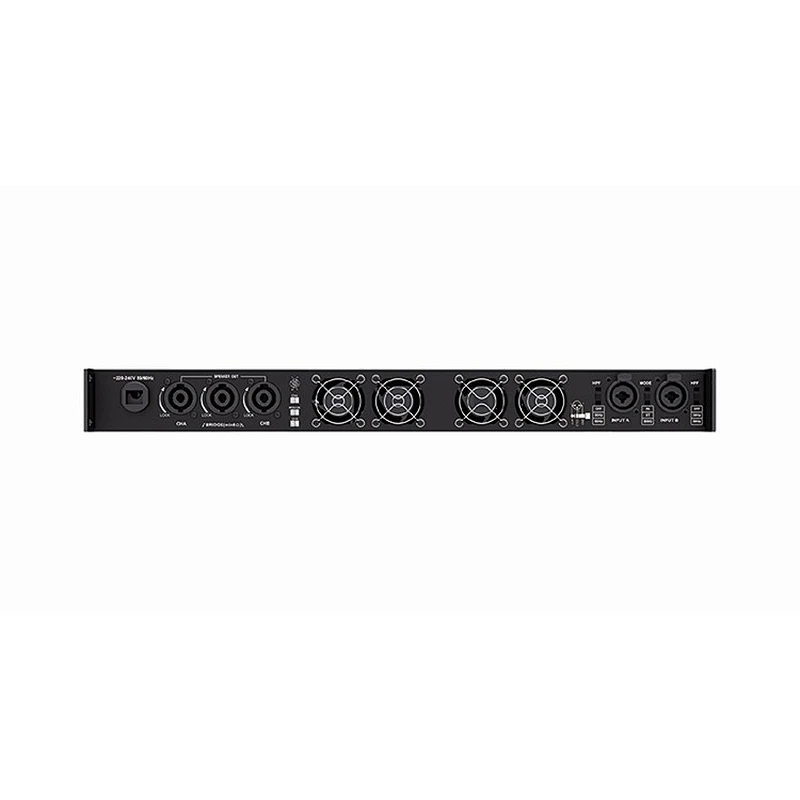

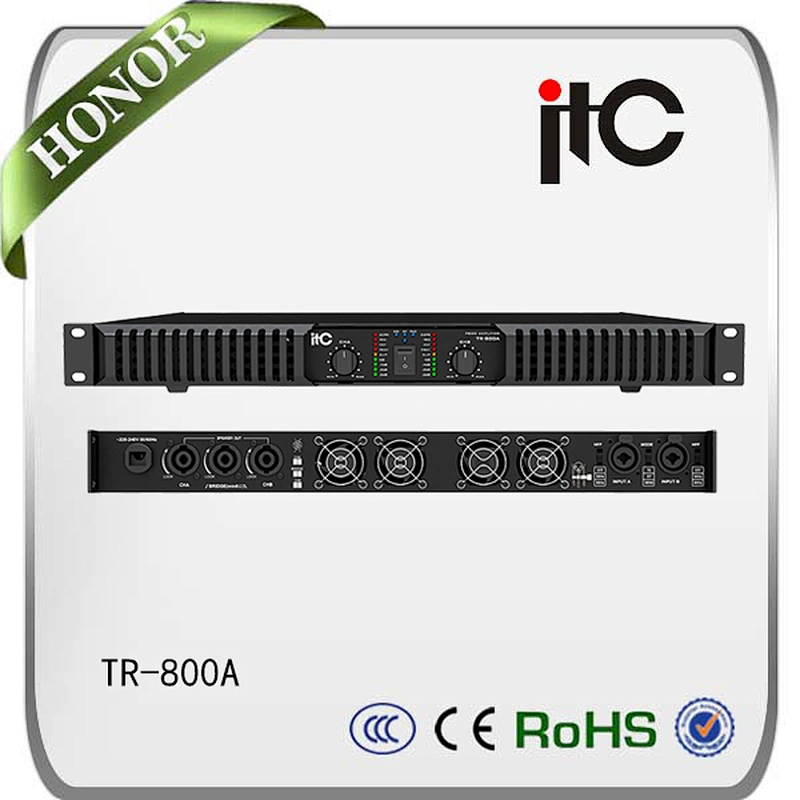

Made in China Indoor Outdoor 1000 Watt Extreme Pro Stereo 1U Professional Power Amplifier
Features
* With 1U streamlined cabinet design, class-TR real time tracking power amplifier technology, high efficient
amplifying circuit design, and high-fidelity sound quality, perfect to restore the audio quality.
* Power on soft-start,to prevent absorbing a large current of the grid power, from interference with other
electricalequipment.
* Built-in smart clipping distortion and over-current limit system.
* Built-in 30Hz / 50Hz high-pass filter.
* Built-in automatic temperature control fan cooling system.
* Multiple modes: stereo, bridge, parallel.
* Comprehensive and reliable security protection measures and working status indicator, over-temperature, over-voltage, under-voltage, and over-current, short circuit multiple intelligent detection and
protection system.
Output Power (20 to 20KHz/THD≤1%) | TR-800A | TR-1000A | TR-1200A |
Stereo/Parallel 8Ωx2 | 800W x2 | 1000W x2 | 1200W x2 |
Stereo/Parallel 4Ωx2 | 1200W x2 | 1500W x2 | 1800W x2 |
Bridged 8Ω | 2400W x2 | 3000W x2 | 3600W x2 |
Connector | XLR, TRS | ||
Voltage Gain (@1KHz) | 38dB | 39dB | 40dB |
Input Sensitivity | 0dBu(1V) | ||
Input Impedance | 10KΩ unbalanced, 20KΩ balanced | ||
Frequency Response (≤1W) | 20 to 20KHz/±1dB | ||
THD+N | ≤0.05% | ||
SNR (A Weighted) | ≥90dB | ≥90dB | ≥95dB |
Damping Factor (@1KHz) | ≥200 @8ohm | ||
Separating Degree (@1KHz) | ≥70dB | ||
Protection | Over-pressure, low-voltage, overflowing, short, DC protection | ||
Indicators | Power, temp. Protection, overflowing protection, clipping distortion, short protection, etc | ||
Cooling Method | Fan cooling | ||
Power Supply | AC 220V to AC 240V 50/60Hz | ||
Power Consumption | 2800W | 3300W | 4000W |
Dimension (LxWxH) | 483x390x44mm | ||
Weight | 8Kg | 8.2Kg | 8.5Kg |
