- Place of Origin:CN;GUA
- Model Number:TD-800A TD-1000A TD-1200A
- Brand Name:ITC
- Into 8 Ohmsx2:800W/1000W/1200W
- Into 4 Ohmsx2:1200W/1500W/1800W
- Into 8 Ohms bridged:2400W/3000W/3600W
- Frequency Response:20Hz-20KHz/+-0.5dB
- Voltage Level Gain:26dB
- Sensitivity Input:0dBu(0.775V)
- Impedance Input:10Kohms
- THD+N:≤0.05%
- S/N:105dB
- Resistance Parameter:>200:1

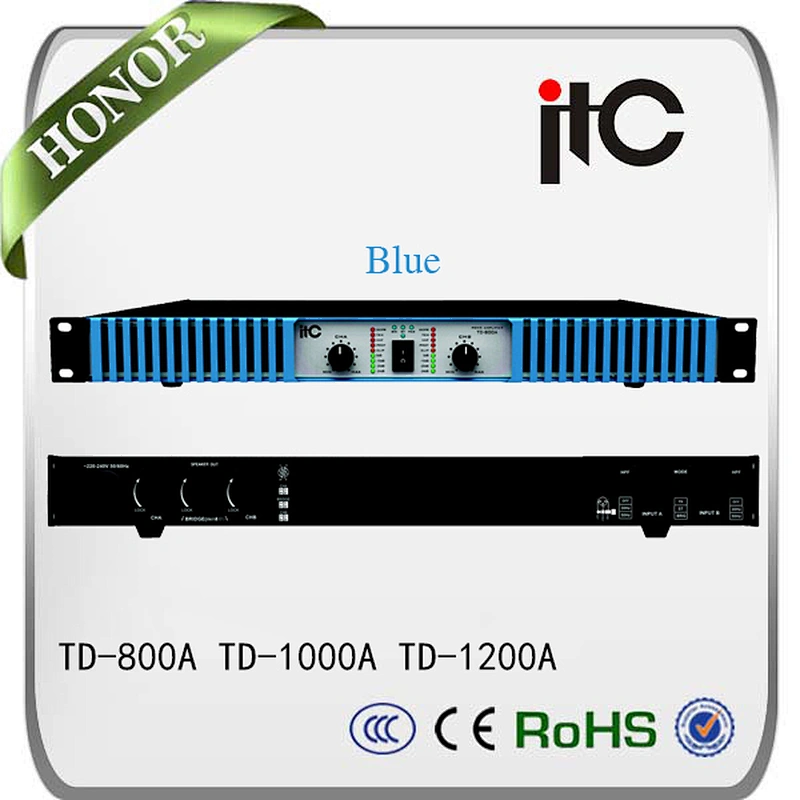

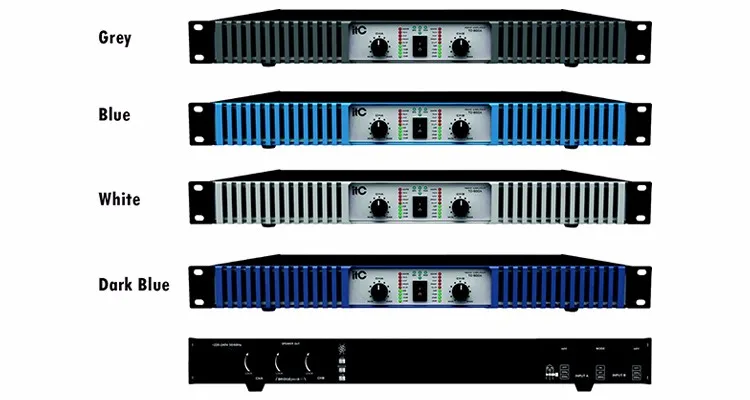

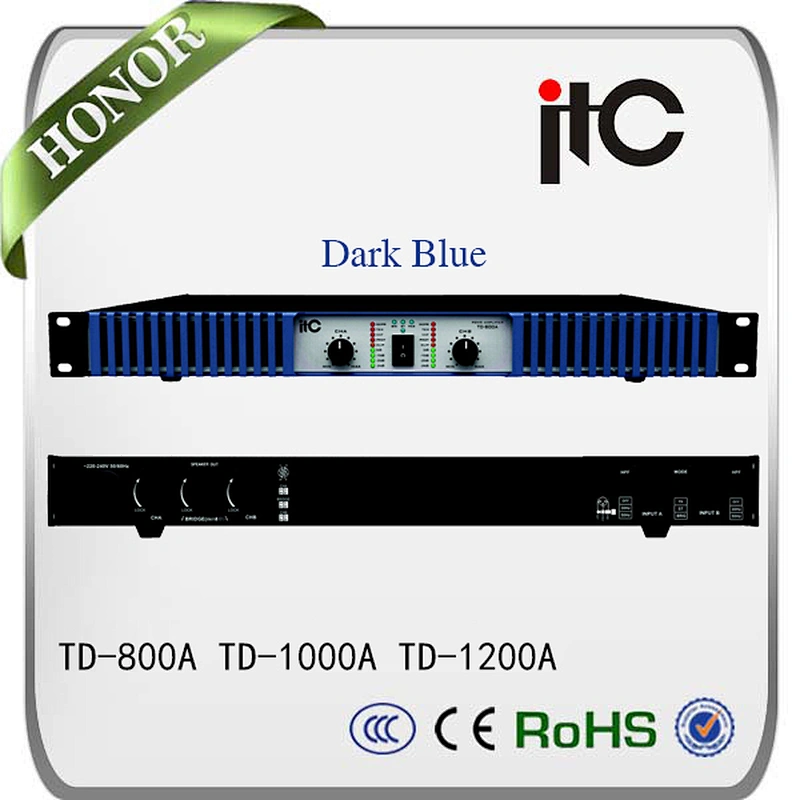

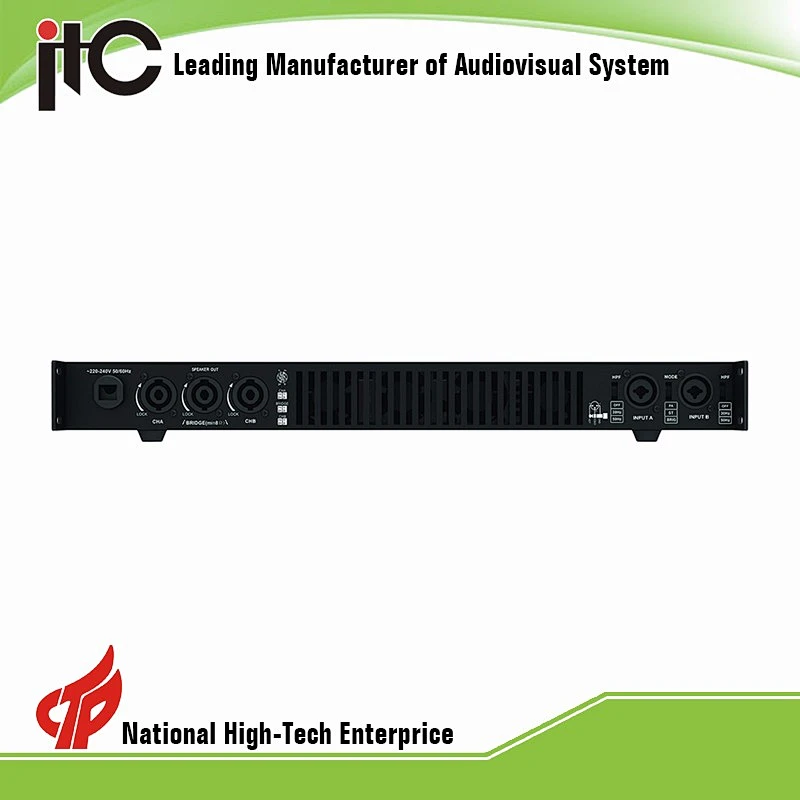

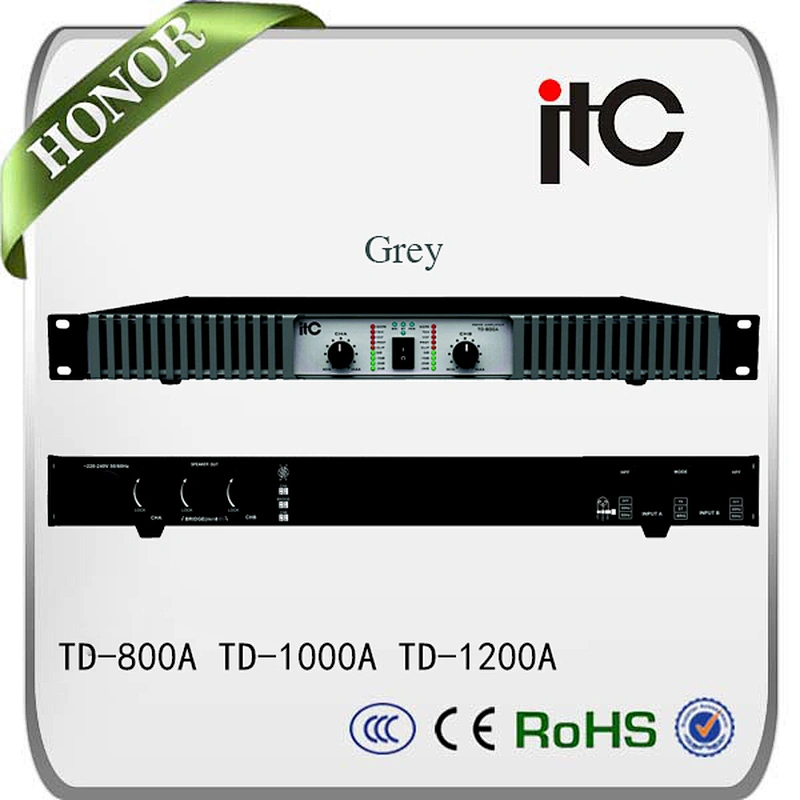

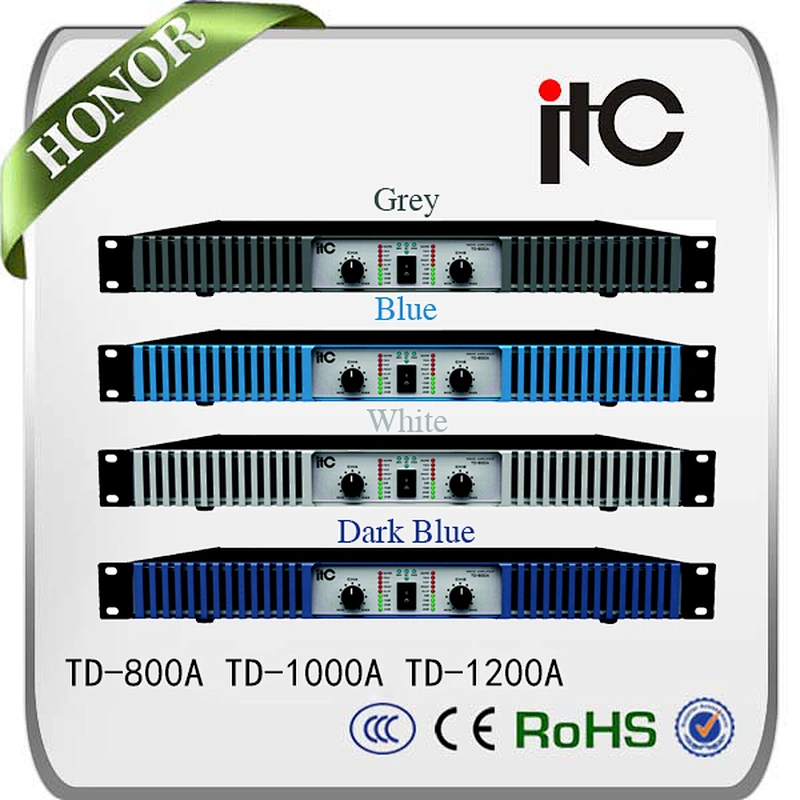

ITC TD Series Auto Temp Controling Class TD Power Amplifier
1)In 1U design, using technique of real-time power tracking amplifier, high performance amplifier circuit design, hifi sound quality to restore the quality of audio sources perfectly;
2)Support soft-start to avoid causing interference to other devices, when it’s turned on and absorbs large current;
3)With intelligent clipping distortion and over-current pressure limit system;
4)With 30/50Hz high pass filter;
5)With auto temperature control fan cooling system;
6)Multiple modes: stereo, bridged and parallelism;
7)Complete and reliable safety precautions, working mode indicators and multiple detection system for over-heat, over-pressure, low-voltage, overflowing, short, etc.
Model | TD-800A | TD-1000A | TD-1200A | ||||
Rate Power Output (20Hz-20KHz/THD≤0.05%) | |||||||
Into 8 Ohmsx2 | 800W | 1000W | 1200W | ||||
Into 4 Ohmsx2 | 1200W | 1500W | 1800W | ||||
Into 8 Ohms bridged | 2400W | 3000W | 3600W | ||||
Frequency Response | 20Hz-20KHz/+-0.5dB | ||||||
Voltage Level Gain (Reference 1KHz) | 26dB(constant gain option) | ||||||
Sensitivity Input | 0dBu(0.775V) | ||||||
Impedance Input | 10Kohms | ||||||
THD+N | ≤0.05% | ||||||
S/N (A-Weighted, RMS to rated output level, Inputsensitivity 0dBu) | 105dB | ||||||
Separate Degree (At rated output Power reference1KHz) | ≤85dB | ||||||
Resistance Parameter (Internal 1KHz) | >200:1 | ||||||
Diversion Speed | 25V/us | ||||||
Power Supply | ~110V/60Hz or ~230V/50HZ | ||||||
Dimensions | 484 x 350 x 44mm | ||||||
Weight | 6kg | 8kg | 9kg | ||||
Guangzhou ITC Electronic Technology Limited
* Operate a 30,000sqmfactory
*15years of audiovisual experience
* Integrating research, production, sales and service
* 10 major product series and 1,000+ models
* Support OEM & ODM service
Packaging & Shipping
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
Exhibitions
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
We have 50 software copyright and 12 patents.
Product complied with certificates:
CE Certificate
ISO9001, ISO14001, IS018001, ISO27001
CCC Certificate: China Compulsory Certification
International Standard Product Making Certificate
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
