- Place of Origin:CN;GUA
- Model Number: T-6712
- Brand Name:ITC
- Power:DC 24V
- Camera:Other
- Network Interface:Standard RJ45 input
- Communication Protocol:TCP/IP, UDP, IGMP
- Audio Format:MP3/MP2
- Sampling Rate:8K~48KHz
- Transmission Speed:10/100Mbps
- Audio Mode:16-bit stereo CD sound level
- Frequency Response:20-16kHz (+1dB,-3dB)
- T.H.D.:≤0.3%
- S/N Ratio:>70dB
- Aux Input:350mV

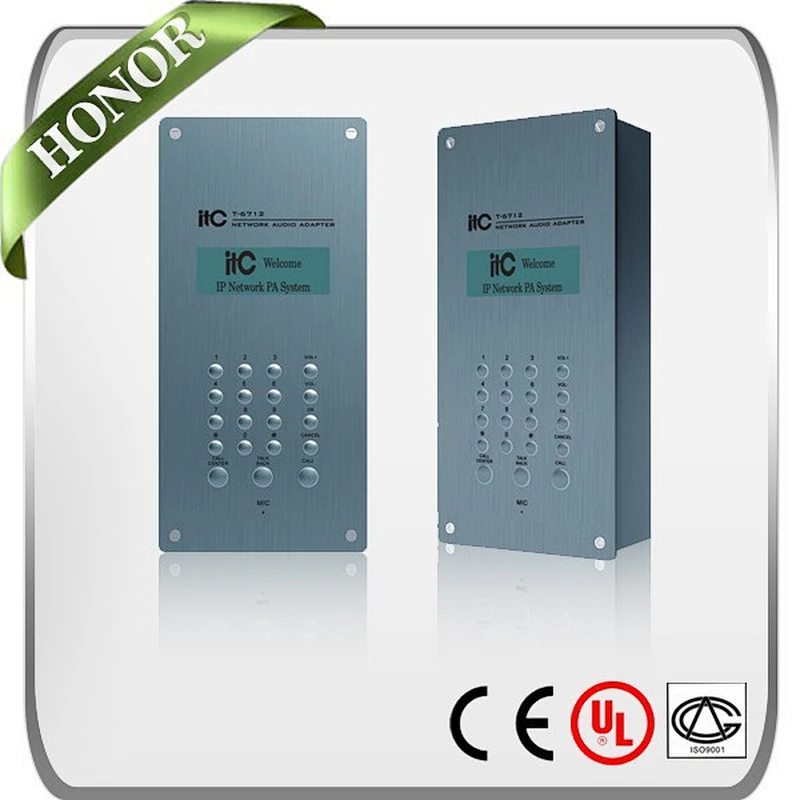

ITC T-6712 TCP IP Full Duplex Bank Intercom System
Model | T-6712 |
Network Interface | Standard RJ45 input |
Communication Protocol | TCP/IP, UDP, IGMP |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmission Speed | 10/100Mbps |
Audio Mode | 16-bit stereo CD sound level |
Frequency Response | 20-16kHz (+1dB,-3dB) |
T.H.D. | ≤0.3% |
S/N Ratio | >70dB |
Aux Input | 350mV |
Power Out & Impedance | 10W+10W, 8Ω |
Line Output & Impedance | 1V, 1kΩ |
Mic Input | 10mV |
Power | ≤18W |
Woking Temp | 5 °C~40°C |
Humidity | 20% ~80% |
Power Supply | DC24V |
Dimensions | 240x115x50mm |
Weight | 1Kg |
ITC T-6712 TCP IP Full Duplex Bank Intercom System
* Full duplex communication panel with one button press to talk feature.
* Full duplex network audio solution.
* Ideal communication system for bank, prison, hospital, school, mining plant, transportation center, airport, metro or subway.
* Full TCP IP network audio system which could be set up over non-dedicated network system.
* Capacity to intercom with another unit or duty microphone T-6702.
* Ring call to duty microphone and automatically transfer function when no answer or busy.
* 2.8 LCD display IP address and working status to ensure user friend interactive.
* Built-in high sensitivity microphone and a stereo 10W+10W amplifier.
* Duty microphone and PC server center can broadcast music or voice message directly.
* Local aux input for its own zone use.
* One aux output to connect with external amplifier.
* One dry contact output to inter-work with third party system.
* Safe DC 24V power supply system.
* Minimum data delay and no echo noise.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
