- Place of Origin:CN;GUA
- Use:Home Theatre
- Model Number:T-585
- Brand Name:ITC
- Type:Passive
- Channels:1
- Special Feature:Portable
- Use:Emergency Alarm
- Power Taps @100V:0.93W, 1.87W, 3.75W, 7.5W, 15W
- Power Taps @70V:0.46W, 0.93W, 1.87W, 3.75W, 7.5W
- Impedance:Com/10.7KΩ/5.3KΩ/2.6Ω/1.3KΩ/670Ω
- SPL(1W/1M):93dB
- Max. SPL (Rated W/1M):105dB
- Frequency Response (-10dB):80-20KHz
- Finish:Baffle: Steel, Red Grille: Steel, White
- Speaker Driver:8 inch x 1 & 1.5 inch x 1
- Cutout Size:240mm
- Dimension:270 x 130mm

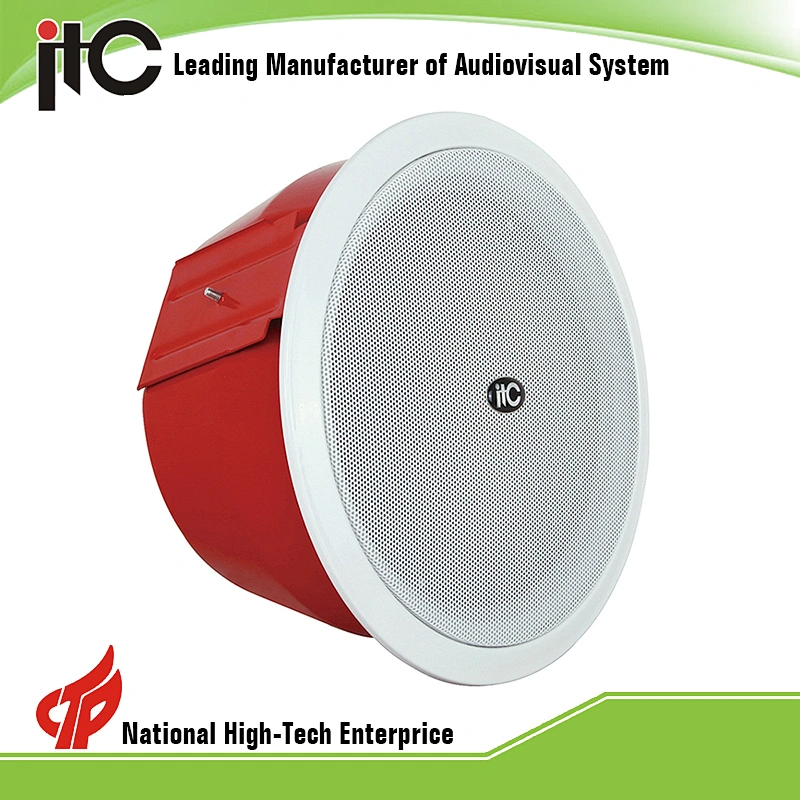

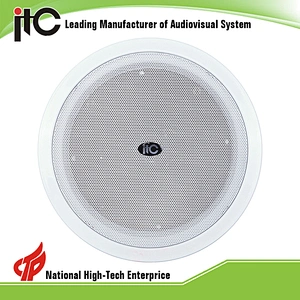

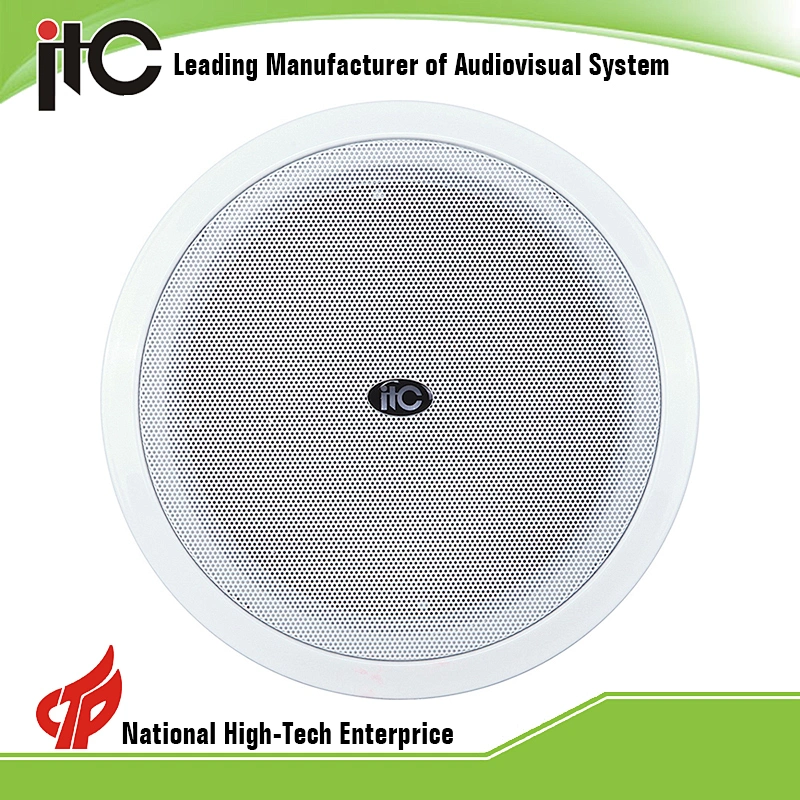

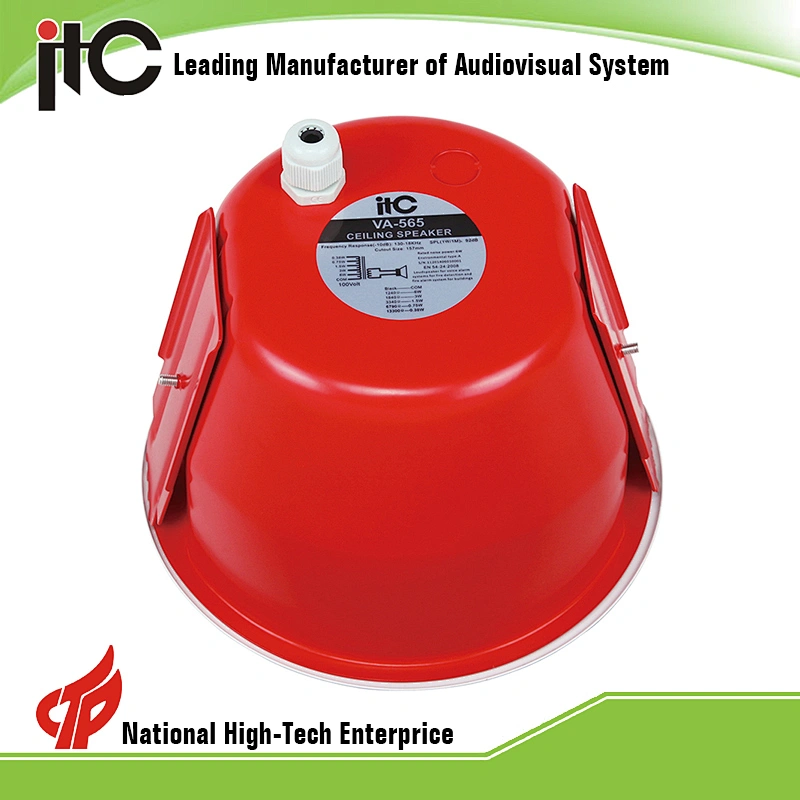

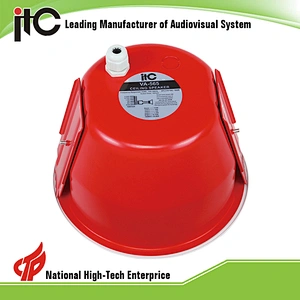

8 Inch Ceiling Speaker, EN54-24 Fireproof In Ceiling Speaker PA
The T-585 is a fireproof ceiling speaker built-in 70V/100V transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.
The built-in 8 inch speaker driver is designed of wide frequency response 130-15kHz, the multiple power taps 0.93W, 1.87W, 3.75W, 7.5W & 15W are helpful for different applications varies from room size and ambient noise surrounding.

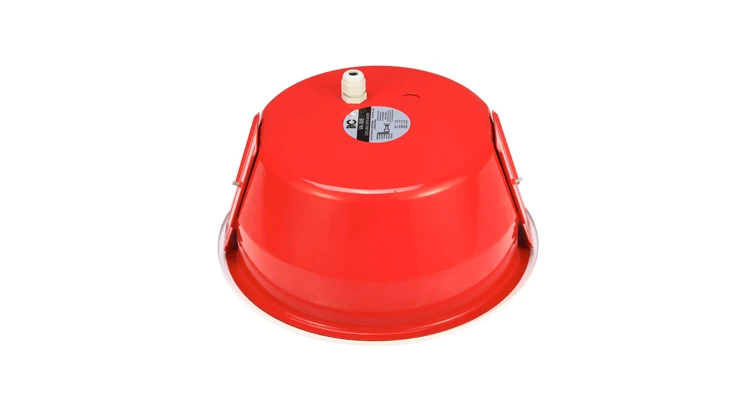

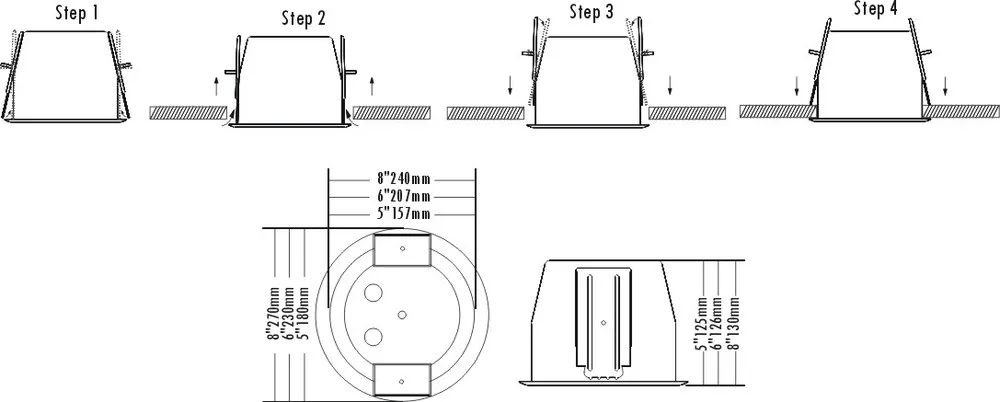

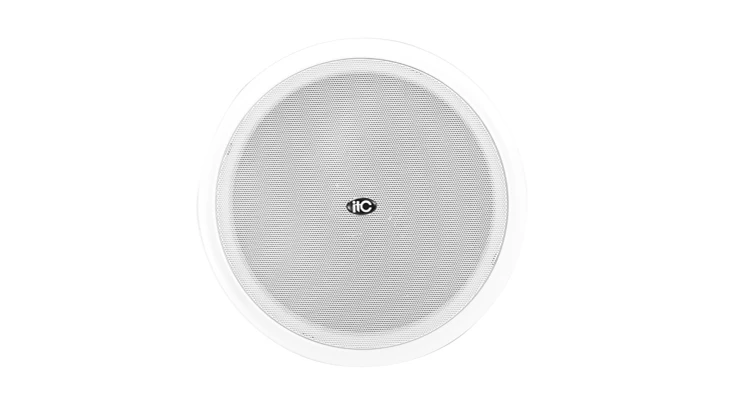

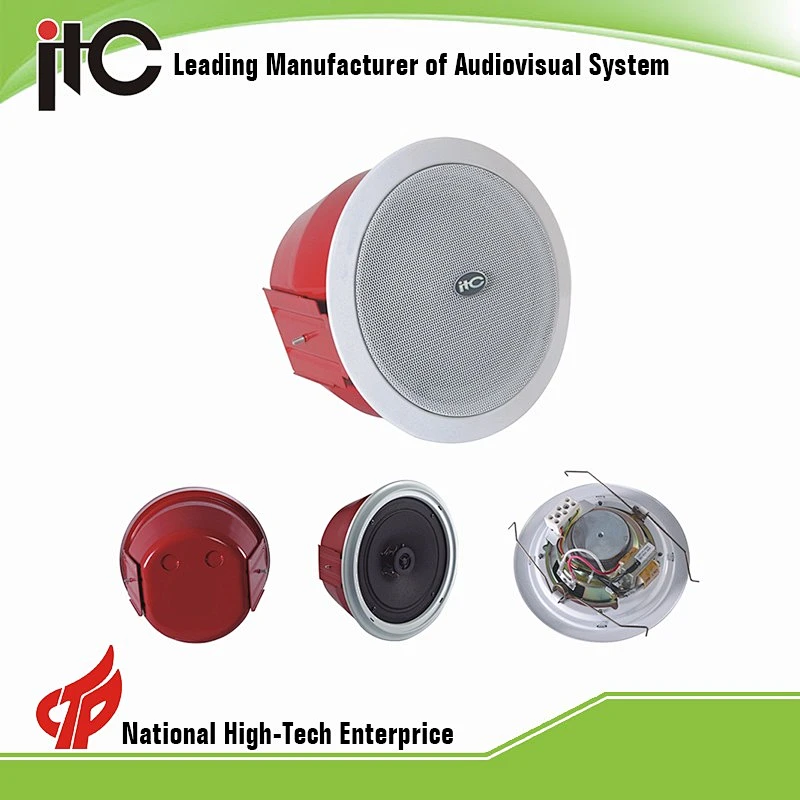

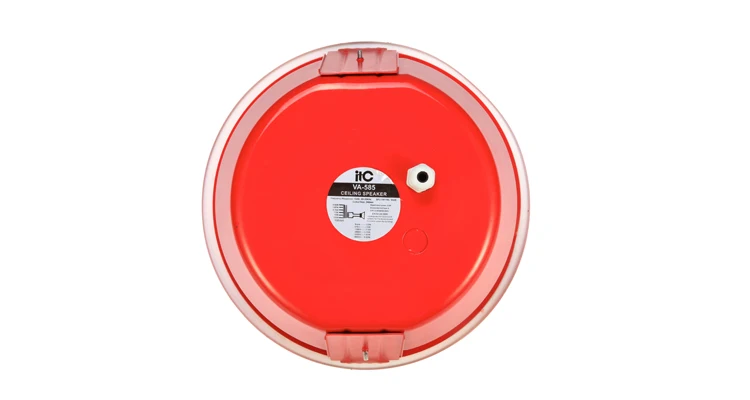

The metal grille, metal baffle and fire dome metal back can plus ceramic connector, thermal fuse and fire-resistant cable, all of the above features make it is fireproof. Its spring clamp type makes the easy and secure installation.
This fireproof ceiling speaker is specially designed for fire alarm and voice evacuation system, which is designed and manufactured according to EN54-24 standard. It is ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Features
- Built-in 100V/70V transformer
- EN54-24 approved fireproof ceiling speaker
- Ceramic connector, thermal fuse and fire-resistant cable
- 8 inch speaker unit
- Power taps 0.93w-1.87w-3.75w-7.5w-15w @100V
- Metal grille, metal baffle and fire dome metal back can plus ceramic connector
Model | T-585 |
Power Taps @100V | 0.93W, 1.87W, 3.75W, 7.5W, 15W |
Power Taps @70V | 0.46W, 0.93W, 1.87W, 3.75W, 7.5W |
Impedance | Com/10.7KΩ/5.3KΩ/2.6Ω/1.3KΩ/670Ω |
SPL(1W/1M) | 93dB |
Max. SPL (Rated W/1M) | 105dB |
Frequency Response (-10dB) | 80-20KHz |
Finish | Baffle: Steel, Red Grille: Steel, White |
Speaker Driver | 8 inch x 1 1.5 inch x 1 |
Cutout Size | 240mm |
Dimensions | 270 x 130mm |
Weight | 1.7Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
