- Place of Origin:CN;GUA
- Model Number:MPT60/MPT120/MPT240
- Brand Name:ITC
- Power Output:60W/120W/240W
- Speaker Output:70V, 100V & 4~16Ω
- MIC Input Sensitivity/Impedance:5mV/600Ω
- AUX 1-2 Input Sensitivity/Impedance:350mV/10KΩ
- S/N Ratio:≥66dB
- Frequency Response:50Hz~18KHz(±3dB)
- Tone (Bass: 100Hz, Treble: 10KHz):±10dB
- Pre Output:1V/600Ω
- THD:≤0.1% at 1KHz, 1/3 rated power
- Program Steps:≤0.1% at 1KHz, 1/3 rated power

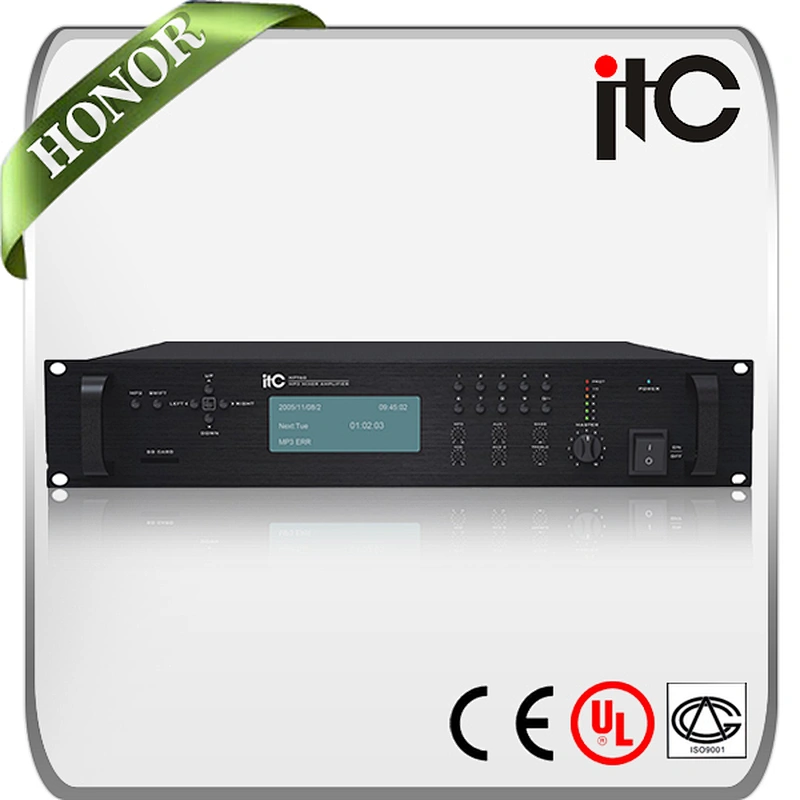

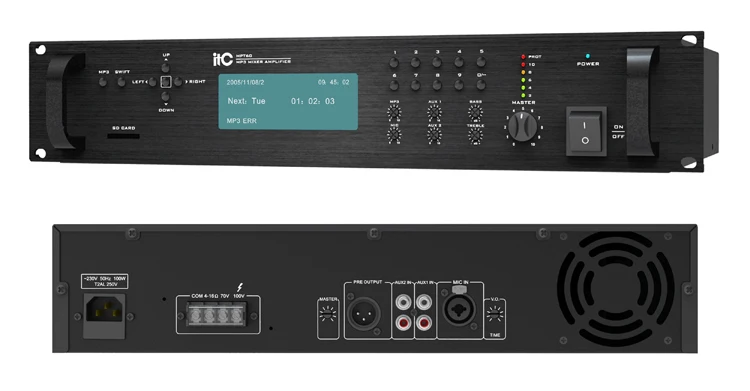

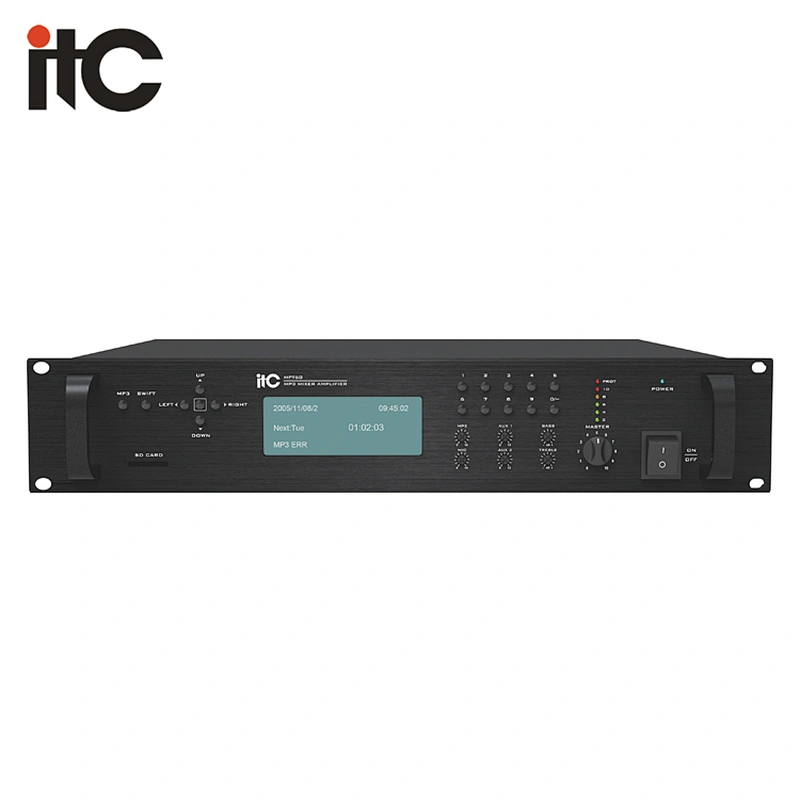

ITC MPT60 Series Internal Weekly Timer PA Amplifier with MP3 Player
* Mixer amplifier built-in MP3 and weekly timer.
* Amplifier power output from 60W, 120W to 240W.
* Rack mount type in 2U height.
* MP3 input by SD card in front panel.
* 1 Mic input by Combo type.
* 2 aux inputs by RCA type.
* Balanced line output.
* Speaker output: 70V, 100V and 4-16ohms.
* Extensive protection include high temp, overload and short circuit.
* Mic1 input with priority over other inputs, and mute level control is supplied.
* Bass/treble tone control and volume control for MP3, Mic, Aux1-2 and master volume control.
The MPT series amplifiers power output of 60W, 120W to 240W. The shining feature of this
amplifieris integration together with a weekly timer and Mp3 player, thus the end-user can
conveniently program over the Mp3 file whether it is voice message for advertisement or
music song for background music. All in one economy solution for school, shopping mall,
super market, school where repeated activities are happened.
Model | MPT60 | MPT120 | MPT240 | |
Power Output(THD 1%) | 60W | 120W | 240W | |
Speaker Outputs | 70V, 100V & 4~16Ω | |||
MIC Input Sensitivity/ | 5mV/600Ω | |||
AUX 1-2 Input Sensitivity/ | 350mV/10KΩ | |||
S/N Ratio | ≥66dB | |||
SD File System | Support both FAT16 and FAT32, do not support file format | |||
Supports up to 2G-1 bytes as the file size. | ||||
The maximum number of playable files is 65534. | ||||
Sorts and plays up to 100 files in the order of UNICODE. | ||||
Mp3 Format | Supports MPEG audio 1, 2 and 2.5. Supports | |||
Layer 1, 2 and 3. | ||||
Supports sample rates 8k, 16k, 32k, 11.025k, 22.05k, | ||||
44.1k, 12k, 24k and 48kHz. | ||||
Supports bit rate 8 to 320 kbps and VBR (Variable Bit Rate). | ||||
Except free format. | ||||
MP3 | Support MP3 format, max capacity of 32G | |||
Frequency Response | 50Hz~18KHz (±3dB) | |||
Tone (Bass: 100Hz, | ±10dB | |||
Pre Output | 1V/600Ω | |||
THD | ≤0.1% at 1KHz, 1/3 rated power | |||
Program Steps | Total 512 Steps, 1 day≤200 Steps | |||
Power Supply | ~110V-230V 50/60Hz | |||
Power Consumption | 100W | 180W | 350W | |
Dimensions | 484 x 358 x 88mm | |||
Weight | 9.18Kg | 10.32Kg | 12.12Kg | |

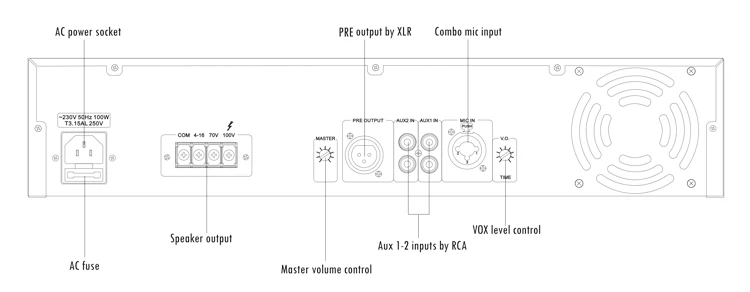

Real Panel
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
By now, we have been successfully conducting both import and export activities worldwide for 10 years with suppliers and buyers.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
