- Place of Origin:CN;GUA
- Model Number:TI-60TB
- Brand Name:ITC
- Rated Power Output:60W
- Speaker Output:70V, 100V
- Frequency Response:80~16KHz(+1dB,-3dB)
- S/N Ratio:MIC1,2,3:66dB;AUX1,2:80dB
- THD:≤0.5%(at 1KHz,1/3 rated power)
- Mute:EMC has highest priority
- Protection:short circuit, overload and overheating protection.
- Power Supply:~220-240V /50Hz OR ~110-120V /60Hz
- Dimension:484*260*44mm
- Certificate:CCC CE

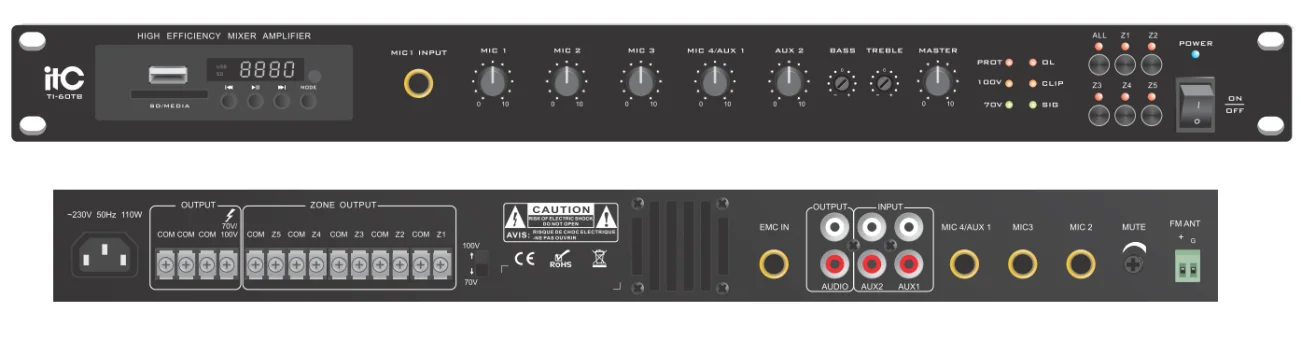

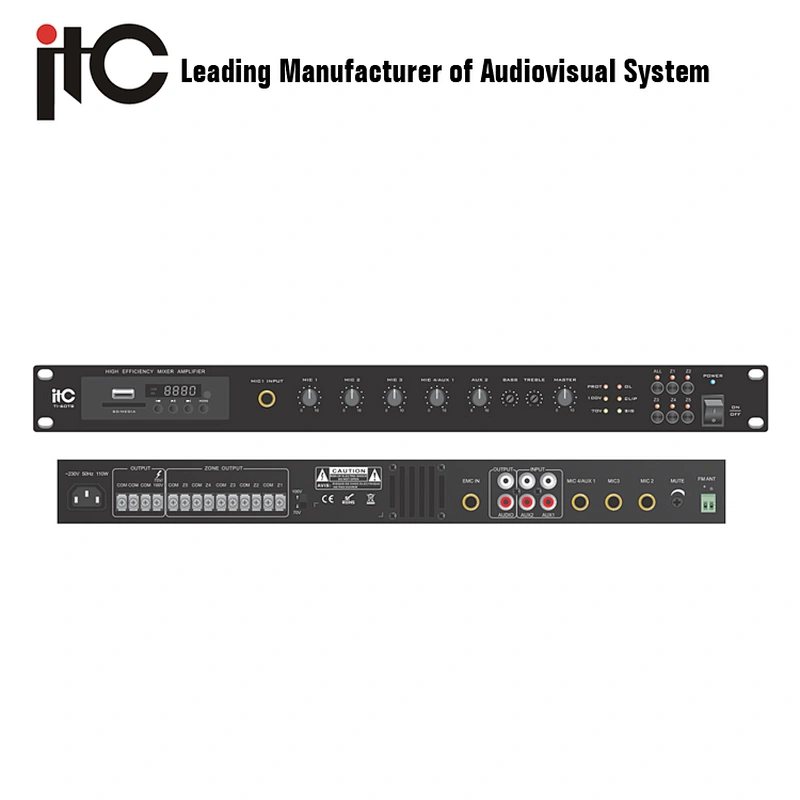

TI-60TB Bluetooth Digital 1U 5 Zone Mixer Amplifier With Tuner/MP3
Features
1. Standard cabinet design (1U), and exquisite SMT process design.
2. With MP3/TUNER/BLUETOOTH, and the LCD screen can display the currently playing track.
3. With remote controller for MP3/TUNER/BLUETOOTH.
4. 1 channel EMC input, 2 channels AUX input, 4 channels MIC input.
5. The priority for input channel EMC> MIC1> MIC2, MIC3, AUX1, AUX2.
6. Can control volume for each input channel, and control the bass effect /treble effect/master volume for all channels.
7. MIC1-4 inputs are unbalanced .
8. With level indicator, overload and protection indicator.
9. This device has a good performance for short circuit, overload, overheating protection.
10. 2 kind output modes: constant voltage output 100V, 70V (non-bridging).
11. Efficient energy-saving switching power supply and energy-efficient design combination perfectly.
12. Touch control 5 zone function.
13. Optional DC 24V power supply.
Specification
Model | TI-60TB |
Speaker Output | 70V, 100V |
Rated Power Output | 60W |
Input Sensitivity&Impedance | MIC1,2,3,4 input : 5mV/600Ω Unbalanced 6.3mm Phone Jack |
AUX1,2 input:350mV/10KΩ Unbalanced RCA | |
EMC input:775mV/10KΩ Unbalanced 6.3mm Phone Jack | |
Output Sensitivity&Impedance | MIX OUT:1000mV/470Ω Unbalanced RCA |
Tone | Bass:±10dB at 100Hz |
Treble:±10dB at 10KHz | |
Frequency Response | 80~16KHz(+1dB,-3dB) |
S/N Ratio | MIC1,2,3:66dB;AUX1,2:80dB |
THD | ≤0.5%(at 1KHz,1/3 rated power) |
Phantom power | 48V(±2V) |
Mute function | MIC 1 has priority over MIC2-4,AUX1-2 audio input |
EMC has the highest priority over all audio inputs | |
Cross talk attenuation | ≥50dB |
Zone | 5 Zone |
Cooling | Forced cooling(half speed at 30℃-50℃;full speed at 50℃-70℃ |
Protection | short circuit, overload and overheating protection. |
Power Supply | ~220-240V /50Hz OR ~110-120V /60Hz |
Power Consumption | 100W |
Dimension | 484×260×44mm |
Weight | 4.2Kg |
