- Place of Origin:CN;GUA
- Model Number:TS-2060WV
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:2 (2.0)
- Power Output:2*60W
- Output Impedance:4~8Ω
- MIC1/2/3:±5mV/600Ω(Unbalanced input)
- AUX:350mV/10KΩ, (Unbalanced input)
- VCD:350mV/10KΩ, (Unbalanced input)
- EFFECTOR IN:350mV10KΩ(Unbalanced input)
- Indicator Light:power light
- Cooling-down Method:air-cooled
- Supply Voltage:~220-240V 50/60Hz
- Indicator:Power indicator

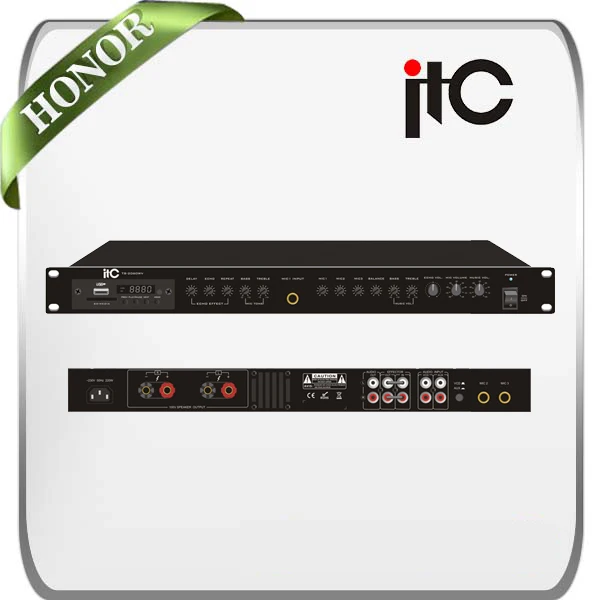

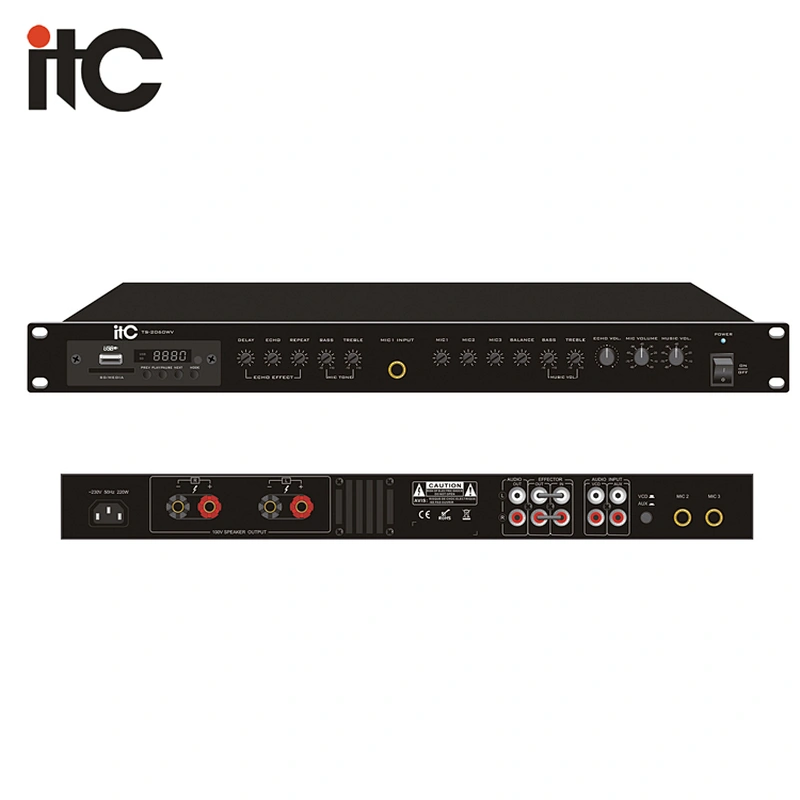

TS-2060WV Switching Function 120W 1U Class H Power Multimedia Professional Amplifier
Features
* Two channels audio input, with switching function.
* Three channels microphone input with independent gain adjustment function.
* With professional digital echo delay circuit to make the voice more natural.
* MP3 player with SD/USB interface, with Bluetooth and digital display function
* With MP3 recording function, your songs and speech can be recorded and played
by MP3 anywhere and anytime.
* 60Wx2/120Wx2@100V constant voltage output, can be connected with two
groups of constant pressure speakers.
* Volume and the effect use hidden regulation, to Ensure reliable operation and
anti-misoperation.
* With forced cooling fan to enhance the rejection of heat, can meet the long time
working.
* Using 1U chassis design, with switching power supply and type H power amplifier
chip combination, efficient, light weight, beautiful appearance.
Specifications
Model | TS-2060WV | TS-2120WV | |
Rated Power Output | 2×60W | 2×120W | |
Constant Pressure Output | 100V | ||
Input Sensitivity And Impedance | MIC1/2/3:±5mV/600Ω(Unbalanced input); | ||
AUX: 350mV/10KΩ, (Unbalanced input) | |||
VCD: 350mV/10KΩ, (Unbalanced input) | |||
EFFECTOR IN:350mV10KΩ, (Unbalanced input) | |||
Front Output | EFFECTOR OUT:350mV470Ω | ||
AUDIO OUT:1V±50mV/470Ω | |||
Microphone Tone | low-frequency:±10dB at 100Hz | ||
high frequency:±10dB at 10KHz | |||
Music Tone | low-frequency:±10dB at 100Hz | ||
high frequency:±10dB at 10KHz | |||
Effectors Parameters | DELAY: 80ms-240ms; ECHO : 1-12 | ||
REPEAT: 0.1s-2s | |||
Frequency Response | AUX,VCD: 20Hz(±3dB)--20KHz(±3dB) | ||
MIC: 50Hz(±3dB)--16kHz(±3dB) | |||
Noise-signal Ratio | Mic :≥65dB, | ||
music: ≥70dB | |||
Harmonic Distortion | Distortion of power amplifier on rated output power≤1% | ||
Indicator Light | power light | ||
Cooling-down Method | air-cooled | ||
Guard Mode | Over temperature / short circuit | ||
Supply Voltage | ~220-240V 50/60Hz | ||
Dimension | 484x300x44mm | ||
Fuse Size | T2A-250V-5x20 | T3.15A-250V-5x20 | |
Power Consumption | 200W | 300W | |
Weight | 3.6Kg | 4.0Kg | |
