- Place of Origin:CN;GUA
- Model Number:T-60DTB
- Brand Name:ITC
- Rated Power Output:60W/120W/240W
- Speaker Output:100V
- Frequency Response:80Hz~16KHz( +1dB, -3dB)
- S/N Ratio:MIC 1, 2, 3: 66dB, AUX 1, 2: 85dB
- THD:Less than 0.5% at 1KHz, 1/3 rated power
- Mute:EMC has highest priority
- Protection:Over-heat, overload, short circuit, etc
- Power Supply:~220V 50Hz
- Dimension:484*295*44mm
- Certificate:CCC CE

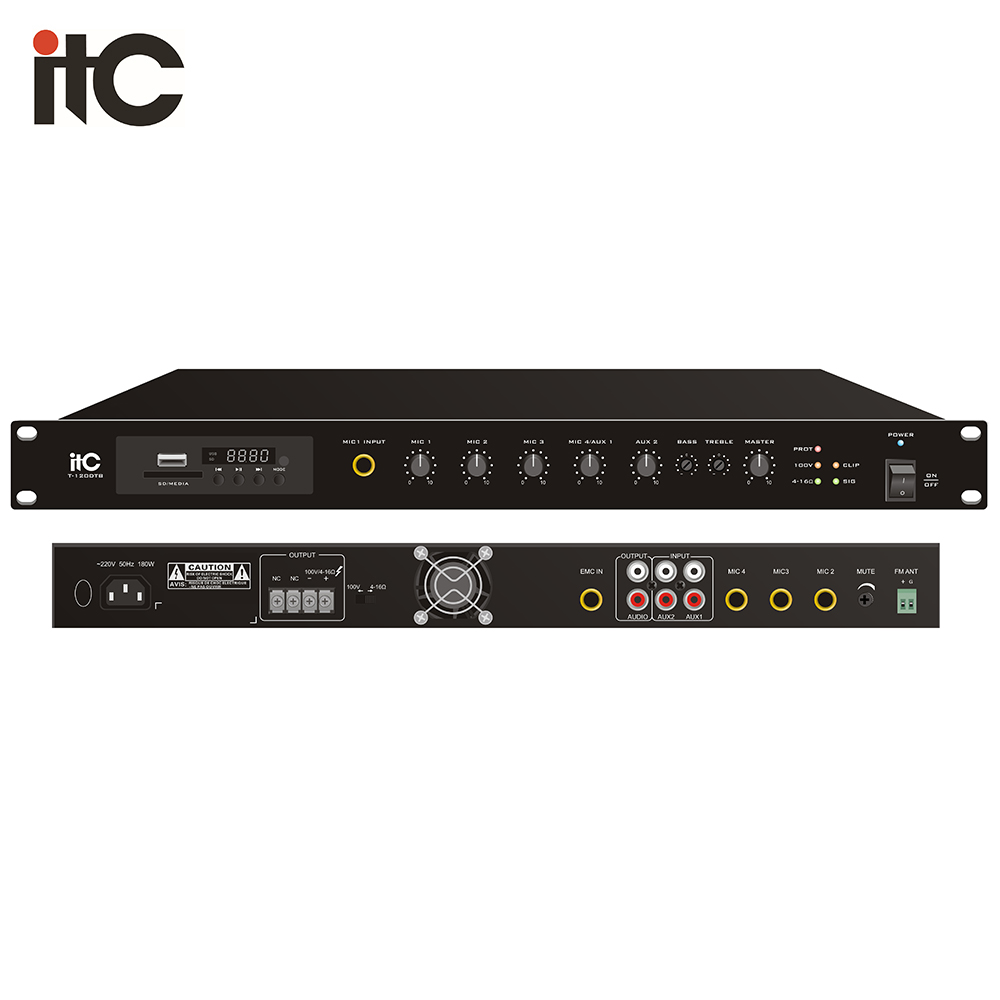

T-60DTB SMT Design 1U 60W Mixer Amplifier With MP3/Tuner/Bluetooth
Product description
Digital Mixer Amplifier with MP3/TUNER/Bluetooth, for background music playback of small and medium-sized indoor venues such as small and medium-sized supermarkets, shopping malls, and leisure cafes.
Features
* Standard rack mounted design (1U), exquisite SMT process design.
* Support mp3/TUNER/Bluetooth remote control function, with remote control remote and the control distance can up to 8 meters.
* It has USB interface and SD card interface, integrated MP3 player module, with automatic priority playing audio function, digital screen can display the currently playing track of USB.
* Integrated Bluetooth module to support music playback via Bluetooth of the mobile phone.
* Integrated TUNER module with FM radio antenna port.
* 1 channel EMC input, 2 channel AUX input, 4 channel MIC input.
* Channel priority function EMC>MIC1>MIC2, MIC3, MIC4,AUX1, AUX2,.MP3
* Each input has independent volume adjustment, and the total volume has treble, bass adjustment and volume control function.
* The device is equipped with level indication, overload and protection indicators.
* The device has good self-protection such as short circuit, overload and overheating.
* Two output modes: constant voltage output 100V, constant resistance output 4-16Ω.
* The high-efficiency energy-saving switching power supply is perfectly combined with the high-energy saving and ultra-stable design of class D digital power amplifier.
* Wide voltage supply: 220V-240V can work normally.
Specification
Model | T-60DTB | T-120DTB | T-240DTB | ||||||
Output Terminal | 100V | ||||||||
Output Power | 60W | 120W | 240W | ||||||
The Input Sensitivity And Impedance | MIC1, 2, 3, 4input:5mV/600Ω Unbalanced 6.3 connector | ||||||||
AUX1, 2 input:350mV/10KΩ Unbalanced RCA connector | |||||||||
EMC input:775mV/10KΩUnbalanced 6.3 connector | |||||||||
The Output Sensitivity & Source Impedance | MIX OUT:1000mV/470Ω Unbalanced RCA connector | ||||||||
Tone | Bass: ±10dB at 100Hz | ||||||||
Treble: ±10dB at 10KHz | |||||||||
Frequency Response | 80Hz~16KHz (+1dB, -3dB) | ||||||||
SNR | MIC1, 2, 3:66dB; AUX1, 2:85dB | ||||||||
THD | Less than 0.5%( at 1KHz, 1/3 rated power) | ||||||||
Mute Control | EMC has highest priority | ||||||||
MIC 1 priority over MIC2-4, AUX1-2 audio input, | |||||||||
Channel Crosstalk Attenuation | ≥50dB | ||||||||
Heat Dissipation | Flank in and rear panel out to force fan cooling, fan starts | ||||||||
when amplifier turned on, infinitely variable speeds | |||||||||
Protection | Over-heat, overload, short circuit, etc | ||||||||
Power Supply | ~220V 50Hz | ||||||||
Power Consumption | 100W | 180W | 350W | ||||||
Dimension | 484×285×44mm | ||||||||
Weight | 4.3Kg | 4.5Kg | 5.1Kg | ||||||
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
