Factory Price Public Address Sound System Studio PA System

Factory Price Public Address Sound System Studio PA System

Model NO.: T-8000 System
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 1000 set / Week
Country of Origin: Guangzhou, Shenzhen and HK

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:T-8000 System
Brand Name:ITC
Line 5-7 Input:MIC: 5mV/600Ω, Line: 350mV3/10KΩ, Phantom Power: +48V
Line 1-4 Input:195mV -2V/10KΩ
Microphone 1:5mV-280mV/600Ω
Frequency Response:MIC: 80Hz~18KHz(+1/-3dB), line: 20Hz~20KHz (+1/-3dB)
Remote Paging Station:300mV-1.1V/10KΩ
Remote Control Panel:300mV-1.1V/10KΩ
S/N of Microphone:>65dB
Tone Control:100Hz-±10dB, 10KHz±10dB
Output:0.775V/600Ω
EMC:775mV/10KΩ

Factory Price Public Address Sound System Studio PA System

Your Preferred Choice for Economical PA System

Descriptions

The matrix & paging controller is highly integrated, which is cater for multi-zone paging and multi-sources selection. It’s complete solution for multi-zone, multi-functional venues like entertainment places, large-scale hotel, sports centers, shopping mall, airportetc.

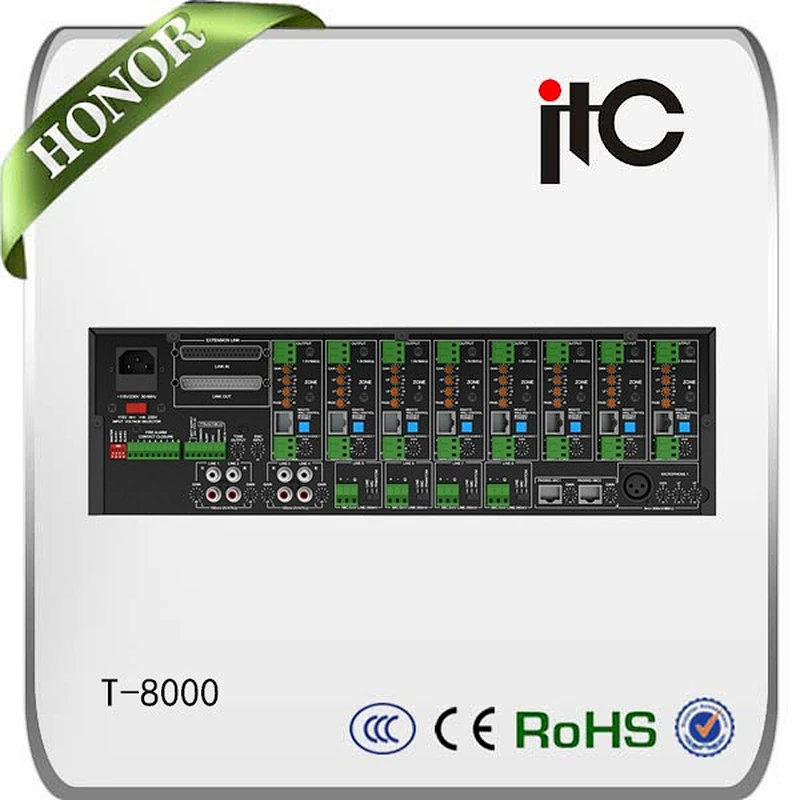

T-8000 Audio Matrix Controller Details

Features

* With up to 8 music source input, 8 remote control panels, 2 remote paging consoles and 1 microphone input, all of these input couble be freely linked to different 8 zone output simultaneously.

*1 remote paging console and 3 another remote control panels are available when expansion control, multi-zone paging and multiple audio sources is needed.

* The controller is expandable to 8*32 matrix system via CAT 5 cable to do cascade.

*Each channel is provided with individual bass/treble control and volume control. Master volume and Monitor volume control is provided as well as.

*8 fire alarm receiving port is equipped to activate internal alert.

* 3 kinds of pre-recorded audio including alert, evacuation message and alarm are provided.

* Both paging consoles and remote control panels are linked via standard CAT 5.

*4 hot keys are for playing BGM and do paging in the whole area directly.

Application

Ⅰ.Economic T-8000 PA System Solution for Hotel

Ⅱ. Cost-effective T-8000 Public Address System for Supermarket

T-8000 PA System Features

1.With all basic public address function; play different background music in different areas;
2.Built in voice alarm generator input and pre-recorded message to evacuate hotel’s customers highly effective when emergency;

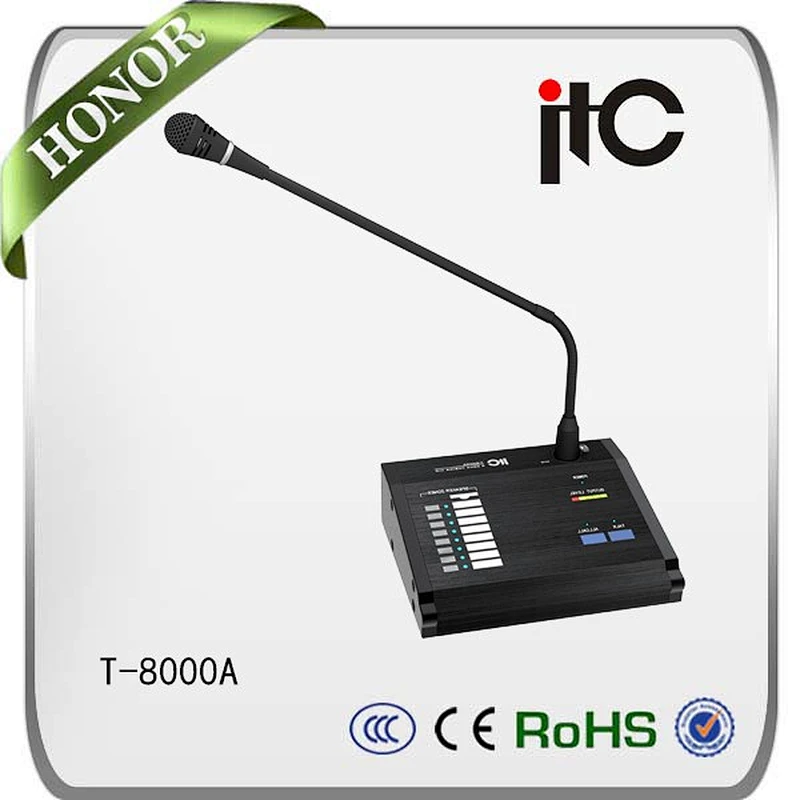

3.Could connect several remote paging mics (T-8000A) to broadcast from different areas on time.

Product List

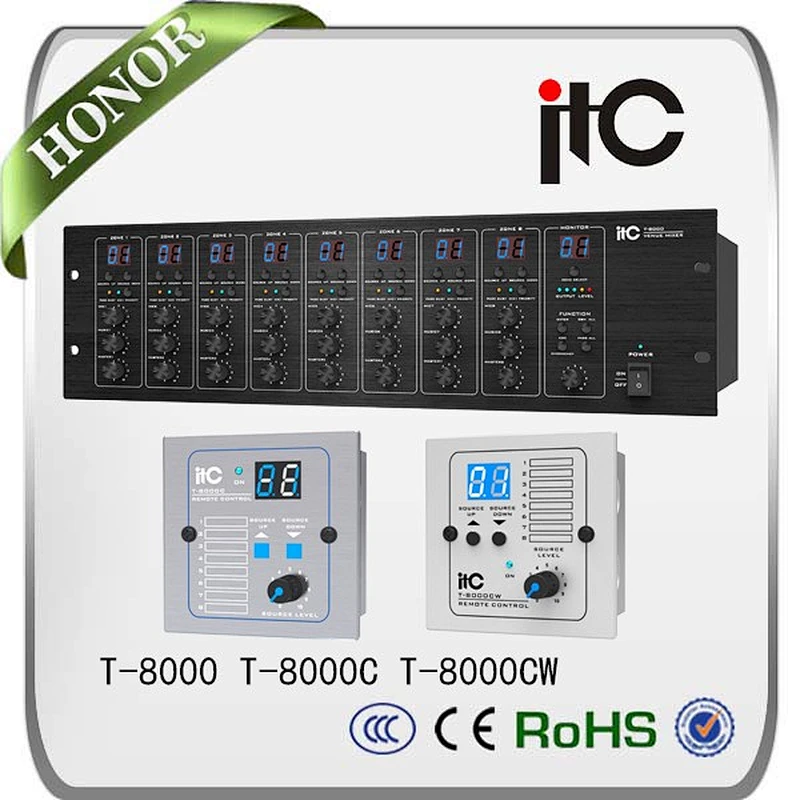

(A) System Controller T-8000

(B) Cascading Controller T-8000

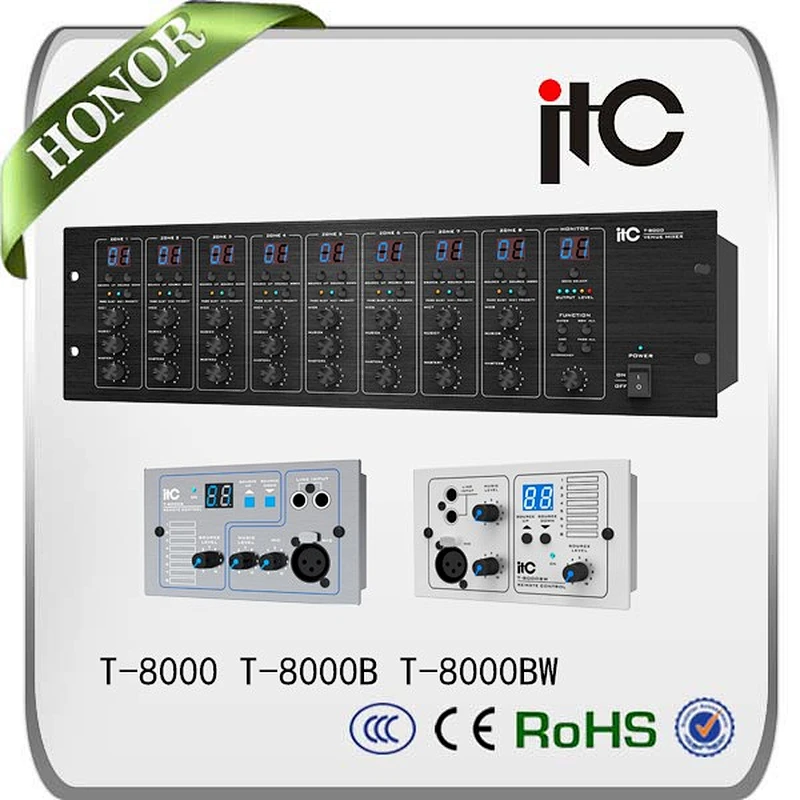

(D) Remote Control Panel T-8000B

(E) CD MP3 Player with Radio Tuner T-2221

(F) 4 Channel Power Amplifier T-4S120

(G)CeilingSpeakerT-105

Specifications

Model	T-8000
Line 1-4 Input	195mV -2V/10KΩ
Line 5-7 Input	MIC: 5mV/600Ω, Line: 350mV3/10KΩ, Phantom Power: +48V
Microphone 1	5mV-280mV/600Ω
Remote Paging Station	300mV-1.1V/10KΩ
Remote Control Panel	300mV-1.1V/10KΩ
Tone Control	100Hz-±10dB, 10KHz±10dB
Output	0.775V/600Ω
Frequency Response	MIC: 80Hz~18KHz(+1/-3dB), line: 20Hz~20KHz (+1/-3dB)
EMC	775mV/10KΩ
S/N of Microphone	>65dB
Line of S/N	>85dB
Degree Of Separation	>40dB
Crosstalk	>65dB
THD	<0.07%
Indicator	Power, Mic1, paging busy & monitor output
Priority	Mic1, voice alarm, local mic paging, remote zone paging, line 1-8
Communication Speed	4800bps
Communication Port	RJ45
Communication Protocol	RS485
Power Consumption	20W
Power Supply	~110V/60Hz and ~ 240V/50Hz & DC 24V
Dimensions	484x304x132mm
Weight	10.24Kg
