- Place of Origin:CN;GUA
- Model Number:T-8000 Series
- Brand Name:ITC
- Line 1-4 Input:195mV -2V/10KΩ
- Line 5-7 Input:MIC: 5mV/600Ω, Line: 350mV3/10KΩ, Phantom Power: +48V
- Microphone 1:5mV-280mV/600Ω
- Remote Paging Station:300mV-1.1V/10KΩ
- Remote Control Panel:300mV-1.1V/10KΩ
- Tone Control:100Hz-±10dB, 10KHz±10dB
- Output:0.775V/600Ω
- Frequency Response:MIC: 80Hz~18KHz(+1/-3dB), line: 20Hz~20KHz (+1/-3dB)
- EMC:775mV/10KΩ
- S/N of Microphone:>65dB
Top Selling Cheap Commercial Outdoor PA Sound Systems For School And Supermarket
Your Preferred Choice for Economical PA System
The matrix & paging controller is highly integrated, which is cater for multi-zone paging and multi-sources selection. It’s complete solution for multi-zone, multi-functional venues like entertainment places, supermarket, large-scale hotel, sports centers, shopping mall, airportetc.

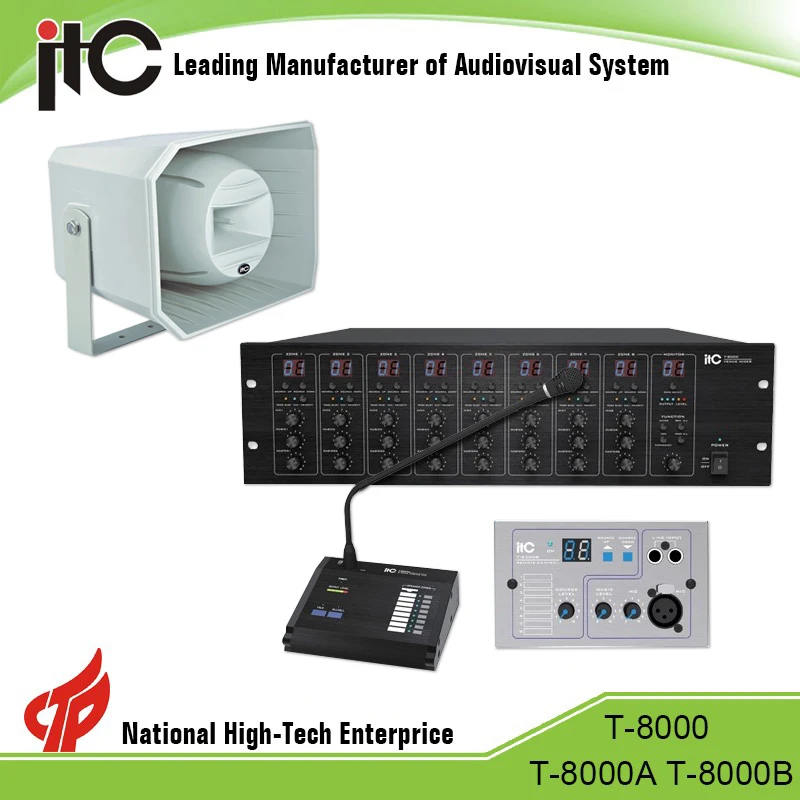

T-8000Audio Matrix Controller Details
Features
* With up to 8 music source input, 8 remote control panels, 2 remote paging consoles and 1 microphone input, all of these input couble be freely linked to different 8 zone output simultaneously.
* 1 remote paging console and 3 another remote control panels are available when expansion control, multi-zone paging and multiple audio sources is needed.
* The controller is expandable to 8*32 matrix system via CAT 5 cable to do cascade.
* Each channel is provided with individual bass/treble control and volume control. Master volume and Monitor volume control is provided as well as.
* 8 fire alarm receiving port is equipped to activate internal alert.
* 3 kinds of pre-recorded audio including alert, evacuation message and alarm are provided.
* Both paging consoles and remote control panels are linked via standard CAT 5.
* 4 hot keys are for playing BGM and do paging in the whole area directly.
Application

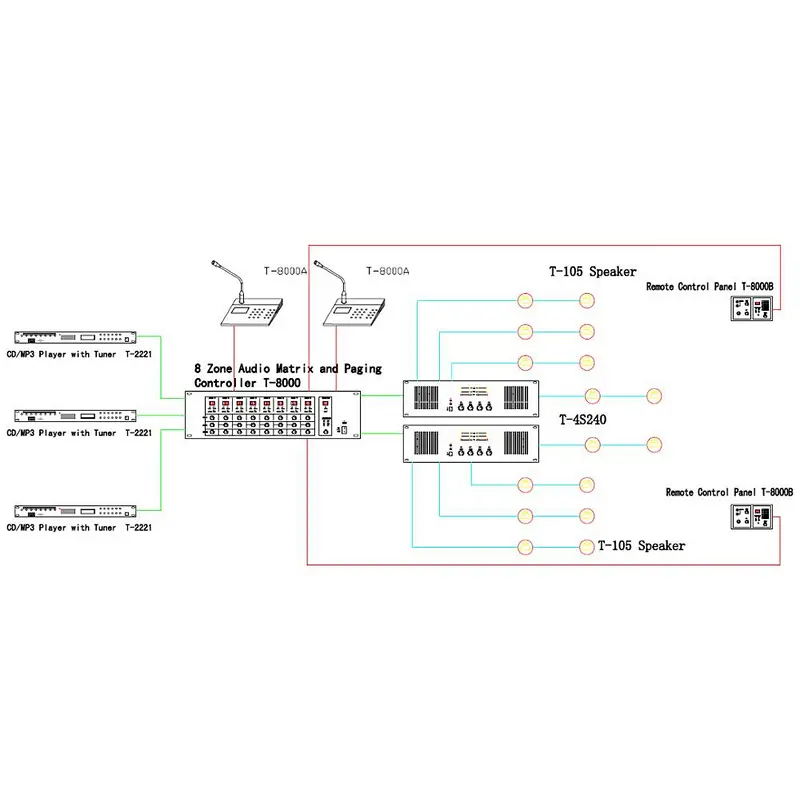

I. Cost-effective T-8000 Public Address System for Supermarket
II.Economic T-8000 PA System Solution for Hotel
Product List

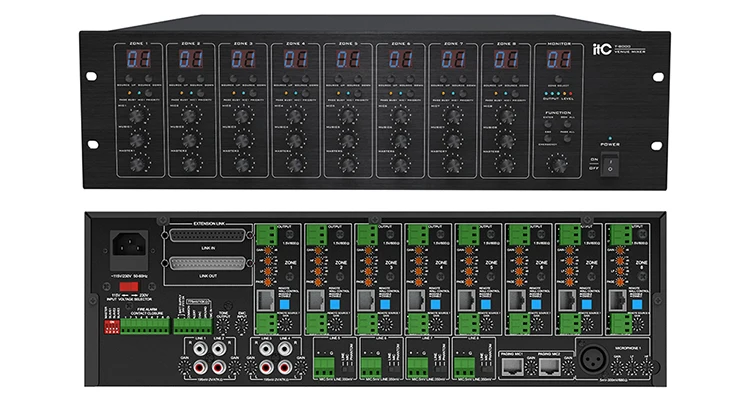

(A) System Controller T-8000
(B) Cascading Controller T-8000

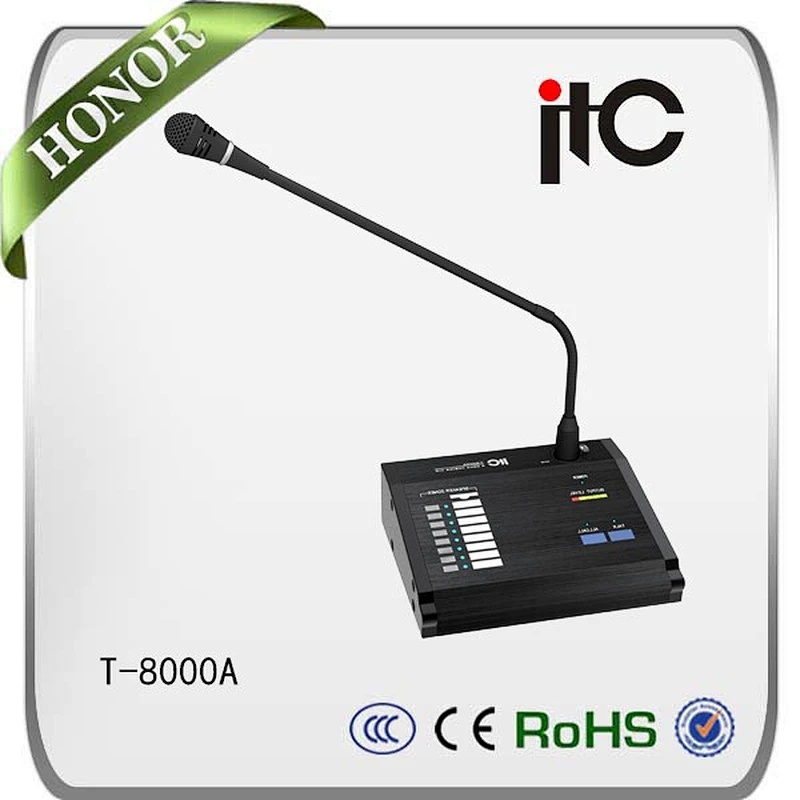

(C) Remote Paging Microphone T-8000A

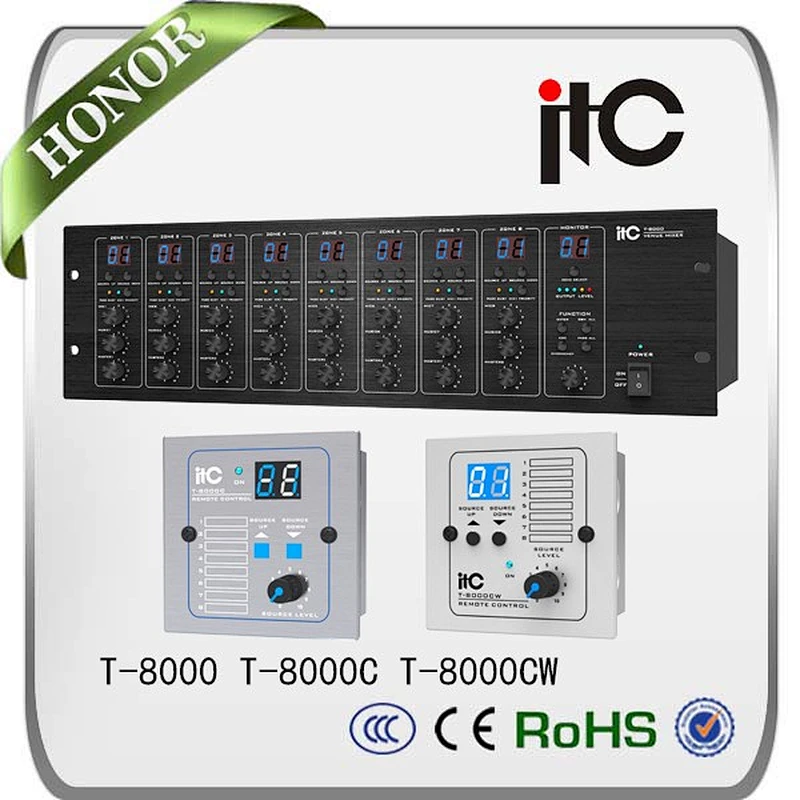

(D) Remote Control Panel T-8000B
(E) CD MP3 Player with Radio Tuner T-2221
(F) 4 Channel Power Amplifier T-4S120
(G)CeilingSpeakerT-105
Model | T-8000 |
Line 1-4 Input | 195mV -2V/10KΩ |
Line 5-7 Input | MIC: 5mV/600Ω, Line: 350mV3/10KΩ, Phantom Power: +48V |
Microphone 1 | 5mV-280mV/600Ω |
Remote Paging Station | 300mV-1.1V/10KΩ |
Remote Control Panel | 300mV-1.1V/10KΩ |
Tone Control | 100Hz-±10dB, 10KHz±10dB |
Output | 0.775V/600Ω |
Frequency Response | MIC: 80Hz~18KHz(+1/-3dB), line: 20Hz~20KHz (+1/-3dB) |
EMC | 775mV/10KΩ |
S/N of Microphone | >65dB |
Line of S/N | >85dB |
Degree Of Separation | >40dB |
Crosstalk | >65dB |
THD | <0.07% |
Indicator | Power, Mic1, paging busy & monitor output |
Priority | Mic1, voice alarm, local mic paging, remote zone paging, line 1-8 |
Communication Speed | 4800bps |
Communication Port | RJ45 |
Communication Protocol | RS485 |
Power Consumption | 20W |
Power Supply | ~110V/60Hz and ~ 240V/50Hz & DC 24V |
Dimensions | 484x304x132mm |
Weight | 10.24Kg |
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our productare complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
