- Place of Origin:CN;GUA
- Model Number:T-8000 Series-speaker
- Brand Name:ITC
- Line 1-4 Input:195mV -2V/10KΩ
- Line 5-7 Input:MIC: 5mV/600Ω, Line: 350mV3/10KΩ, Phantom Power: +48V
- Microphone 1:5mV-280mV/600Ω
- Remote Paging Station:300mV-1.1V/10KΩ
- Remote Control Panel:300mV-1.1V/10KΩ
- Tone Control:100Hz-±10dB, 10KHz±10dB
- Output:0.775V/600Ω
- Frequency Response:MIC: 80Hz~18KHz(+1/-3dB), line: 20Hz~20KHz (+1/-3dB)
- EMC:775mV/10KΩ
- S/N of Microphone:>65dB
Long functional life pa system surround sound ceiling speaker system
Your Preferred Choice for Economical PA System
The matrix & paging controller is highly integrated, which is cater for multi-zone paging and multi-sources selection. It’s complete solution for multi-zone, multi-functional venues like entertainment places, large-scale hotel, sports centers, shopping mall, airportetc.
T-105A Ceiling Speaker Details
Features
* With up to 8 music source input, 8 remote control panels, 2 remote paging consoles and 1 microphone input, all of these input couble be freely linked to different 8 zone output simultaneously.
*1 remote paging console and 3 another remote control panels are available when expansion control, multi-zone paging and multiple audio sources is needed.
* The controller is expandable to 8*32 matrix system via CAT 5 cable to do cascade.
*Each channel is provided with individual bass/treble control and volume control. Master volume and Monitor volume control is provided as well as.
*8 fire alarm receiving port is equipped to activate internal alert.
* 3 kinds of pre-recorded audio including alert, evacuation message and alarm are provided.
* Both paging consoles and remote control panels are linked via standard CAT 5.
*4 hot keys are for playing BGM and do paging in the whole area directly.
Application
Ⅰ.Economic T-8000 PA System Solution for Hotel
Ⅱ. Cost-effective T-8000 Public Address System for Supermarket
T-8000 PA System Features
1.With all basic public address function; play different background music in different areas;
2.Built in voice alarm generator input and pre-recorded message to evacuate hotel’s customers highly effective when emergency;
3.Could connect several remote paging mics (T-8000A) to broadcast from different areas on time.

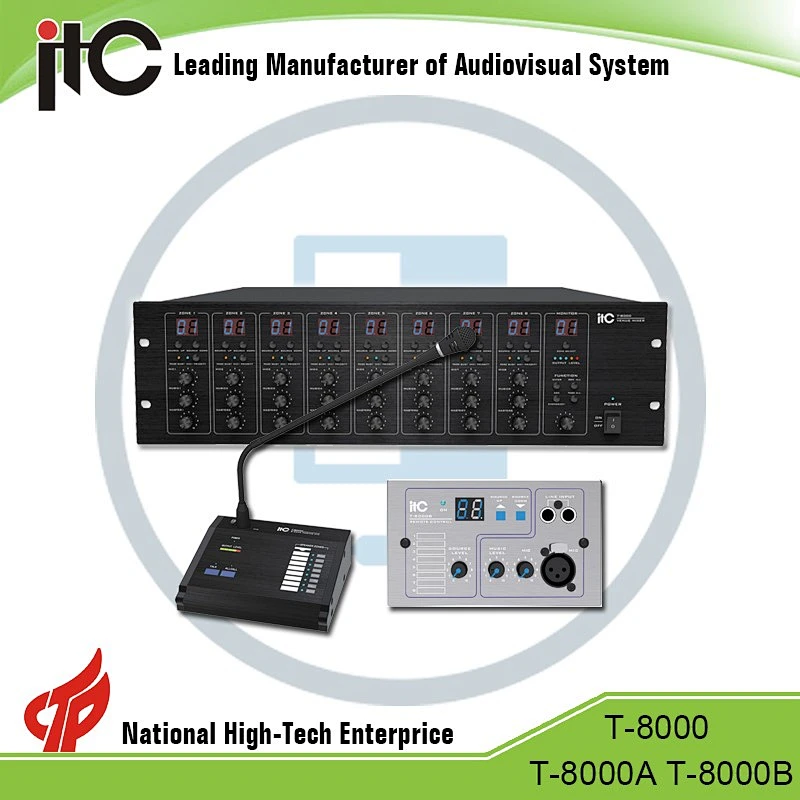

Product List
(A) System Controller T-8000
(B) Cascading Controller T-8000
(C) Remote Paging Microphone T-8000A
(D) Remote Control Panel T-8000B
(E) CD MP3 Player with Radio Tuner T-2221
(F) 4 Channel Power Amplifier T-4S120
(G)CeilingSpeakerT-105
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
