ITC T-8000 Series Audio Remote Volume Control for PA System

ITC T-8000 Series Audio Remote Volume Control for PA System

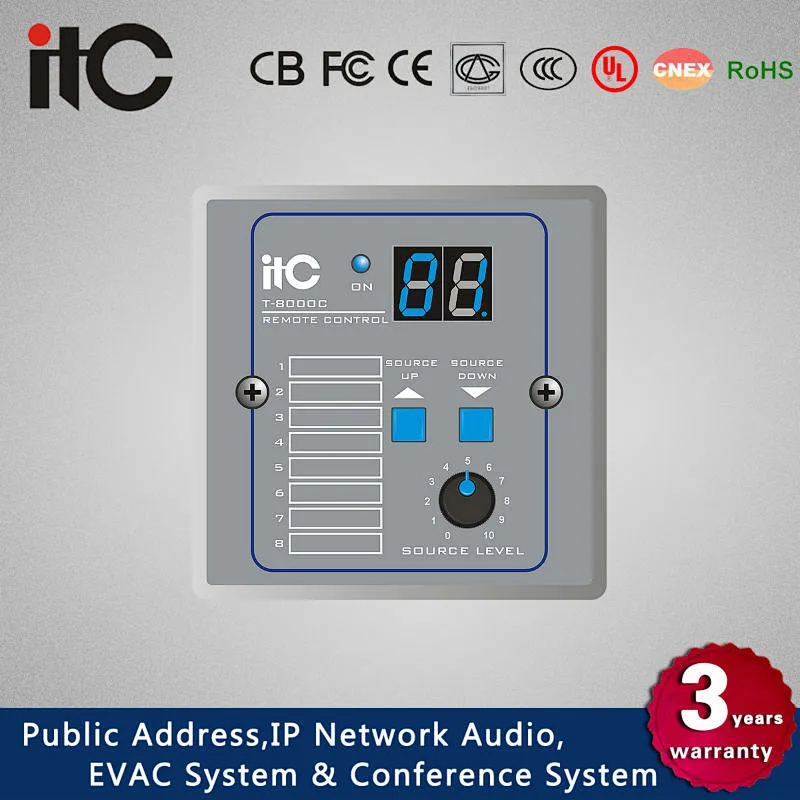

* The T-8000C remote control module is connected with T-8000 through universal industrial standard CAT 5 for each eight zone' s volume adjustment at a remote and different location from the control center.

* Each controller provides eight RJ45 ports for the remote control module.

* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.

* The remote control module family also has higher functional module of T-8000A and microphone module of T-8000D.

* Zone LED indicator with up/down buttons.

* Volume control is provided for overall output level control.

* DC 24V power supply from controller, low power consumption 5W.

* Analog to digital conversion working principle to adjust controller' s volume.
