- Place of Origin:CN;GUA
- Model Number:T-8000B/T-8000BW
- Brand Name:ITC
- Function:Volume control & channel selector
- Qty:8 pcs for each controller
- Input:Line and mic inputs
- MIC Input Sensitivity:5mV/600Ω
- AUX Input Sensitivity:350mV/10KΩ
- Audio Output:0dB/600Ω
- Frequency Response:100Hz~18KHz (±1dB)
- S/N Ratio:MIC Better than 65dB Aux Better than 75dB
- Power Supply:DC 24V
- Power Consumption:5W

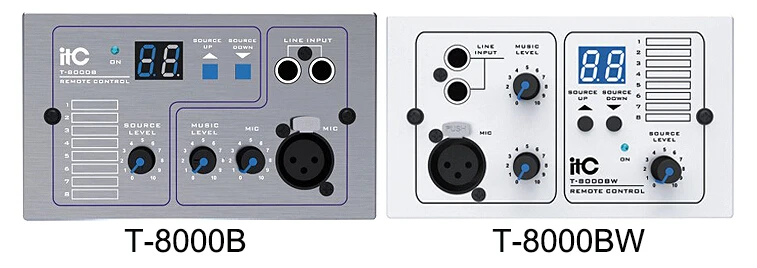

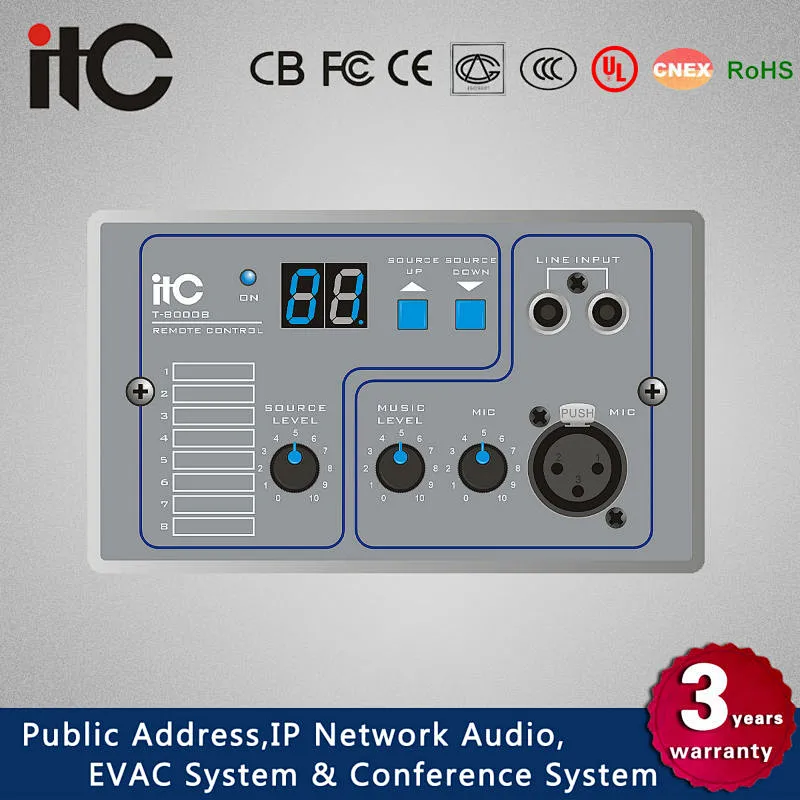

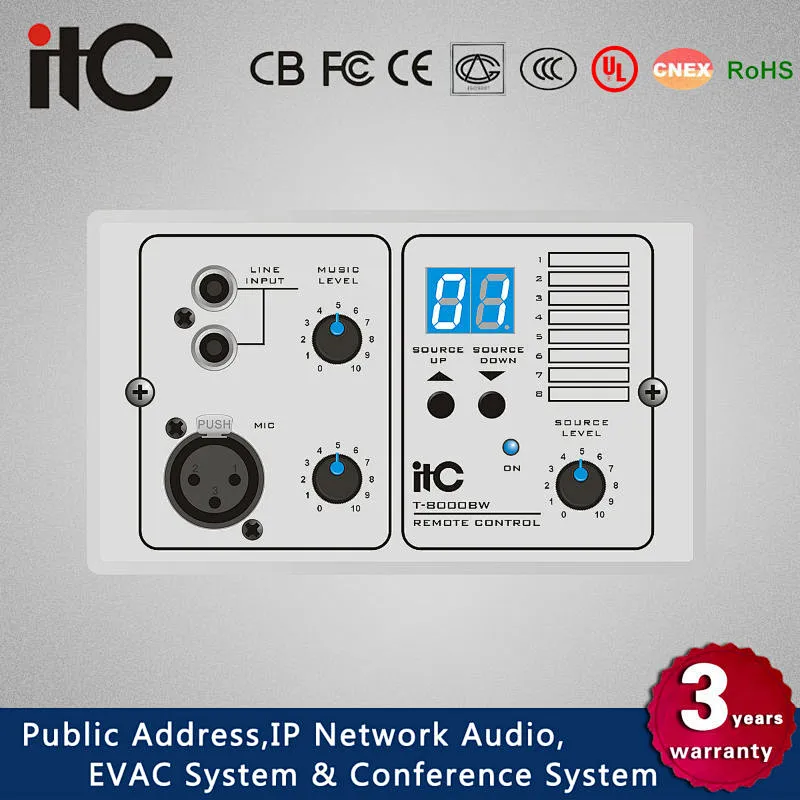

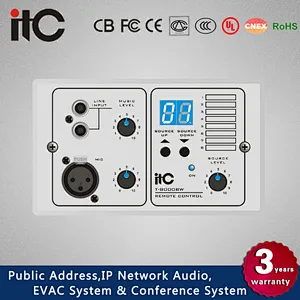

ITC T-8000 Series Remote Control Paging Station
ITC T-8000 Series Remote Control Paging Station
* The T-8000B remote control with audio input module is connected with T-8000 through universal industrial standard CAT 5 for each eight zone' s volume adjustment or remote line and microphone input at a remote and different location from the control center.
* Each controller provides eight RJ45 ports for the remote control with audio input module.
* The CAT 5 wiring is not only featured of cost-effective, convenient layout, but also integration of RS 485 communication, audio transmission and DC 24V power supply together.
* This module family also has simpler functional module of T-8000C and T-8000D.
* Remote line by dual RCA and mic by XLR inputs with gain controls.
* Zone LED indicator with up/down buttons.
* Volume control is provided for overall output level control.
* DC 24V power supply from controller, low power consumption 5W.
* Analog to digital conversion working principle to adjust controller' s volume.
ITC T-8000 Series Remote Control Paging Station
Model | T-8000B |
Serial Communication Speed | 4800bps |
Serial Communication Distance | Maximums 1Km |
MIC Input Sensitivity | 5mV/600Ω |
AUX Input Sensitivity | 350mV/10KΩ |
Audio Output | 0dB/600Ω |
Frequency Response | 100Hz~18KHz (±1dB) |
S/N Ratio | MIC Better than 65dB Aux Better than 75dB |
THD | Less than 0.1% at 1KHz |
Controls | Volume control |
Power Supply | DC 24V |
Power Consumption | 5W |
Weight | 500g |
Dimensions | 86x146x33mm |
