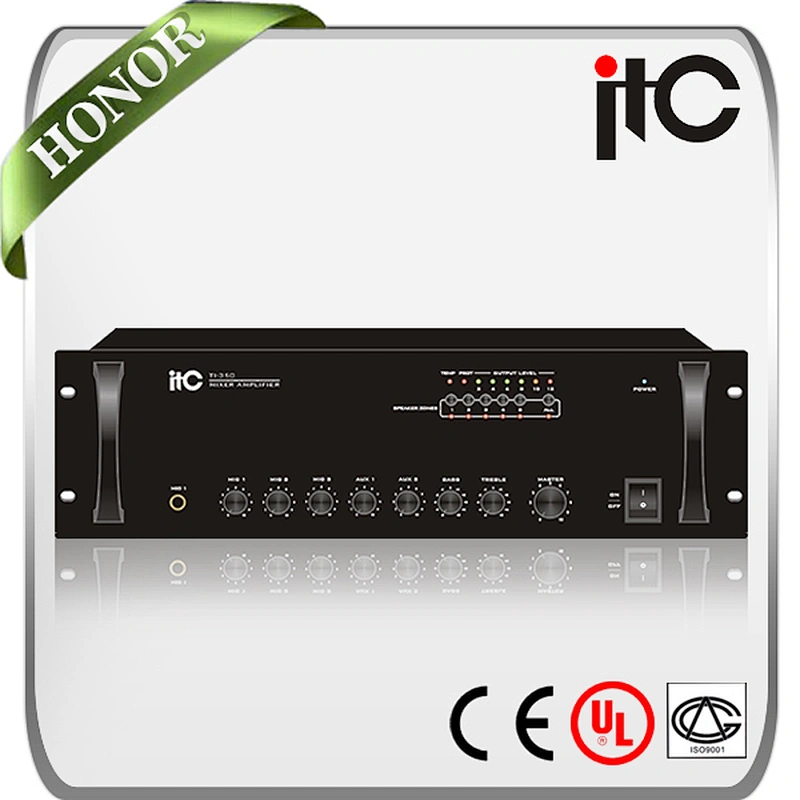

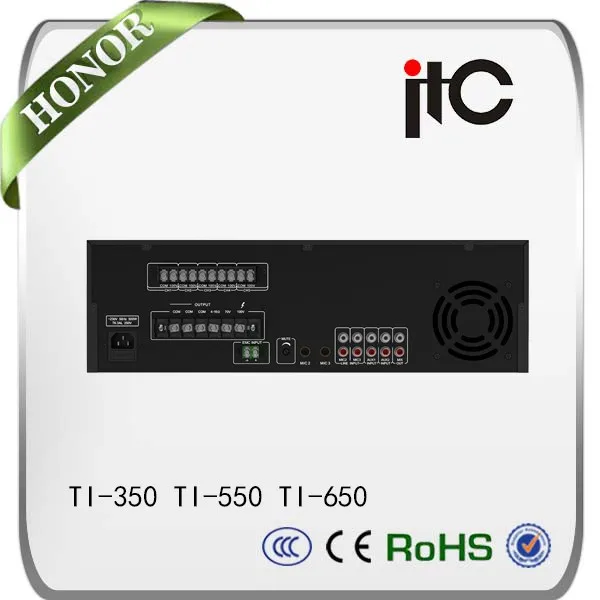

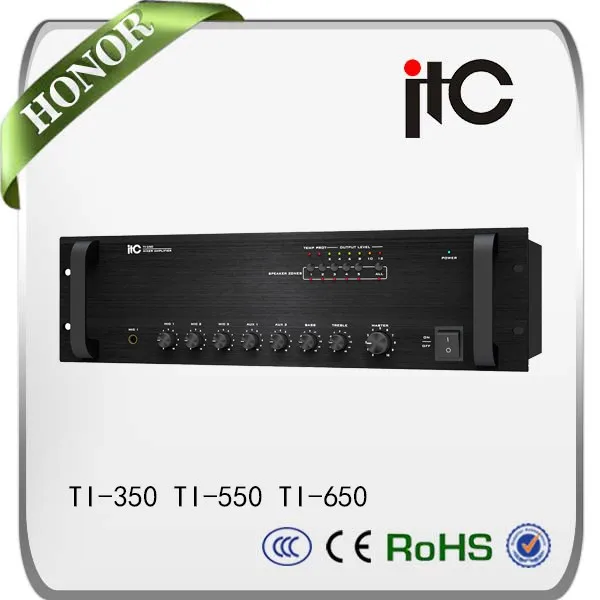

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

• Place of Origin:CN;GUA
• Model Number:TI-350/TI-550/TI-650
• Brand Name:ITC
• Type:PROFESSIONAL AMPLIFIER
• Channels:5 (4.1)
• Rated Power Output:350W 500W 650W
• Speaker Output:70V, 100V & 4~16Ω
• Output Sensitivity:1000mV
• Impedance:470Ω
• Tone:Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz
• Frequency Response:50Hz~16KHz(+1dB, -3dB)
• THD:Less than 0.5% at 1KHz, 1/3 rated power
• Crosstalk:≤50dB
• Power Supply:~110V/60Hz or~230V/50Hz or DC 24V
• Power Consumption:500W 750W 900W

ITC TI-350 Series 350W 500W 650W PA System 5 Zone Mixer Amplifier

5 zone mixer amplifiers have power ratings from 60W, 120W, 240W, 350W, 500W to 650W. They are featured of 3 microphone inputs, 2 aux inputs and 1 EMC input. Priority muting is achieved via EMC for overriding other inputs except Mic1 on front panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls and master volume control are provided for overall tone control. 70V, 100V and low impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit, overload and high temp.

Feature

* Rated power from 60W, 120W, 240W, 350W, 500W to 650W

* 2U rack mount (less than 350W) and 3U rack mount design

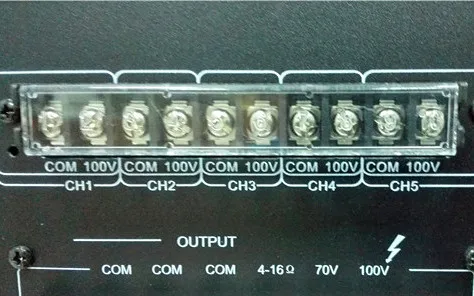

* 70V, 100V and low impedance 4-16 ohm speaker output

* 5 zone and all zone speaker terminals

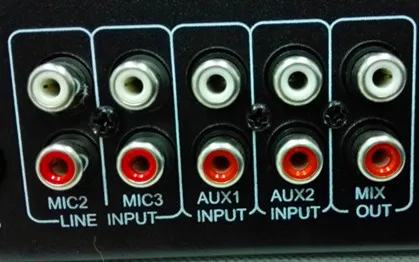

* 3 Mic inputs by phone jack type

* Mic 1 with VOX priority and VOX level on front panel

* Mic 2-3 by phone jack on rear panel

* 2 Aux Inputs and 2 line inputs for spare use

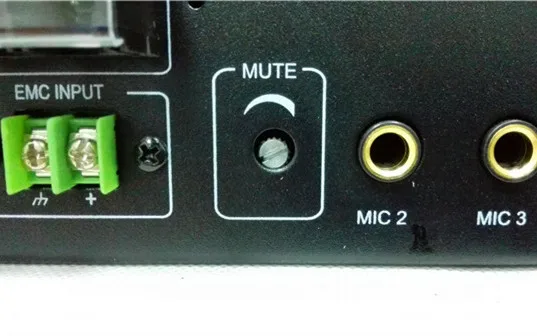

* One EMC priority input

* EMC has priority over all inputs except MIC1

* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control

* Short circuit, overload and high temp protection

Optional

* DC 24V available on less than 500W model

* Panel with/without handhold

* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier Switch
