- Place of Origin:CN;GUA
- Model Number:TI-1206S
- Brand Name:ITC
- Rated Power Output:120W
- Speaker Zone 1~5 Output:25W MAX
- Iutput Sensitivity/Impedance:5mV 600Ω/350mV 10KΩ BAL
- S/N Ratio:Better than 75dB
- Frequency Response:80Hz~16KHz
- Tone:±10dB
- Phantom Power:+ 48V
- THD:Less than 0.1% at 1KHz, 1/3 rated power
- Power Supply:~110-230V 50/60Hz & DC 24V
- Dimensions:484x310x88 mm

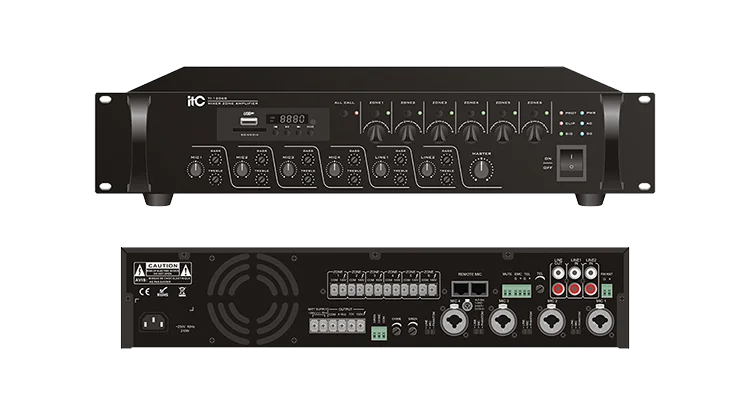

TI-1206S 120W RMS 6 Zones Mixer Amplifier with Mp3
Features
* 4 Channel Microphone and 2 line input, treble and bass can be controlled separately .
* 6 Channel Partition output, and partition volume independent control.
* Built in bell. Bell tone optional: 4 tones and 2 tones (built-in), alarm generator.
* Mp3 decoding module supports usb/sd/bluetooth/fm radio playback function. With the MP3 remote control,
supportpower off memory function, MIC recording function.
* When the alarm generator starts, background music will be closed and6 partition output will automaticallyopen
to maximum output volume.
* Built in 24V DC power input.
* Mic1- 4 built-in 48V phantom power supply, and switch can be independently controlled.
* T-216 partition control microphone can remotely control partition output, and it can be cascaded up to 6 units.
* Audio input with independent control on tone control and total volume control.
* A variety of indicator lights (signal, the top of the roof, to protect the LED indicator)
* Using fan forcible cooling structure, allowing the machine to work for a long time.
* There are 5 priority functions:
The first level EMC priority: when input the EMC alarm signal, all the sound source will be turn off, and the 6 Channel partition output will automatically open.
Second level: tel/rem mic override mic1-4, line1-2 and bell tone.
Third level: built-in alarm generator override bell sound, mic1-4, line1-2, 6 partition output will automatically open
Fourth level: built-in bell tone override mic1-4, line1-2.
Fifth level: built-in mic1 override mic2-4, line1-2.
* Constant voltage output: 70V, 100V, rated resistance output: 4-16 Ω.
Specification
Model | TI-1206S | |
Amplifier Section (Load 100V Output) | Rated Output Power (THD 1%) | 120W(RMS) |
Speaker Zone 1~5 Output | 25W MAX | |
Mic Input Section (Mic 1~4 In@1KHz) | Input Sensitivity/Impedance | 5mV 600Ω/350mV 10KΩ BAL |
S/N Ratio | Better than 75dB | |
Frequency Response (±3dB) | 80Hz~16KHz | |
Tone Control (Bass:100Hz, Treble:10KHz) | ±10dB | |
Phantom Power | + 48V | |
Line Input Section (Mic 1~2 In@1KHz) | Input Sensitivity/Impedance | 350mV/47KΩ |
S/N | Better than 80dB | |
Frequency Response (±3dB) | 80Hz~16KHz | |
Tone Control (Bass: 100Hz,Treble:10KHz) | ±10dB | |
Tel Audio Input | Input Sensitivity/Impedance | 0.775V/10KΩ |
S/N | Better than 75dB | |
Frequency Response (±3dB) | 50Hz~16KHz | |
EMC Audio Input | Input Sensitivity/Impedance | 0.775V/10KΩ |
S/N | Better than 75dB | |
Frequency Response (±3dB) | 80Hz~16KHz | |
Pre Amp Out(Mic 1~4, Line 1~2, Tel In, Remote In) | 1V/600Ω | |
Remote MIC Sensitivity/Impedance | 775mV/10KΩ | |
THD | Less than 0.1% at 1KHz, 1/3 rated power | |
Power Supply | ~110-230V 50/60Hz & DC 24V | |
Power Consumption | 180W | |
Weight | 6.5Kg | |
Dimensions | 484x310x88 mm | |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
