- Place of Origin:CN;GUA
- Model Number:T-318
- Brand Name:ITC
- Style:Gooseneck Microphone
- Communication:WIRED
- Use:Public Address
- Mic Input Sensitivity:-50dB
- Mic Impedance:600Ω
- S/N Ratio:Better than 65dB
- Frequency Response (±3dB):50Hz~16KHz, -3dB
- THD:Less than 0.1%
- Output:0.775V/600Ω
- Power Supply:DC 24V
- Weight:960g (Without Microphone)
- Dimension:197*115*43.5mm

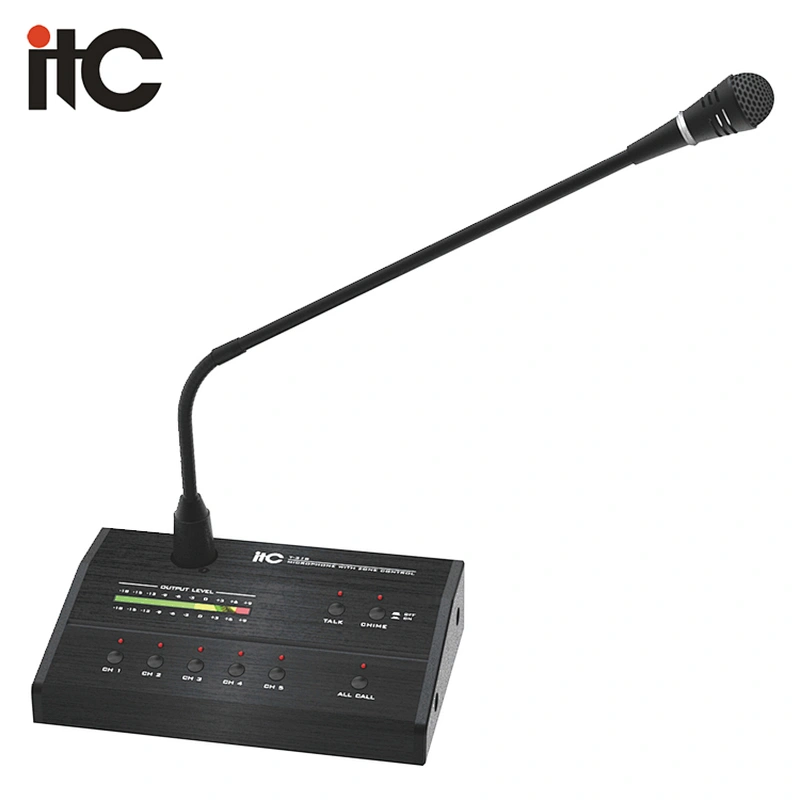

ITC T-318 5 Zone Condenser PA Microphone
ITC T-318 5 Zone Condenser PA Microphone is remote paging console with 5 zone mixer amplifier TI-120S/TI-240S/TI-350S/TI-500S,whose communication distance up to 1kms.
The paging console could be power supplied by the mixer within 50 meters, while extra DC 24V power supply is needed when distance is longer than 50 meters. The paging console provides a direct zone and paging control over the amplifier's output.
* Remote paging console with input priority over Mic1 and siren/chime except for EMC input and TEL input
* Condenser microphone type
* 2/4 tone selectable pre-announcement chime
* Each 5 zone, all zones, talk and chime functional buttons.
* Volume control over chime, Mic and master
* 10 segment LED amplifier output level meters
* DC power socket and DC 24V input
* Extra DC power supply is needed when communication distance is more tha n 5 0 meters
Model | T-318 | |
Mic Input Section (Mic 1~4 In@1KHz) | Input Sensitivity/ Impedance | -50dB/600Ω balanced |
S/N Ratio | Better than 65dB | |
Frequency Response (±3dB) | 50Hz~16KHz, -3dB | |
THD | Less than 0.1% | |
Output | 0.775V/600Ω | |
Power Supply | DC 24V | |
Weight | 960g (Without Microphone) | |
Dimension | 197x115x43.5mm | |
