- Place of Origin:CN;GUA
- Model Number:TI-60/TI-120/TI-240/TI-350/TI-550/TI-650
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:5 (4.1)
- Rate Power:60W/120W/240W/350W/500W/650W
- Output for Speaker:70V, 100V or 4 to 16 ohm
- Sensitivity & Impedance for Output:Mix Out: 1000mV/470 ohm, Unbalanced TRS
- Tone:Bass: ±10dB at 100Hz; Treble: ±10dB at 10KHz
- Frequency Response:50 to 16KHz (+1dB, -3dB)
- S/N Ratio:Mic 1/2/3: 66dB; AUX 1/2: 80dB
- T.H.D.:1KHz: 0.5%, 1/3 Rated Power
- Mute:Mic 1 has highest priority; Adjustment Range: 0 to 30dB
- Crosstalk:≤50dB
- Cooling:The Fan Starts, when Temp≥55-degree

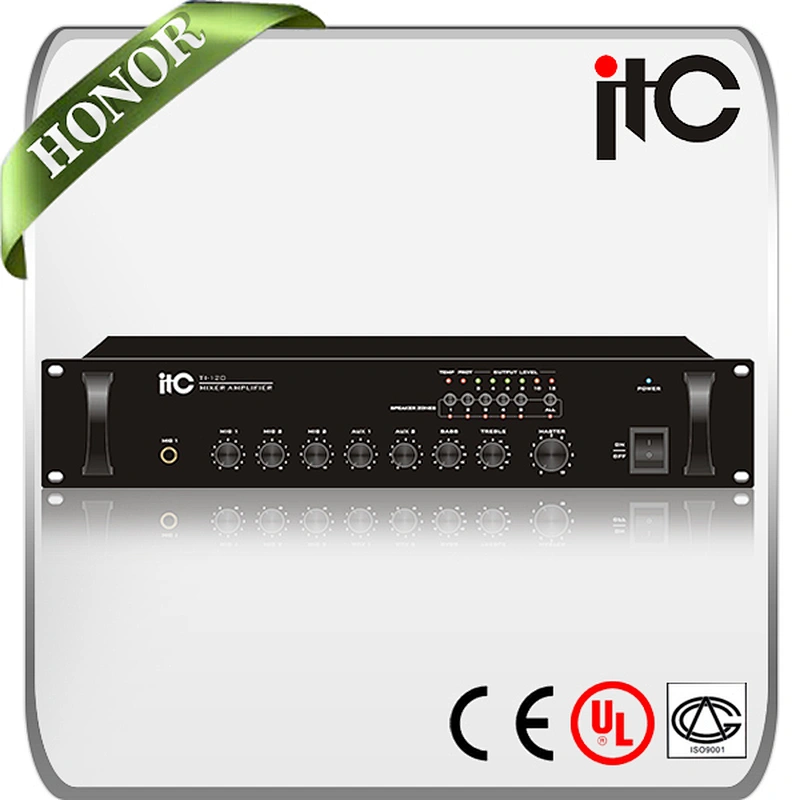

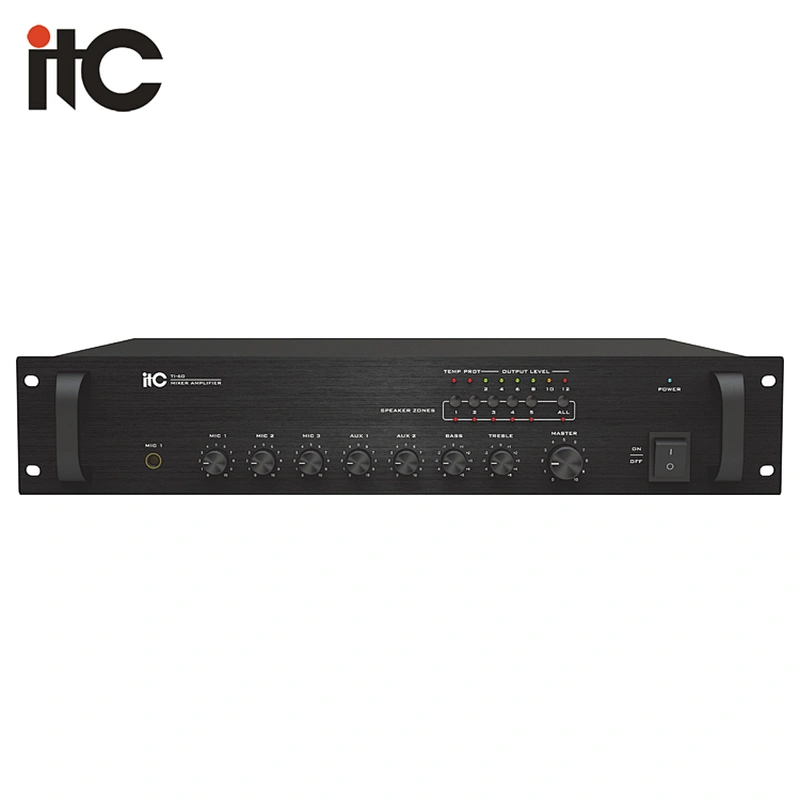

ITC TI-60 Series Cost Effective PA System 5 Zone Mixer Amplifier
1) TI-60/TI-120/TI-240 is in 19” case of 2U and TI-350/TI-550/TI-650 is in 19” case of 3U
2) 3 Mic Input in type of TRS, 2 AUX Input, and 1 EMC Input
3) With function of 3 level priority: Mic 1 has the highest, EMC has the second and others have the third
4) 2 Mic/Line Input and the sensitivity of line input is 775mV
5) Mic Input and AUX Input have individual volume control and the audio output is with total volume control and treble/bass control
6) It’s with 5 partitions’ output and the status of each partition is optional
7) With complete circuit protection for short, over-heat, overload, etc
8) 2 modes of power output: constant voltage output of 70V or 100V and constant impedance output at 4 to 16 ohm
9) For TI-60/TI-120/TI-240/TI-350, power supply at DC 24V is available
Model | TI-60 | TI-120 | TI-240 | TI-350 | TI-550 | TI-650 |
Rate Power | 60W | 120W | 240W | 350W | 500W | 650W |
Output for Speaker | 70V, 100V or 4 to 16 ohm | |||||
Sensitivity & Impedance for Input | Mic 1/2/3: 5mV/600 ohm, Unbalanced TRS | |||||
Line 2/3: 775mV/10Kohm, Unbalanced RCA | ||||||
AUX 1/2: 350mV/10Kohm, Unbalanced RCA | ||||||
EMC: 775mV/10Kohm, Unbalanced DG7.62 | ||||||
Sensitivity & Impedance for Output | Mix Out: 1000mV/470 ohm, Unbalanced TRS | |||||
Electric Potential of Overload | Mic 1/2/3: >12dB, Unbalanced TRS | |||||
Line 2/3: >12dB, Unbalanced RCA | ||||||
AUX 1/2: >20dB, Unbalanced RCA | ||||||
EMC: >12dB, Unbalanced DG7.62 | ||||||
Tone | Bass:±10dB at 100Hz | |||||
Treble:±10dB at 10KHz | ||||||
Frequency Response | 50 to 16KHz (+1dB, -3dB) | |||||
S/N Ratio | Mic 1/2/3: 66dB; AUX 1/2: 80dB | |||||
T.H.D. | 1KHz: 0.5%, 1/3 Rated Power | |||||
Mute | Mic 1 has highest priority; Adjustment Range: 0 to 30dB | |||||
Crosstalk | ≤50dB | |||||
Cooling | The Fan Starts, when Temp≥55-degree | |||||
Circuit Protection | Over-heat, overload & short | |||||
Power Supply | AC 110V/60Hz or AC 230V/50Hz or DC 24V | AC 110V/60Hz or AC 230V/50Hz | ||||
Power Consumption | 100W | 200W | 400W | 500W | 750W | 950W |
Dimension | 484*303*88mm | 484*359*132mm | ||||
Weight | 8.1Kg | 8.6Kg | 11.68Kg | 13.96Kg | 15.72Kg | 17.8Kg |
Material | Aluminum Alloy SPCC Case, Black | |||||
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
