- Place of Origin:CN;GUA
- Model Number:VA-6000RM
- Brand Name:ITC
- Style:Gooseneck Microphone
- Communication:WIRED
- Use:remote paging
- Voltage:24V DC
- Max current:0.1A
- Distortion:<1%
- Frequency:80Hz~16kHz
- Sensitivity:500mV
- Impedance:10 Kohms
- Noise Ratio:>70dB
- SNR:>70dB
- Demension:256 x 52 x 149mm
- Weight:About 1.5kg

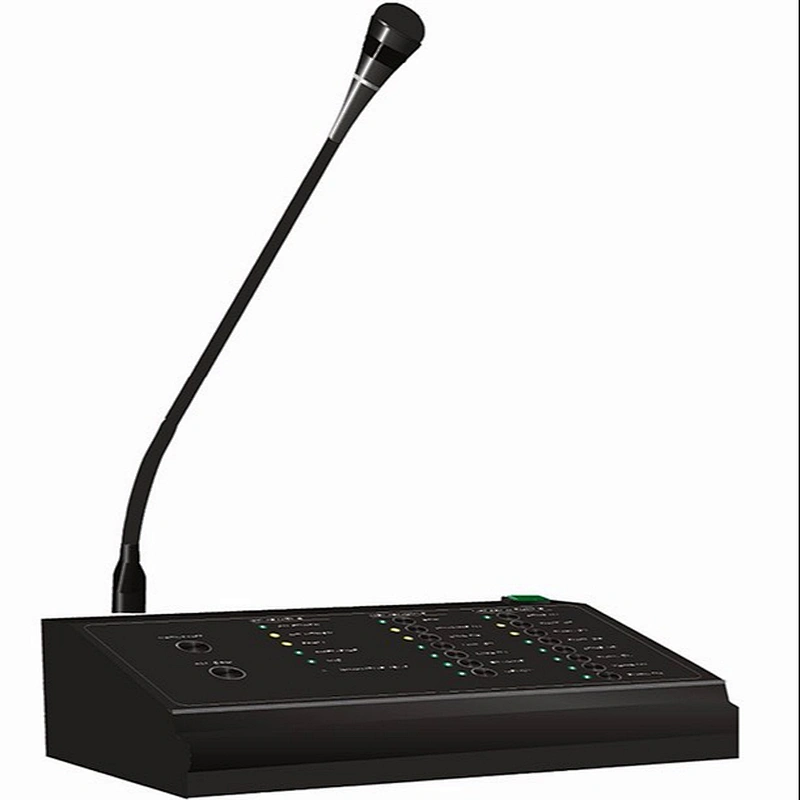

8 Zone Selection Fire Alarm Remote Paging Microphone
Your Preferred Choice for Economical Public Address System
VA-6000RM is used for control the VA-6000 system, which allows users to remote control the
systemand to make zone paging. It supports eight zones/groups selection. It can add zone/group by adding extension unit VA-6000EM, which can support seven extension units to expand to 64
zones.
Features
* One press to select zones, easy to operate.
* Parallel transmission can realize long distance transmission through CAT-5 cable.
* Obvious system fault and module status indicator.
* Supporting zones or groups extension.
* With line audio input and adjustable input volume.
* Paging button mode and PTT mode are available.
* Supporting redundant wiring.
* DC 24V Phantom Power supply.
Basic Functions
* AdjustableMIC output level
* Paging priority can be set through VA-6000ST software.
* Built-in HI-FI monitor speaker, support monitor output.
* Onekey to fast enter into emergency broadcast status.
* With external headset jack, to monitor or record the paging voice.
Specifications
Model | VA-6000RM |
DC Supply | |
Voltage | 24V DC, ±20% |
Max Current | 0.1A (not including extended panel) |
Power Dissipation | 2.4W (not including extended panel) |
Performance Index | |
Balance Ipput | |
Distortion | <1%, 1KHz |
Frequency | 80Hz~16KHz |
Sensitivity | 500mV |
Impedance | 10KΩ |
Noise Ratio | >70dB |
Line Input | |
Distortion | <1% (RMS), 1KHz |
Frequency | 80Hz~16KHz |
Sensitivity | 775mV |
Output Impedance | 10KΩ |
S/N Ratio | >70dB |
Mic | |
Sensitivity | 5mV |
Output Impedance | 600Ω |
Mechanical Index | |
Size ( L x W x D ) | 256 x 52 x 149mm |
Weight | About 1.5Kg |
Installation | Desktop or 19 inch rack |
Color | Balck |
Environmental Requirement | |
Operation Temp | +5℃ ~ +40℃ |
Storage Temp | -20℃ ~ +70℃ |
Relative Temp | <95% no condensation |

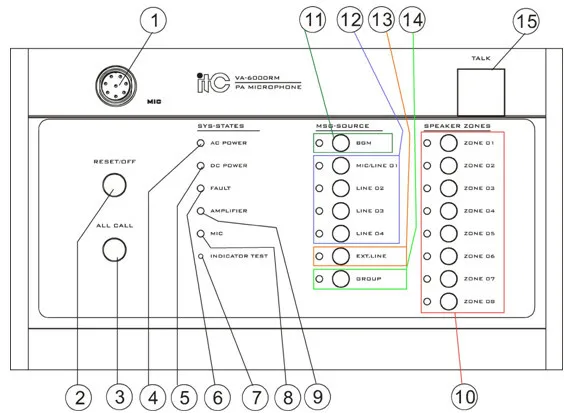

Front Panel
Rear Panel
Systemdiagram
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
