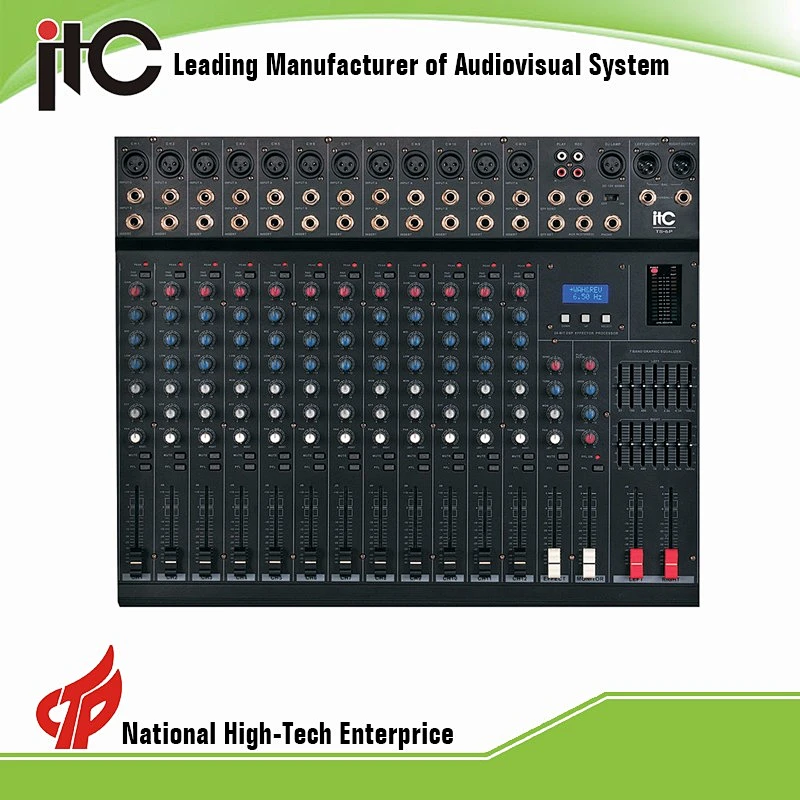

TS-6P Series Good Quality 6 Channel Mixer Audio with Effects

Model NO.: TS-6P/TS-8P/TS-12P/TS-16P
Delivery: FOB
Minimum order quantity: 5 units
Supply Ability: 1000 units / Week
Country of Origin: Guangzhou

Quantity:

Product Description

Place of Origin:CN;GUA
Model Number:TS-6P/TS-8P/TS-12P/TS-16P
Brand Name:ITC
Mono Input Channel:6/8/12/16
Phantom Power for MIC:+48V
Frequency Response:20Hz~20KHz±1dB
Mono MIC to Main Output Max Gain:50dB±3dB
Mono Line to Main Output Max Gain:30dB±3dB
Stereo Line to Main Output Max Gain:N.A.
Overhearing:<-80dB±1.5dB @1kHz
S / NR:78dB @ 0dB
REC Max Unbalance Output:16dB±1.5dB
Phone Output:12dB±1.5dB @ 1KHz 32Ω

Features

TS-6P Series Good Quality 6 Channel Mixer Audio with Effects

*With 2 optional DSP effect modules, one is time adjustable with 21 effect models.

* The other is all parameters adjustable and mixed effect selectable model

* With intelligent display panel and accurate display for various data, convenient operation.
* With 48V phantom power
* SMT
* 3 balanced input, double 7 balanced output.
* 2 main outputs, 1 monitor output and 1 channel for effect sending.
* With LED DJ light.
* With external power adapter, low noise.

Specification

Model	TS-6P	TS-8P	TS-12P	TS-16P
Mono Input Channel	2 channels (selectable. If selected, mono channels will be lessened 4 channels)
Stereo Input Channel	6 channels	8 channels	12 channels	16 channels
Phantom Power for MIC	+48V
Output Channel	2 main output channels; 2 REC output channels; 1 effects output channels; 1 monitor output channel; 1 stereo headphone output channel
Frequency Response	20~20KHz ±1dB
Max Gain of Mono MIC to Main Output	50dB±3dB
Max Gain of Mono Line to Main Output	30dB±3dB
Max Gain of Stereo Line to Main Output	30dB, 3dB(Optional)
Channel Crosstalk	≥80dB @ 1KHz
S/N Ratio (Weighted)	78dB @ 1KHz 0dB
Max Balance Output of Main Output Channel	22dB±1.5dB
Max Unbalance Group Output/Main Output Channel	16dB±1.5dB, without group
REC Max Unbalance Output	16dB±1.5dB
Monitor Max Unbalance Output	16dB±1.5dB
Effects Max Unbalance Output	16dB±1.5dB
Headphone Output	12dB±1.5dB @ 1KHz 32Ω
Gain Difference between Channels	≤2dB
THD	≤0.02% @ 0dB 1KHz
Mono Channel EQ
High Frequency, Intermediate Frequency, Low Frequency	12KHz, 1.8KHz , 80Hz
Center Frequency Deviation and Gain	Frequency deviation <8%, Max gain: ±15dB
Stereo Channel EQ
High Frequency, Intermediate Frequency, Low Frequency	12KHz, 1.8KHz, 80Hz
Center Frequency Deviation and Gain	Frequency deviation <8%, Max gain: ±15dB
7 GEQ of Main Output
Center Frequency	63Hz,160Hz,400Hz,1KHz,2.5KHz,6.3KHz,16KHz
Frequency Deviation and Gain	±12dB inaccuracy 2dB, Frequency deviation ≤8%
Effectors	21 kinds of DSP effects: HALL, ROOM, PLATE, AMBIENT, GATED, REVERS, VOICE, DEL&REV, ECHO 40, ECHO 50, DELAY, CHORUS, CHO&DEL, CHO&REV, FLANGER, FLA&DEL, FLA&REV, TREMOLO, TRE&REV, WAH WAH, WAH&REV
Clipping Indicator Light	Indicator 3dB earlier than clipping level
12 Levels Indicator Light of Main Outputs	+9dB, +6dB, +3dB, 0dB, -2dB, -4dB, -6dB, -9dB, -12dB, -16dB, -18dB, -21dB
Power Supply & Power Consumption	~220-240V 50/60Hz, <70W
Output Power of Amplifier
Dimension of External Power Supply	129 x 90 x 77mm
Dimension(WxDxH)	327.5 x 389.7 x 80.3mm	387.5 x 389.7 x 80.3mm	507.5 x 389.7 x 80.3mm	627.5 x 389.7 x 80.3mm
Net Weight	5Kg	6Kg	7.3Kg	8.8Kg
Shipping Dimension(WxDxH)	495 x 485 x 180mm/0.0432m3	555 x 485 x 180mm/0.0485m3	660 x 485 x 180mm/0.0576m3	785 x 485 x 180mm/0.0685m3
Gross Weight	10.1Kg	10.8Kg	11.7Kg	13.7Kg
