- Place of Origin:CN;GUA
- Model Number:TS-16P-4/TS-24P-4/TS-32P-4
- Brand Name:ITC
- Mono Input:8/16/24
- Stereo Input:4 Group
- Secondary Mono Input:8/16/24
- Phantom Power:+48V
- Max. Gain of Mic:56dB ±2dB
- Max. Gain of Mono Line:36dB ±2dB
- Max. Gain of Stereo Sound:26dB ±2dB
- Crosstalk:≥90dB @ 1KHz
- S/N Ratio:83dB @ 1KHz 0dB
- Frequency Response:20 --- 20KHz ±0.5dB

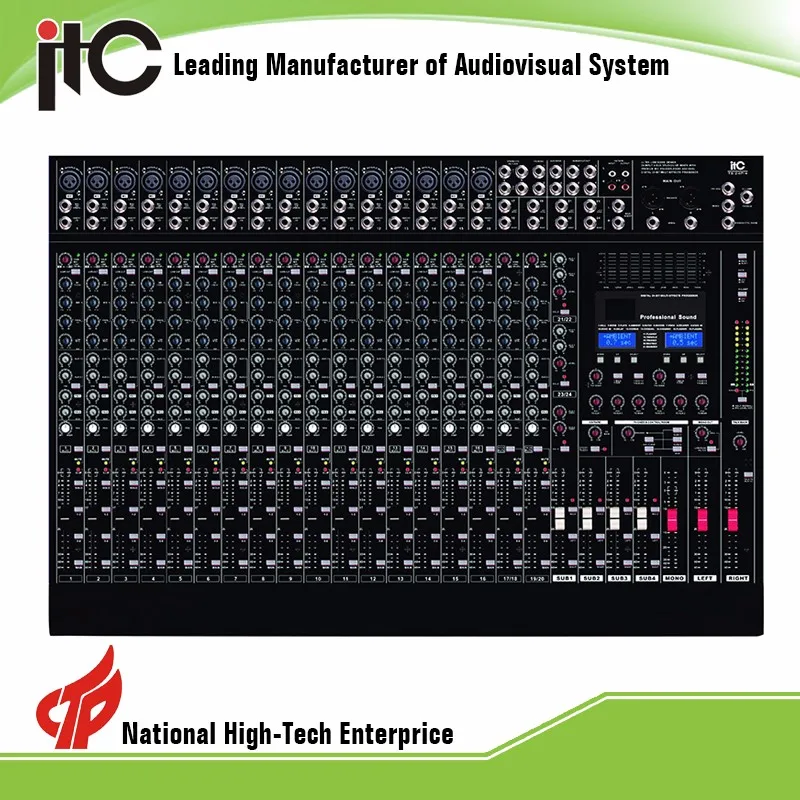

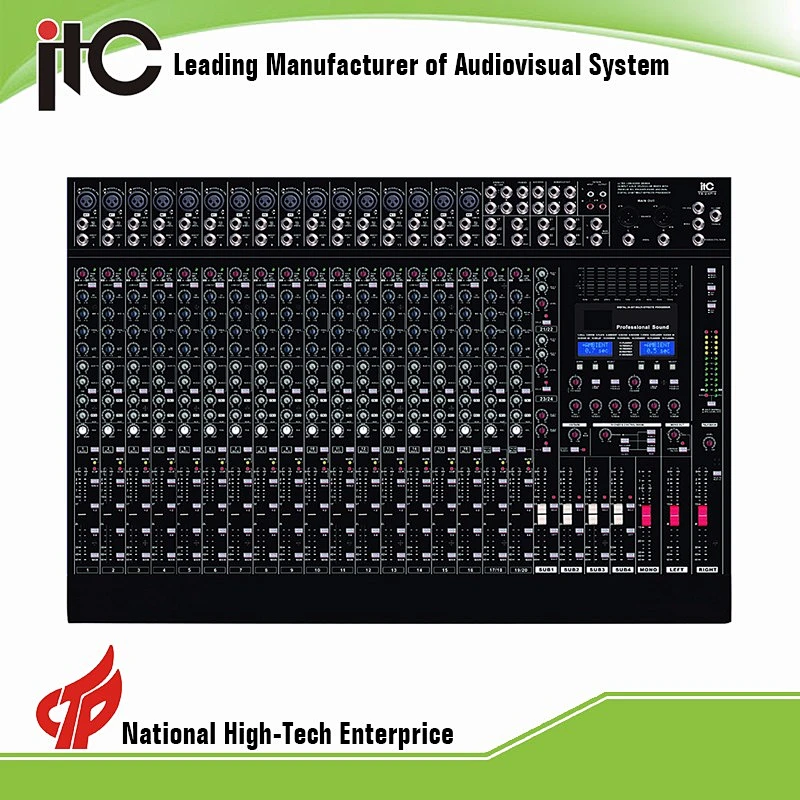

Upscale 21 Kinds Effect Professional Power Mini Digital DSP Audio Mixer
Model | TS-16P-4 | TS-24P-4 | TS-32P-4 |
Mono Input Channel | 8 channels | 16 channels | 24 channels |
Stereo Input Channels | 4group (8 mono channel) | 4group (8 mono channel) | 4group (8 mono channel) |
Mono Insertion Channel | 8 channels | 16 channels | 24 channels |
Single Channel Power | +48V | ||
Output Channel | 3 main output, 4 group busses output, 2 Aux output, 2 CD/TAPE output, 2 effect output, 1 stereo headphone output | ||
Frequency Response | 20~20KHz ±0.5dB | ||
Frequency | 12KHz, 110~8KHz , 80Hz | ||
Frequency Offset and Gain Frequency | Frequency offset less than 8%, max gain is ±15dB | ||
High Frequency& Low Frequency | 20KHz, 3KHz , 500Hz, 20Hz | ||
Power Supply and Consumption | ~220V-240V 50/60Hz,<100W | ||
External Power Supply Dimension | 212mm x 143mm x 77mm | ||
Product Dimension (W x D x H) | 525 x 512 x 65mm | 757 x 512 x 65mm | 989 x 512 x 65mm |
Net Weight | 8.5Kg | 11.8Kg | 17Kg |
Shipping Dimension (W x D x H) | 674 x 591 x 227mm/0.0904m3 | 906 x 591 x 227mm/0.1215m3 | 1138 x 591 x 227mm/0.1486m3 |
Gross Weight | 15Kg | 19Kg | 19Kg |
* SMT technology circuit design, powerful and full features, nice sound, clear treble and shock bass.
* 8 (TS-16P-4) or 16 (TS-24P-4) or 24 (TS-32P-4) microphone and line inputs with effect returns.
* 8 stereo inputs; 4 stereo external effect signal inputs.
* Independent 4 group busses outputs, 2 aux outputs, 2 effect outputs.

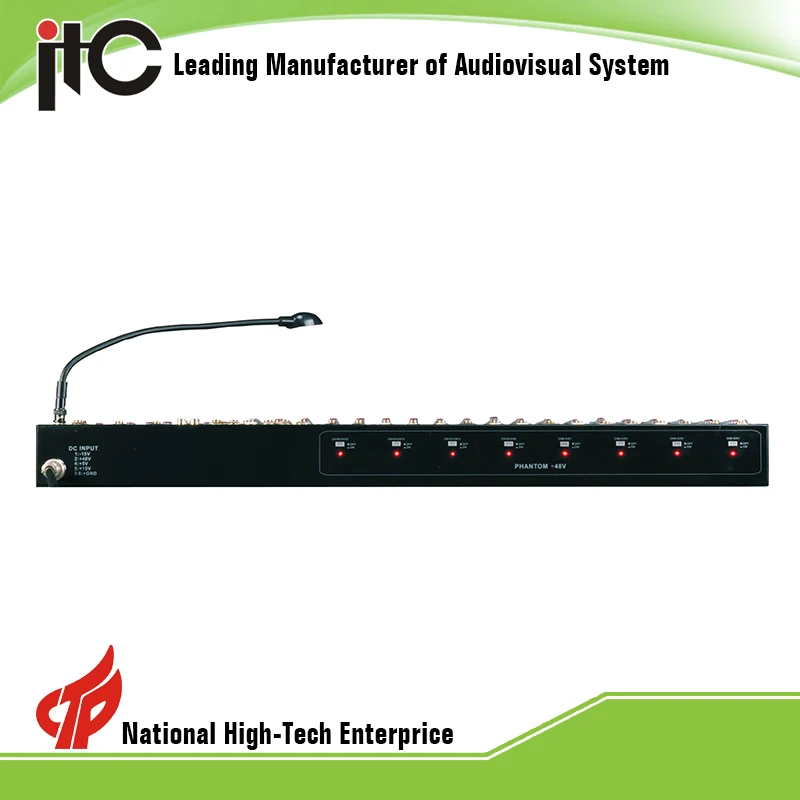

* Microphone input interface with 48V phantom power supply, power can be offered to phantom microphone directly.

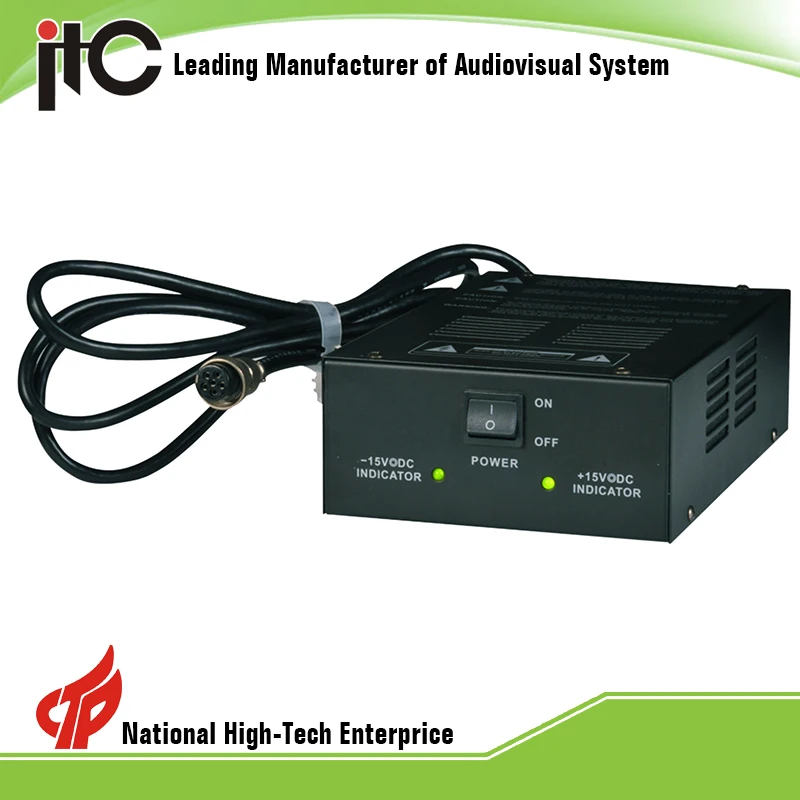

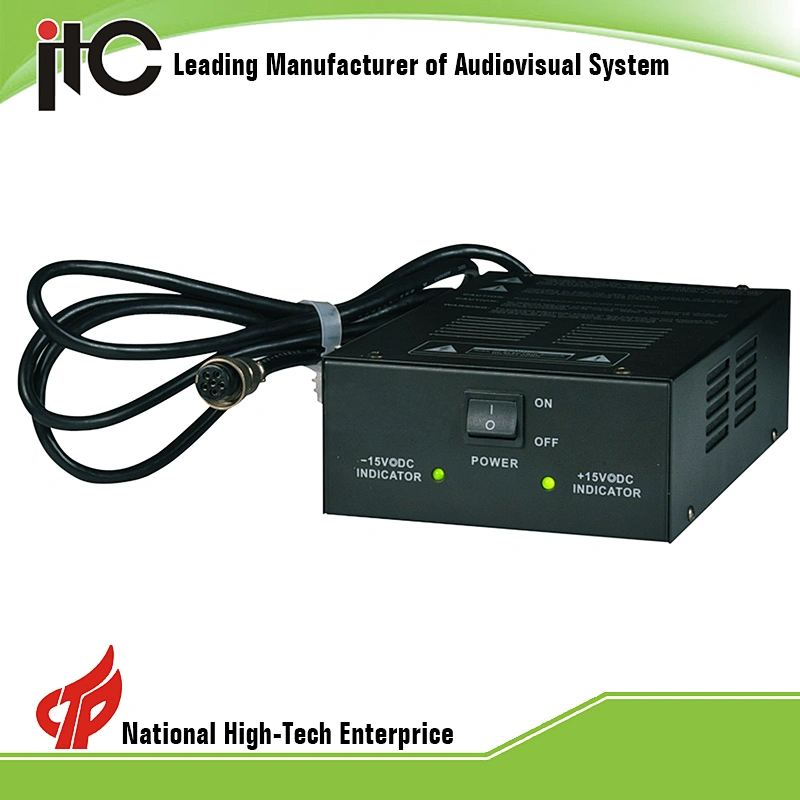

* External power adapter with low noise design.
* With LED DJ light.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop
solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, Led video wall and Lighting system , etc.
What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic
Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
