- Place of Origin:CN;GUA
- Model Number:TS-12P-2/TS-16P-2
- Brand Name:ITC
- Mono Input (Mic or Line Input):4 or 8
- Stereo Input (Line Input):4 Group or 8 Channel Mono
- Phantom Power for Mono Mic Interface:+30V
- Frequency Response:20 to 20KHz ±0.5dB
- Crosstalk:1KHz 71dB/20KHz 60dB
- SNR:79dB @1KHz
- Headset Output:8.2dB @1KHz 32ohm
- Gain Difference Between Channels:<3dB
- Distortion:<0.02% @ 0dB 1KHz
- Frequency Point of HF, MF & LF:12KHz, 2.8KHz, 80Hz

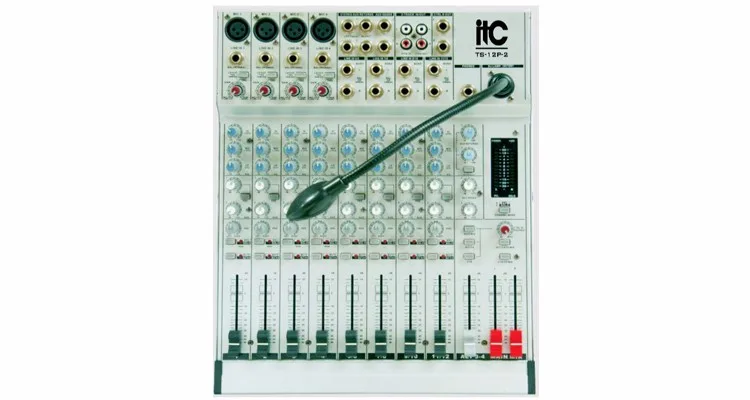

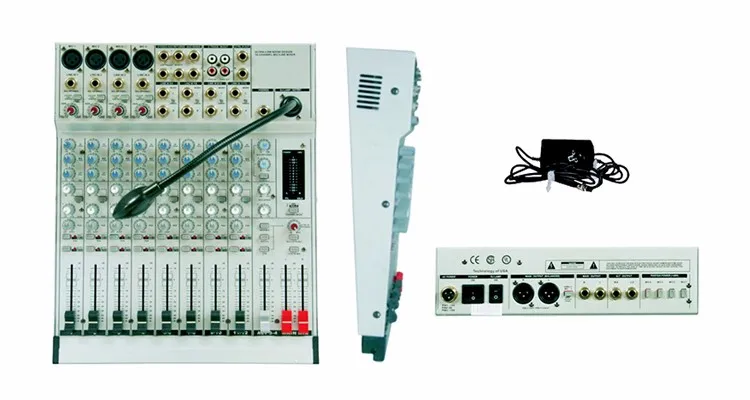

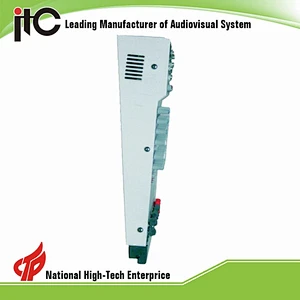

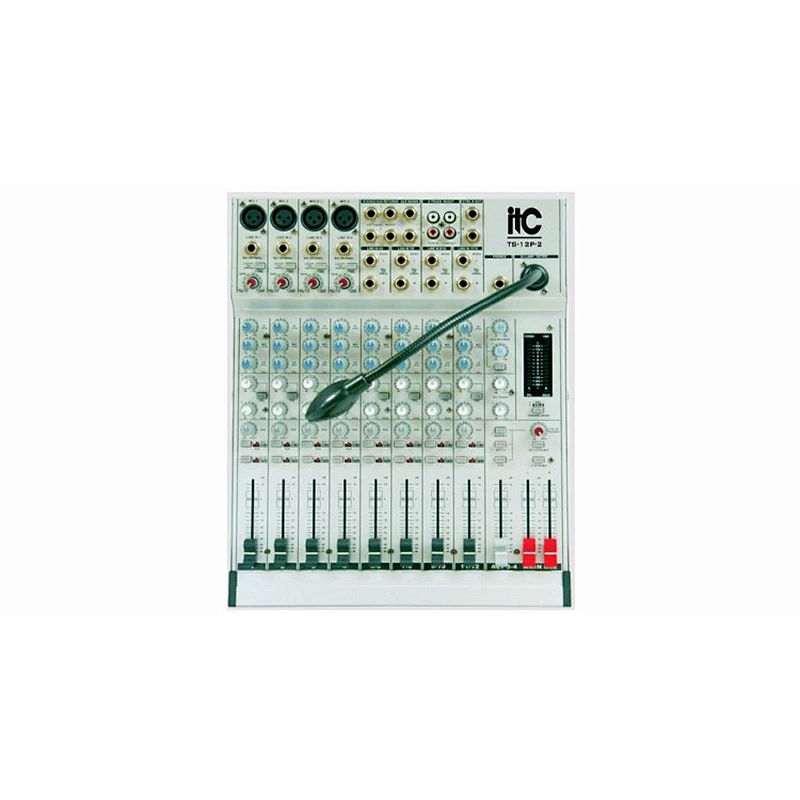

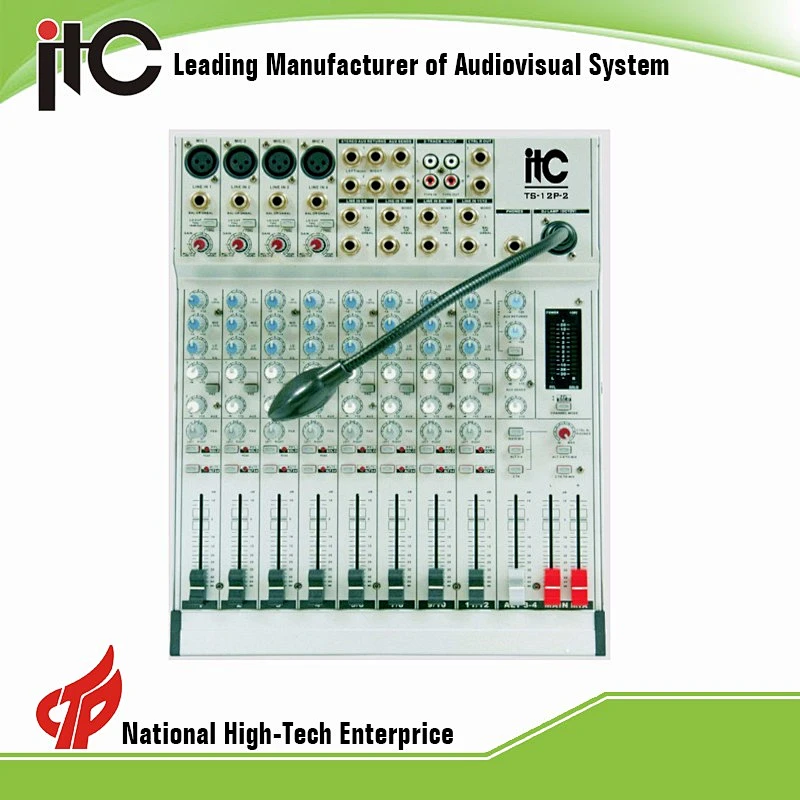

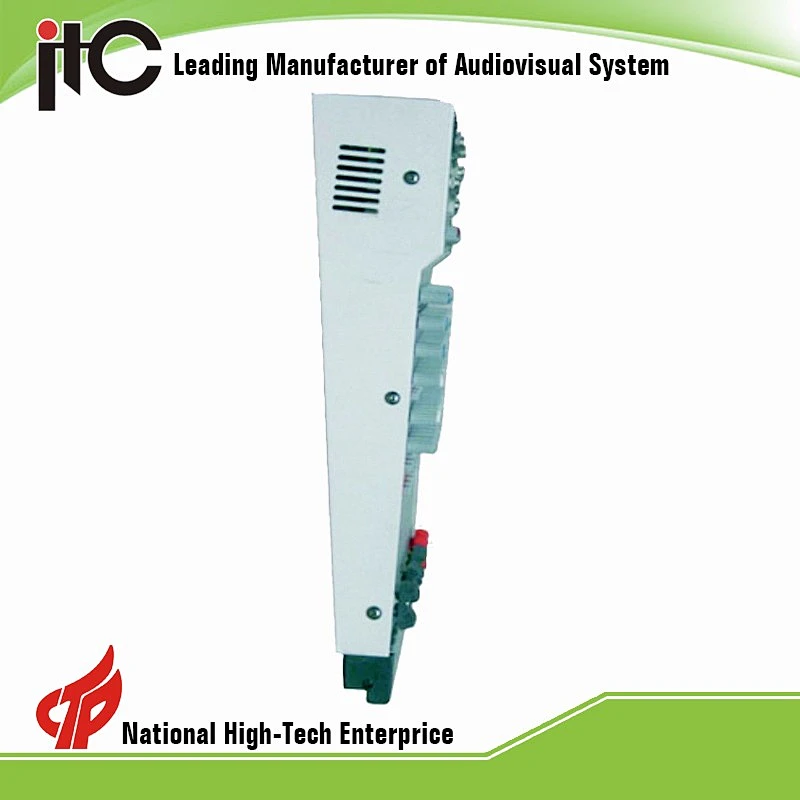

ITC 12/16 Channel professional mixing console,pro mixing console
- Install standard 19"cabinet.
- Whole block double circuit, no connecting fault.
- SMT, more reliable.
- 4 or 8 mono inout.
- 4 stereo input, 4 foldback input.
- Left and right main output, Two-bus output.
- 2 aux sending, one is after the push bar.
- Monitor function, for all input and ouput.
- Independent switch for each +48 phantom power.
- LED DJ Light.
Model | TS-12P-2 | TS-16P-2 |
Mono Input Channel (Mic or Line) | 4 channels | 8 channels |
Stereo Input Channels (Line) | 4 pairs (8 mono channels) | |
Phantom Power | 30V | |

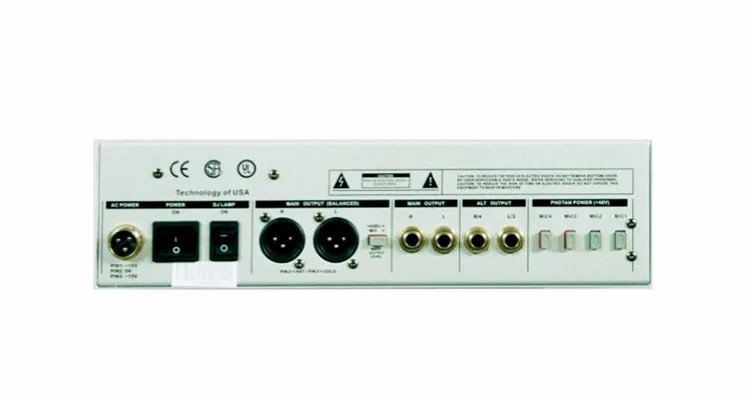

Output | Two unbalanced and two balanced master outputs, one stereo 3.5mm earphone output, two mono 3.5mm earphone outputs, two Aux outputs, two ALT outputs and two Track outputs. | |
Frequency Response | 20Hz-20 KHz, ±0.5dB | |
Max Mic Gain at Mono Mode | 37.4 dB to 55.4dB, ±3dB | |
Max Line Gain at Mono Mode | 36.8 dB to 47.4dB, ±3dB | |
Max Line Gain at Stereo Mode | 10dB, ±3dB | |
Crosstalk | 71dB at 1k Hz and 60dB at 20k Hz | |
S/N Ratio | 79dB at 1k Hz | |
Balanced Master Output | 25.6dB, ±1.5dB | |
Unbalanced Master & ALT Output | 19.6dB, ±1.5dB | |
Unbalanced Aux Output | 19.2dB, ±1.5dB | |
Bass/Mid/Treble Frequency Point | 65 Hz, 2.8k Hz & 14k Hz | |
Frequency Deviation & Gain | <8%, ±15dB | |
Output Level Meter | +20dB, +10dB, +7dB, +4dB, +2dB, 0dB, -2dB, -4dB, -7dB, -10dB, -20dB & -30dB | |
Power Supply | AC 120V or 220V; 50-60Hz | |

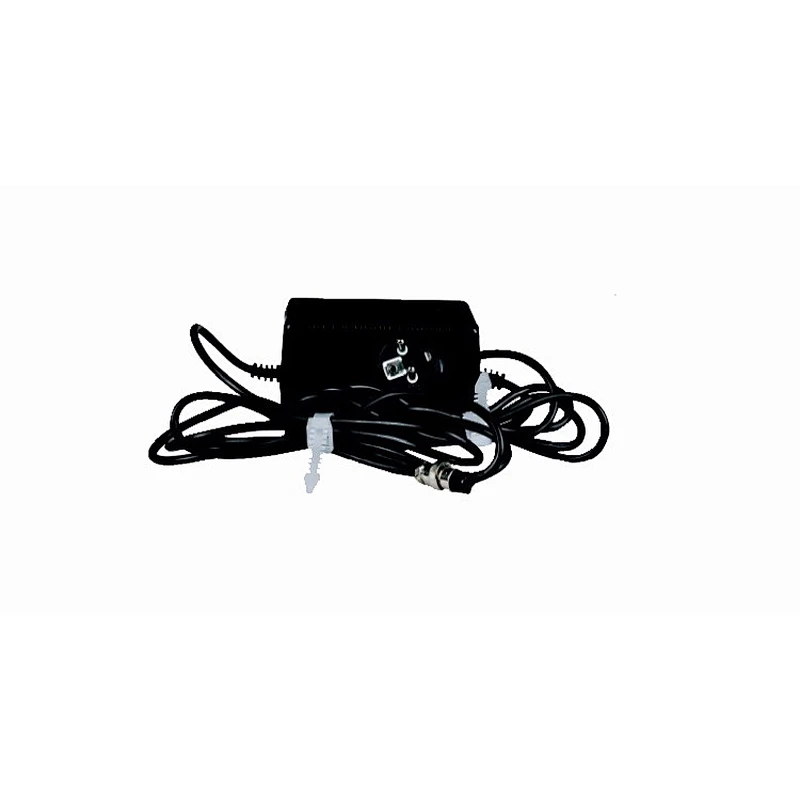

The Dimension of External Power Supply | 129x90x77mm | |
Product Dimension(WxDxH) | 285x392x80mm | 395x392x80mm |
Net Weight | 4.05kg | 5.3kg |
Shipping Dimension(WxDxH) | 450x446x168mm | 546x446x168mm |
Gross Weight | 8.8kg | 9.9kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
