- Product Name:digital mixing console
- Power Supply:External 18AC (AC 230-240V 50/60Hz) power adapter
- Frequency Response:20Hz to 50KHz (0,-1dB); 20Hz to 130KHz (0,-3dB)
- Microphone input:4 channels (4 XLR)
- Line input:4-channel single plug mono/stereo automatic switching hybrid interface
- Stereo input:4 sets (8 channels mono)
- THD:<0.003% (A-weighted)
- Microphone balanced input noise:-119dB(A-weighted)
- Maximum output level:+20dBu
- MIC input high-pass filtering:75Hz, 18dB/oct
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:TS-12PFX
- Power:18W
- Frequency Range (Hz):20Hz to 50KHz (0,-1dB); 20Hz to 130KHz (0,-3dB)
- 车身尺寸:271*259*54.3mm

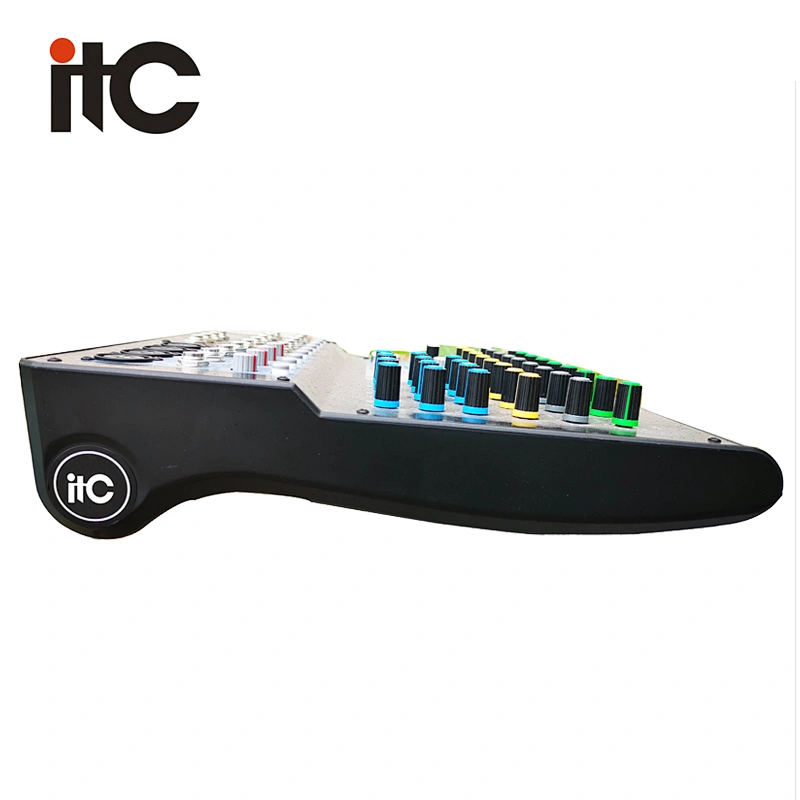

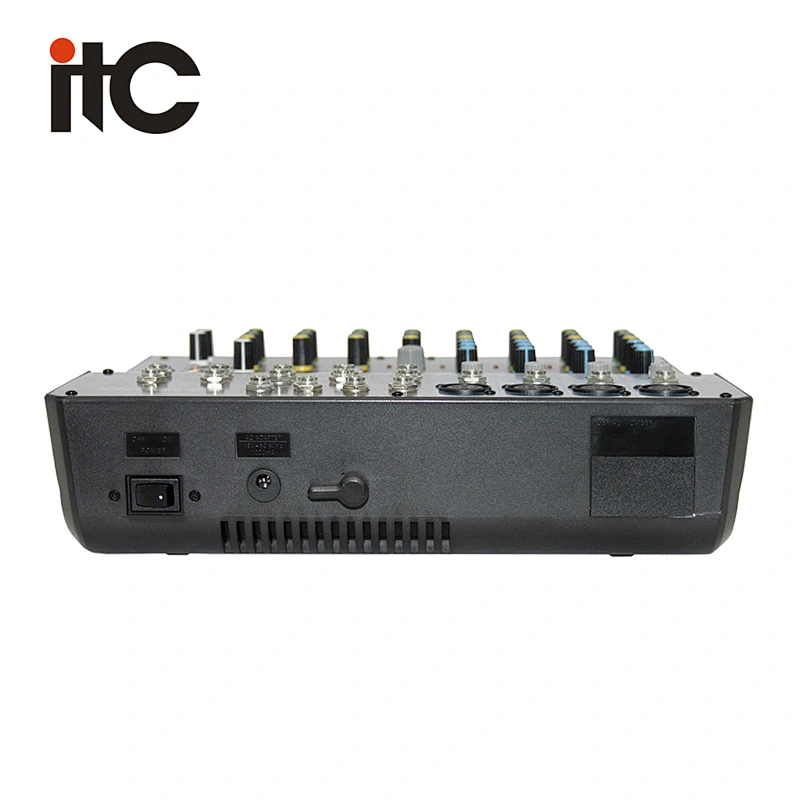

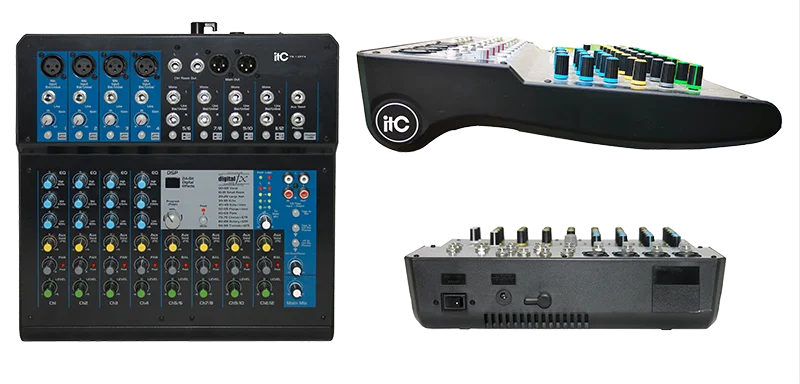

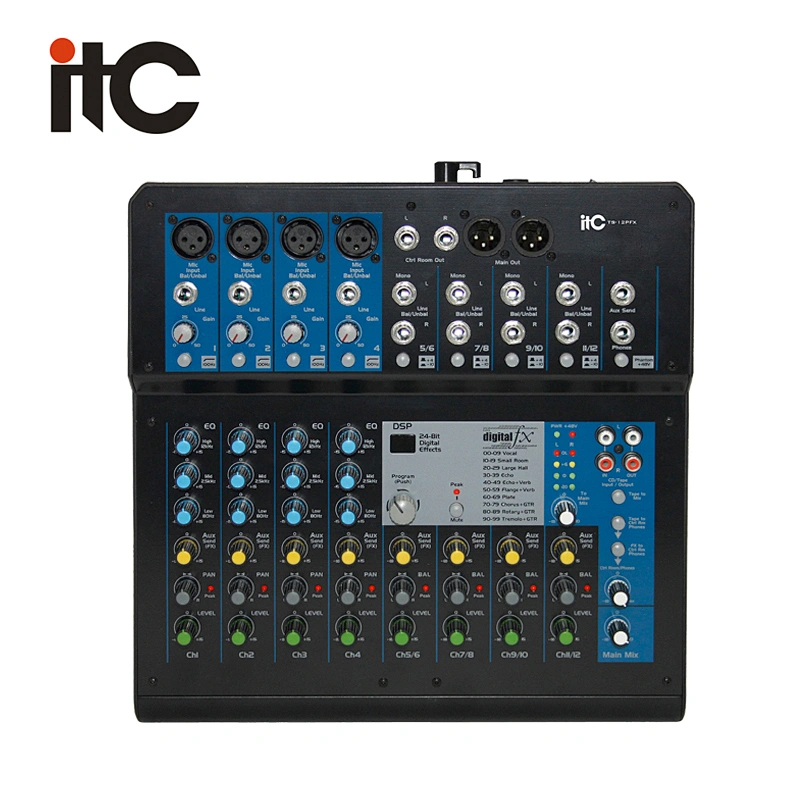

ITC High End Professional DJ 12 channel digital mixing console audio mixer amplifier
*Professional compact mixer with ultra-lownoisediscrete microphone pre amplifier and+48Vphantompower,powerful, full-featured andmellifluousaudioquality
*Provide4channelsofMicinputinterfacecompatiblewith4lineinputinterfaces,microphoneinputinterfacewith48Vphantompower.
*Provide4setsofstereo linear input, which canbeconnectedtostereoequipment.
*Eachchannelofthemonoinputchannelhasa3-bandEQwithapeakLEDindicator.
*Provide1setofstereomainoutput,1setofauxiliaryoutput,onesetofstereomonitoroutput,1channelheadphonemonitoroutput,1setofCD/Tapeoutput.
*Built-in24-bitDSPeffects,providing100preseteffects
Model | TS-12PFX |
Microphone input | 4 channels (4XLR) |
Line input | 4-channel single plug mono/stereo automatic switching hybridinterface |
Stereo input | 4 sets (8 channelsmono) |
CD/Tape input | 1-channel CD/TAPE RCA stereo inputinterface |
Output channel | 1 stereo main output, 1 auxiliary output, 1 stereo monitor output, 1 earphone monitor output, 1CD/Tapeoutput |
Effect | Effects: 24-bit DSP effects (including vocals, small houses, halls, echoes, echoes + reverbs, plates, vocals, chorus GTR, rotating GTR, vibrato GTR type), 100 preseteffects |
Phantom power | +48V withswitch |
Frequency response | 20Hz to 50KHz (0,-1dB); 20Hz to 130KHz(0,-3dB) |
THD | <0.003%(A-weighted) |
Microphone balanced input noise | -119dB(A-weighted) |
Common mode rejection ratio | 60dB |
Single channel input gain | MIC: 0 to 48dB, LINE: -33 to +15dB |
Stereo channel input gain | LINE: -8 to+6dB |
Main mix crosstalk | -87dBu(A-weighted) |
Channel crosstalk | -85dBu(A-weighted) |
Maximum output level | +20dBu |
MIC input high-pass filtering | 75Hz,18dB/oct |
Single channel equalization | High frequency: ±15dB @12KHz; medium frequency: ±12dB @2.5KHz; lowfrequency:±15dB @80Hz |
Power supply | External 18AC (AC 230-240V 50/60Hz) poweradapter |
Power consumption | ≤18W |
Dimension (L × W ×H) | 271×259×54.3mm |
Weight | 1.9Kg |
ITC products are complied with worldwide certificates:CCC,ISO9001,CE & RoHS.Parts of our product are complied with certificates:CB,SASO,ETL,UL,FCC,EN54-24.Parts of loudspeakers are certificated by waterproof,dustproof,fire-proof & explosion-proof.
