- Place of Origin:CN;GUA
- Model Number:TS-12P-2S/TS-16P-2S/TS-24P-2S
- Brand Name:ITC
- Mono Input (Mic or Line Input):8/12/20
- Stereo Input (Line Input):2 Group or 4 Channel Mono
- Phantom Power for Mono Mic Interface:+48V
- Frequency Response:20 to 20KHz ±0.5dB
- Crosstalk:-72dB/20KHz
- SNR:>90dB @1KHz 0dB
- Gain Difference Between Channels:<2dB
- Distortion:<0.002% @ 0dB 1KHz
- Frequency Point of HF, MF & LF:12KHz, 200Hz-8KHz, 80Hz

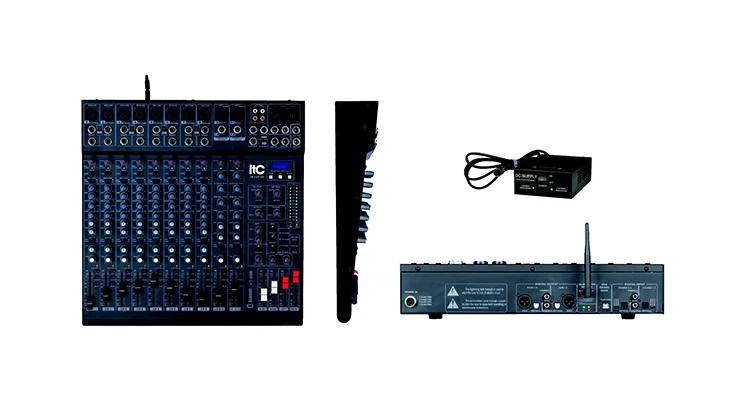

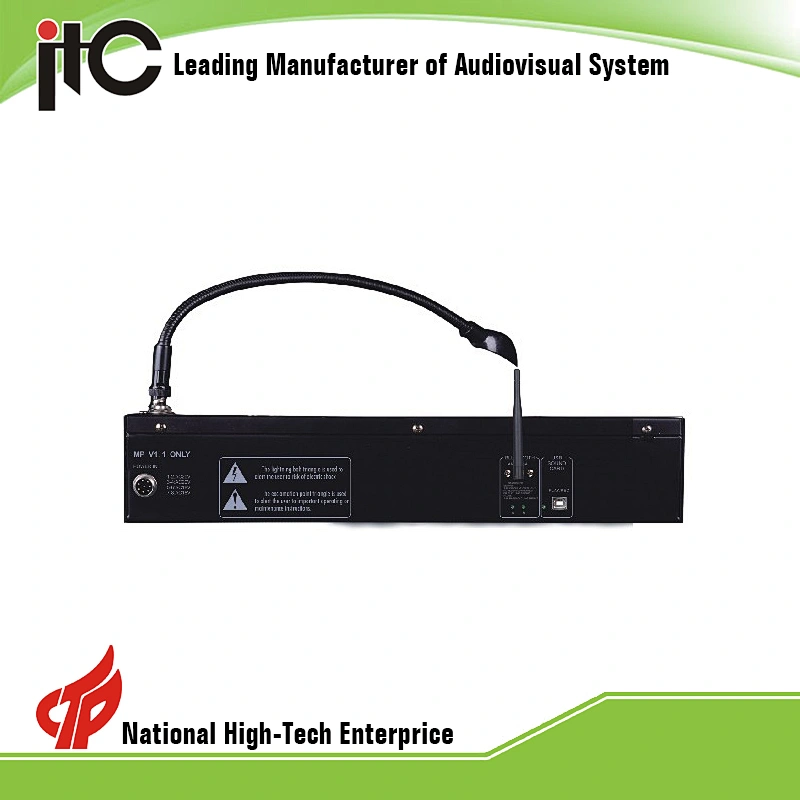

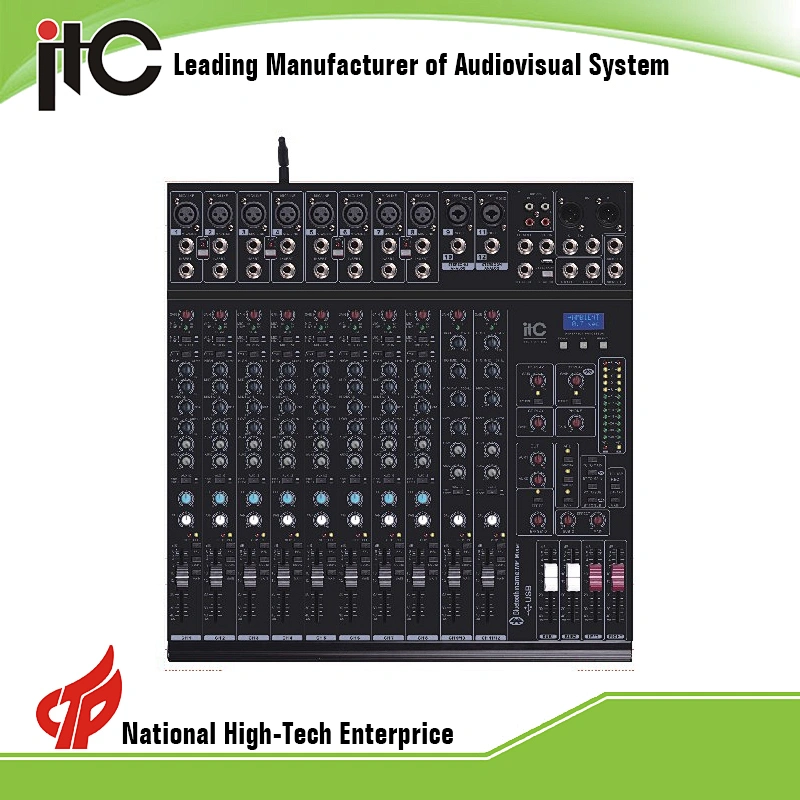

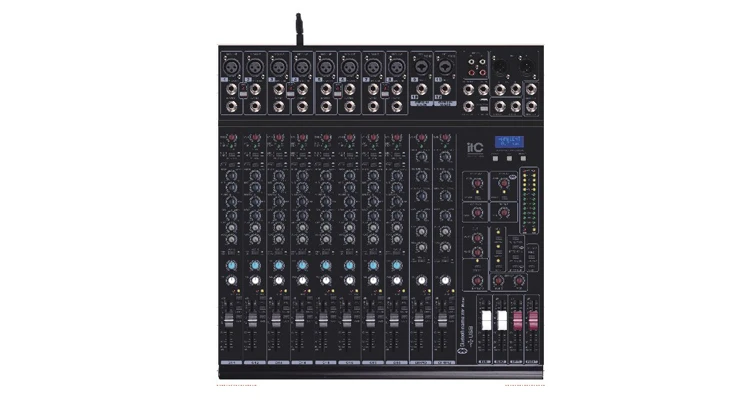

TS-12P-2S Digital Output 2 Groups USB Record Professional DJ Mixer
* Surface Mount Technology ( SMT ) process design, with high reliability.
* Provide 8 or 12 or 20 microphones and line inputs with returning effect.
* Built in 21 kinds DSP effects.

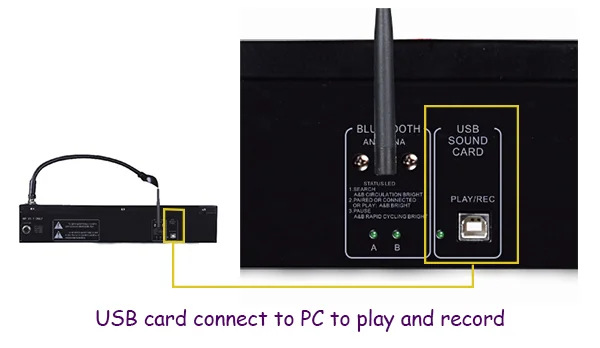

*USB card connect to PC to play and record.
* Built in Bluetooth module can play digital audio from Bluetooth device.
Model | TS-12P-2S | TS-16P-2S | TS-24P-2S | ||
Mono Input Channel | 8 channels | 12 channels | 20channels | ||
Stereo Input Channels (Line) | 4 groups (4 channels mono) | ||||
Mono Input | 8 channels | 12 channels | 20channels | ||
Single channel microphone interface phantom power | +48V | ||||
Output Channel | A group stereo main output, two group output, two aux output, one stereo monitor output, one group CD / TAPE output, USB | ||||
Sound card output, Bluetooth output | |||||
Frequency Response | 20Hz~20KHz ±0.5dB | ||||
Max Mic Gain at Mono Mode | 60dB±2dB | ||||
Max Line Gain at Mono Mode | 45dB±2dB | ||||
Max Line Gain at Stereo Mode | 15dB±1dB | ||||
Crosstalk | -72dB @ 20KHz | ||||
Left/Right channel crosstalk | -66dB@ 20KHz | ||||
S/N | ≥90dB @ 1KHz 0dB | ||||
Balanced Master Output | 24dB±1.5dB | ||||
Unbalanced Master & Group Output | 18dB±1.5dB | ||||
Max Unbalanced AUX Output | 18dB±1.5dB | ||||
Max Unbalanced CD/TAPE Output | 18dB±1.5dB | ||||
Unbalanced Effect Output | 18dB±1.5dB | ||||
headset Output | 12dB/0.25W@32Ω 18dB@10KΩ 20Hz~20KHz | ||||
Gain Difference between channels | ≤2dB | ||||
THD | ≤0.002% @ 0dB 1KHz | ||||
Mono Channel Balance | |||||
Treble/Mid/Bass Frequency Point | 14KHz, 200Hz~8KHz, 80Hz | ||||
Frequency Deviation & Gain | Deviation is less than 8%, the biggest gain is ±15dB | ||||
Stereo Channel Balance | |||||
Treble/Mid/Bass Frequency Point | 20KHz, 3KHz , 500Hz, 20Hz | ||||
Frequency Deviation & Gain | Deviation is less than 8%, the biggest gain is ±15dB | ||||
Main Output 9-band graphic equalizer | |||||
Center frequency | no | ||||
Frequency Deviation & Gain | no | ||||
Effector | 21 kinds of DSP effect:HALL, ROOM, PLATE, AMBIENT, GATED, REVERS, VOICE, DEL&REV, ECHO 40, ECHO 50, DELAY, CHORUS, | ||||
CHO&DEL, CHO&REV, FLANGER, FLA&DEL, FLA&REV, TREMOLO, TRE&REV, WAH WAH, WAH&REV | |||||
Channel clipping indicator | 3dB advance | ||||
Group and master output level 1&2 indicator | +6dB,+3dB,0dB,-3dB,-6B,-9dB,-12dB,-15dB,-18dB,-24dB,-30dB,-36dB | ||||
Power supply and Consumption | 110V~220V~/50Hz/60Hz, ≤60W | ||||
Amplifier Power | no | ||||
External power supply Dimensions | 85mm x 60mm x 120mm | ||||
Dimensions((L x M x H)) | 416 x 419 x 80mm | 536 x 419 x 80mm | 776 x 419 x 80mm | ||
Net Weight | 7Kg | 9Kg | 12Kg | ||
Packing Dimensions((L x M x H)) | 566 x 489 x 240mm | 686 x 489 x 240mm | 926 x 489 x 240mm | ||
GW | 7.5Kg | 9.5Kg | 12.5Kg | ||
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
