- Place of Origin:CN;GUA
- Model Number:VA-6000 Series
- Brand Name:ITC
- Power Supply:DC 24V
- Maximum Current:0.1 A
- Power Comsumption:2.4W
- THD:<1%
- Frequency:80Hz~16kHz
- Sensitivity:350mV
- Impedance:10k ohms
- S/N:>70dB
- Operation Temperature:+5°C ~ +40°C
- Storage Temperature:-20°C ~ +70°C

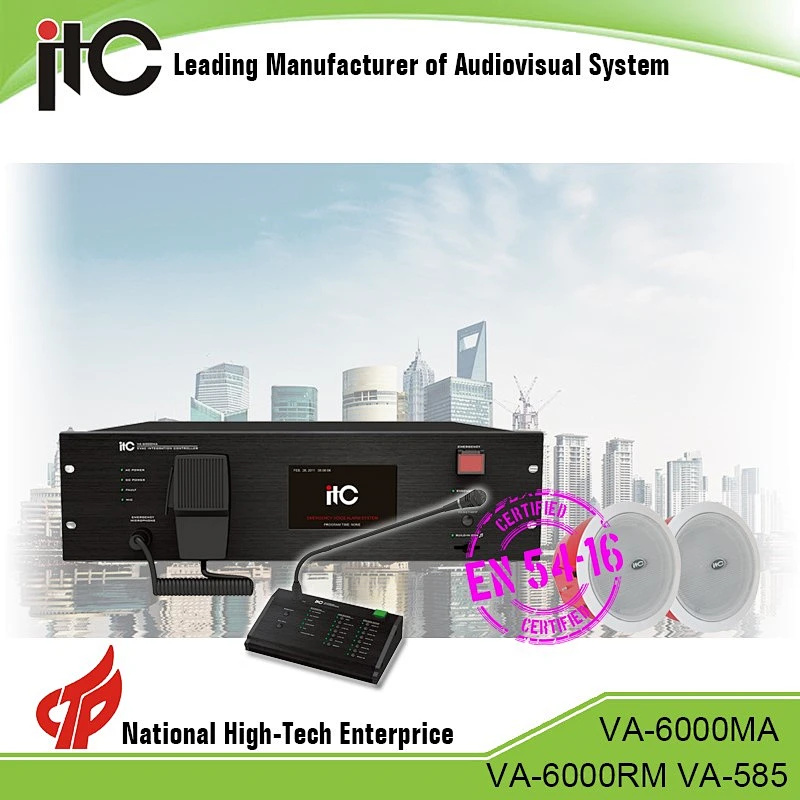

8 Zone EVAC Expandable Emergency Fire Alarm Voice Evacuation System
Features
1)Integration of Fire Alarm Broadcast and Public Address System
The whole system provides function of scheduled program broadcast, evacuation message broadcast, programmable business message broadcast, scheduled background music broadcast and so on.
2) Latest Tech. & Reliable Design
To Adopt ASD system to diagnosis fault automatically; To adopt SIM speaker line auto detection; To adopt DLB automatic redundancy technology.
3)Based on Both LAN & WAN
Users only need to use CAT 5 cable to build up the whole system.
4)To Adopt CAN BUS
CAN BUS linkage port is distributed in the host, amp changeover, zoning amplifier and the linkage port is up to 592 so that it’s easy to work with third-party system and to be installed.
5)Real Time Monitor of Operating and the storage event log ≤2000
6)With User-friendly Interface in Touch Screen
Users control the whole system via the touch screen. When the emergency happens, users only need to press 1 button to do paging which ensure fast response speed.
7) Flexible Partition Collocation
The controller could output 255 channel matrix-style audio signal which could build up system including 56 power partition and 255 signal partition. It’s satisfied solution for small to large projects.
8)Digital Amplifier to Ensure Hi-fi Sound Quality
Systemdiagram

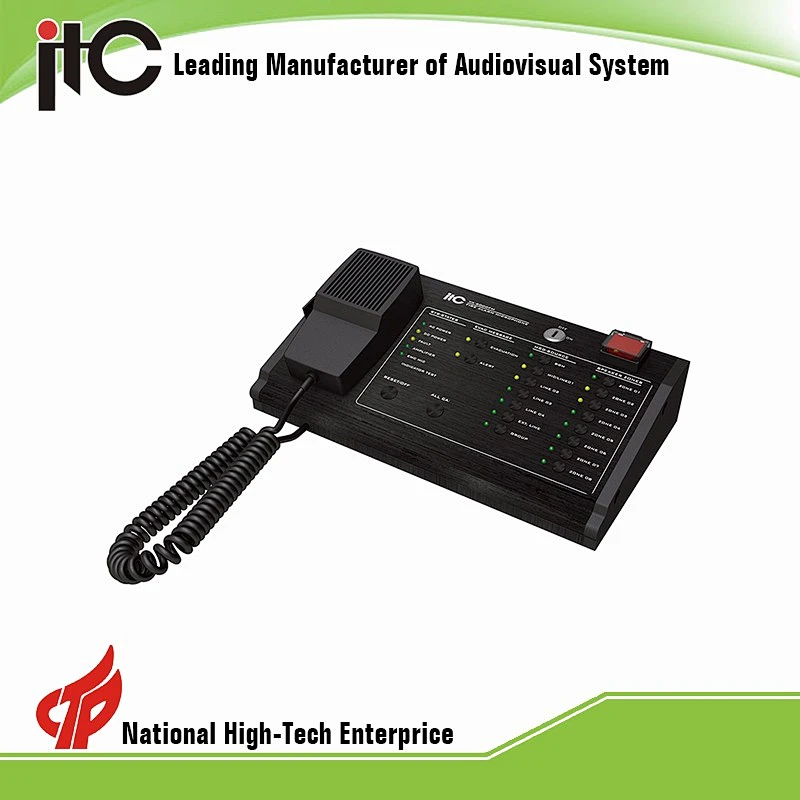

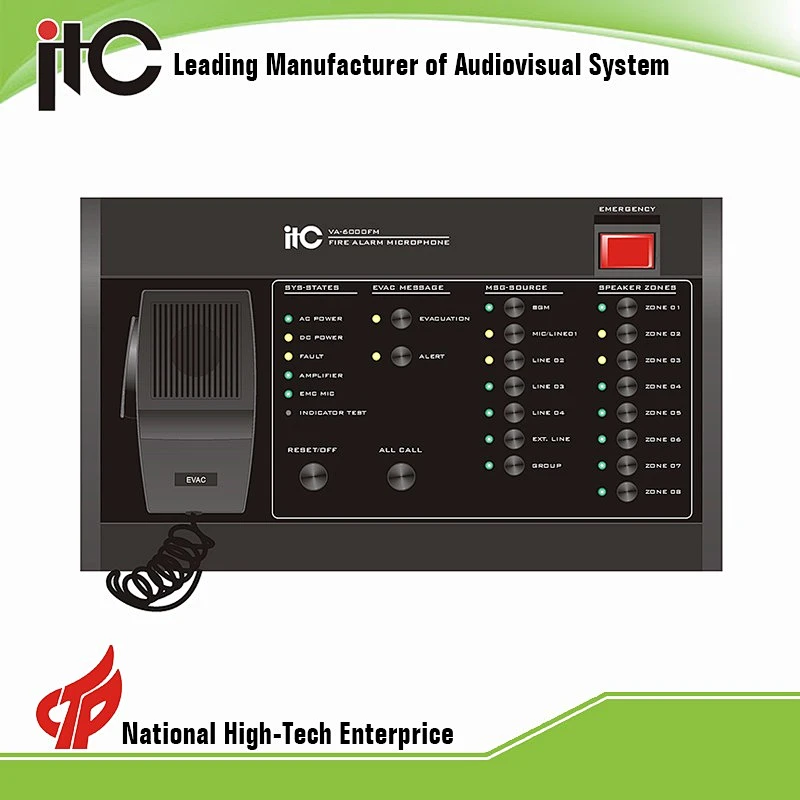

VA-6000FM could control emergency voice alarm system remotely. It allows users to select the voice message and do zoning paging. It supports 8 zones/groups and it could be expanded via expansion unit. It could do cascade with up to 7 expansion units and each unit support 8 zones so that the Max. quantity of zone is 64.
- Easy operation.
- It’s connected to the host via CAT5 so that the transmission distance is much longer.
- Complete indication to display the system fault and the status of main modules.
- Support zone expansion.
- With line input and it has volume control.
- Support spare line.
- Could be powered up by phantom power at 24V.
Function
- Mic output is with volume control.
- Its priority could be adjusted by the matching software VA-6000ST.
- Built in Hifi speaker to do monitoring.
- A hot key to trigger emergency PA status
- With earphone jack to do monitoring and recording.
DC Supply | |
Power Supply | 24V DC, ±20% |
0.1 A(including extension unit) | |
Power Comsumption | 2.4W(including extension unit) |
Perfermance | |
Parallel Signal Output | |
THD | <1%(rated output power),1kHz |
Frequency | 80Hz~16kHz |
Sensitivity | 500mV |
Impedance | 10kΩ |
S/N Ratio | >70dB |
Line In | |
THD | <1%(rated output power),1kHz |
Frequency | 80Hz~16kHz |
Sensitivity | 350mV |
Impedance | 10k ohms |
S/N Ratio | >70dB |
Microphone | |
Sensitivity | 5mV |
Impedance | 600Ω |
Machine | |
Demension( L×W×D ) | 256×52×149mm |
Net Weight | 1.5kg |
Mounting | Desktop or 18 inch cabinet |
Color | Black |
Environment | |
Operation Temperature | +5°C ~ +40°C |
Storage Temperature | -20°C ~ +70°C |
Relative temperature | <95%(no condensation) |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
