- Power Taps @100V:0.38W, 0.75W, 1.5W, 3W, 6W
- Power Taps @70V:0.19W, 0.38W, 0.75W, 1.5W, 3W
- Impedance:Com/26KΩ/13KΩ/6.7KΩ/3.3KΩ/1.7KΩ
- SPL(1W/1M):92dB
- Max. SPL (Rated W/1M):100dB
- Frequency Response (-10dB):120-18KHz
- Finish:Baffle: Steel, White Grille: Steel, White Cover: Steel, Red
- Speaker Driver:6"* 1 1.5"* 1
- Cutout Size:207mm
- Dimension:230 * 126mm
- Certification:CE
- Power Source:AC
- Support Apt-x:No
- Support APP:No
- Battery:No
- Number of Loudspeaker Enclosure:1
- Audio Crossover:Two-Way
- Woofer Size/Full-Range Size:6"
- Set Type:Speaker
- Material:plastic
- Waterproof:No
- PMPO:6W
- Support Memory Card:No
- Speaker Type:In-ceiling Speaker
- Output Power:6W
- Remote Control:No
- Cabinet Material:plastic
- Frequency Range:Other
- Display Screen:No
- Intelligent Personal Assistant:None
- Voice Control:No
- Built-in Microphone:No
- Tweeter Size:1.5"
- Type:Passive
- Use:voice evacuation system
- Channels:2 (2.0)
- Special Feature:Mini
- Place of Origin:CN;GUA
- Brand Name:ITC
- Model Number:T-575

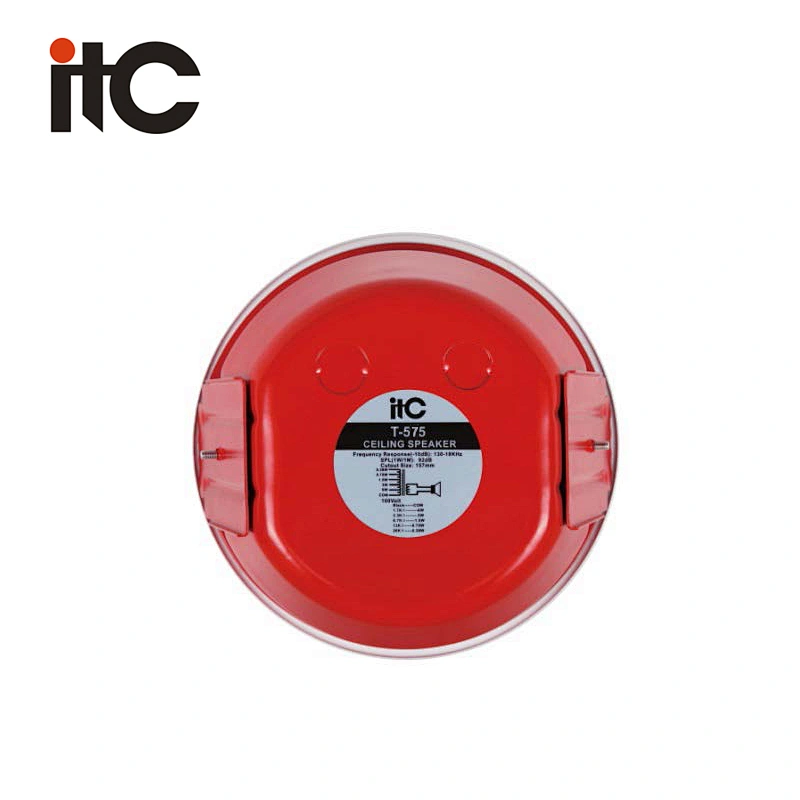

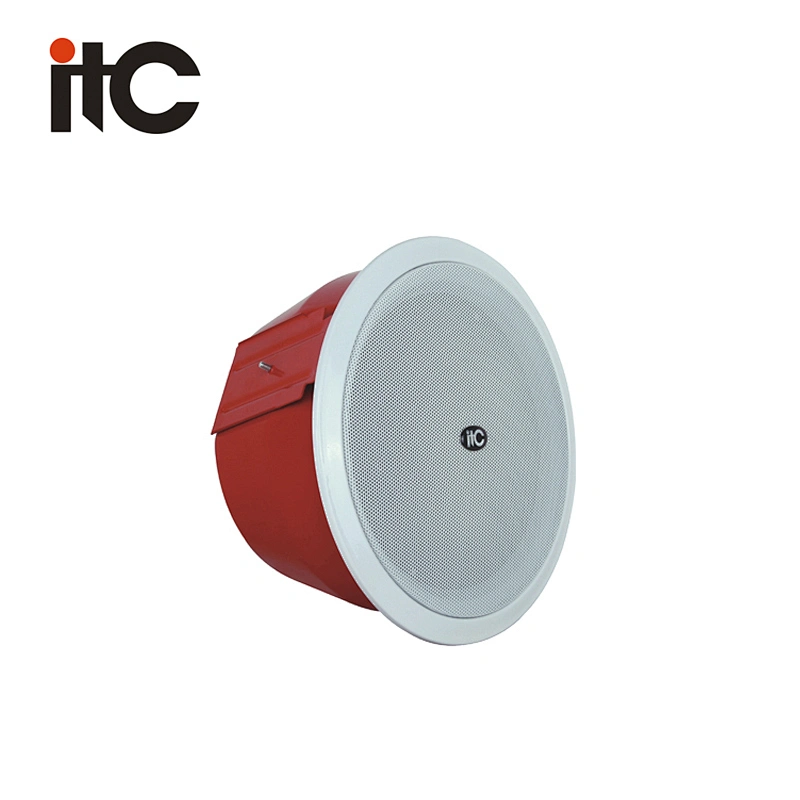

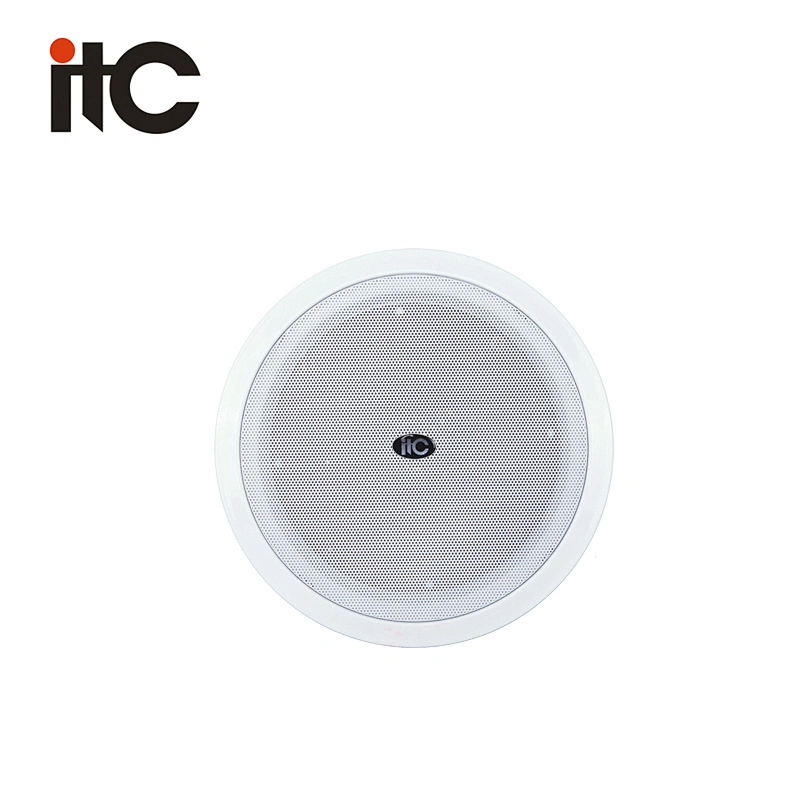

ITC T-575 6 Watt 6"and 1.5"2 Way Fireproof Fire Alarm Speaker
- Built-in 100V/70V transformer
- Fireproof ceiling type speaker
- Ceramic connector, thermal fuse and fire-resistant cable
- 6"speaker unit and 1.5"tweeter
- Power taps 0.38w-0.75w-1.5w-3w-6w @100V
- Metal grille, metal baffle and fire dome metal back
The T-575 is a fireproof ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on longer distance and allows easy parallel connection of multiple speakers.
The built-in 6"speaker driver is designed of wide frequency response 130-15kHz, the multiple power taps 0.38W, 0.75W, 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surrounding.
The metal grille, metal baffle and fire dome metal back can plus ceramic connector, thermal fuse and fireproof cable, all of the above features make it is fireproof. Its spring clamp type makes the easy and secure installation.
This fireproof ceiling speaker is an ideal choice for industrial and commercial applications in hotel, school, office and factory where background music and paging is needed.
Model | T-575 |
Power Taps @100V | 0.38W, 0.75W, 1.5W, 3W, 6W |
Power Taps @70V | 0.19W, 0.38W, 0.75W, 1.5W, 3W |
Impedance | Com/26KΩ/13KΩ/6.7KΩ/3.3KΩ/1.7KΩ |
SPL(1W/1M) | 92dB |
Max. SPL (Rated W/1M) | 100dB |
Frequency Response (-10dB) | 120-18KHz |
Finish | Baffle: Steel, White Grille: Steel, White Cover: Steel, Red |
Speaker Driver | 6"x 1 1.5"x 1 |

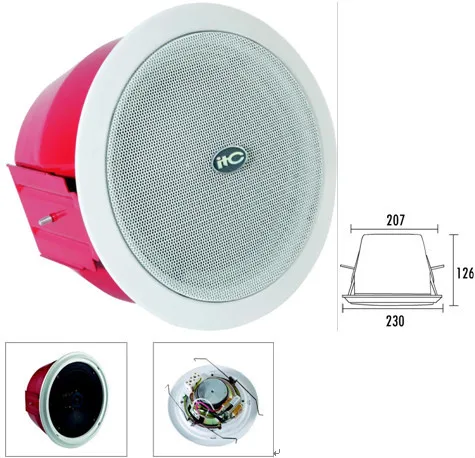

Cutout Size | 207mm |
Dimension | 230 x 126mm |
Weight | 1.6Kg |
