- Place of Origin:CN;GUA
- Model Number:T-6701
- Brand Name:ITC
- Network Input:Standard RJ45*3, 1 input, 2 output
- Protocol Support:TCP/IP, UDP, IGMP (group broadcasting)
- Audio Format:MP3/MP2
- Sampling Rate:8K~48KHz
- Transmit Speed:10Mbps
- Audio Mode:16 digit stereo CD tone
- Frequency Output:20Hz~16KHz
- THD:≤0.3%
- S/N:>70dB
- Working Temprature:-20°C~+60°C

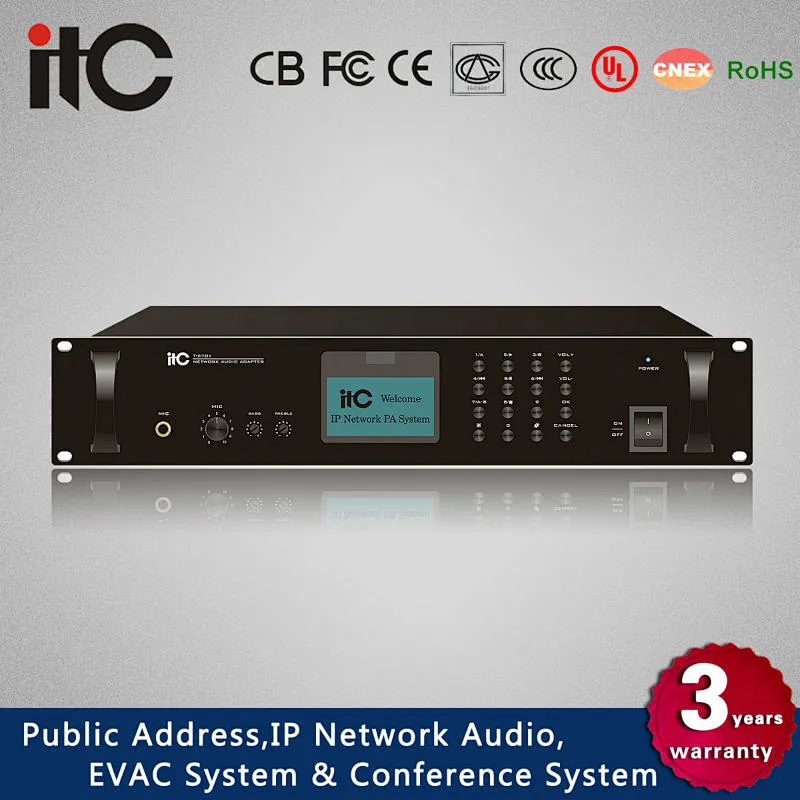

ITC T-6701 Single Channel IP Audio Decoder for IP PA System
- 19 rack mount IP/TCP network audio adapter in 2U height
- Built-in single channel TCP/IP decoder
- Decode digital audio data to analog amplifier
- Heart of IP background music, zone paging & voice alarm system
- Built-in 5 inch LCD screen display the IP address and status in English
- Supplied a remote control over music selection, IP address change and volume attenuation
- A serial IP address write in communication port
- Numeric keys on front panel for convenient operation
- 4 channel line outputs to amplifiers
- 4 channel 100V speaker inputs loop and 4 channel 3 wired volume control inputs
- 1 external line input (with volume control) and mic input
- Automatically power off when no input for 5 minutes and automatically power on when signal feed into
- Pre-set power management
Model | T-6701 |
Network Input | Standard RJ45x3, 1 input, 2 output |
Protocol Support | TCP/IP, UDP, IGMP (group broadcasting) |
Audio Format | MP3/MP2 |
Sampling Rate | 8K~48KHz |
Transmit Speed | 10Mbps |
Audio Mode | 16 digit stereo CD tone |
Frequency Output | 20Hz~16KHz |
THD | ≤0.3% |
S/N | >70dB |
Aux Line Voltage Input | 2x400mV Industrial standard screw terminals |
Sources Voltage Output | 8x775mV Industrial standard screw terminals |
Audio Output Impendance | 0V Industrial standard screw terminals |
Alarm Control Output | 0V Industrial standard screw terminals |
Power Source Control Output | 0V Industrial standard screw terminals |
Program Control Output | DC 24V Industrial standard screw terminals |
Working Temprature | -20°C~+60°C |
Working Humidity | 10%~90% |
Power Consumption | ≤40W |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Dimensions | 484x350x88mm |
Weight | 8Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop
solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, Led video wall and Lighting system , etc.
What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic
Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
