- Place of Origin:CN;GUA
- Model Number:T-6705B
- Brand Name:ITC
- Network Input:Standard RJ45 * 3
- Protocol Support:TCP/IP, UDP, IGMP
- Transmit Speed:10/100Mbps
- Audio Format:16 digit stereo CD tone
- Frequency Output:8KHz~48KHz
- THD:≤0.3%
- S/N:≥70dB
- Speaker Output Impedance:4Ω
- Rated Power Output:10W
- MIC Input S/N:10mV

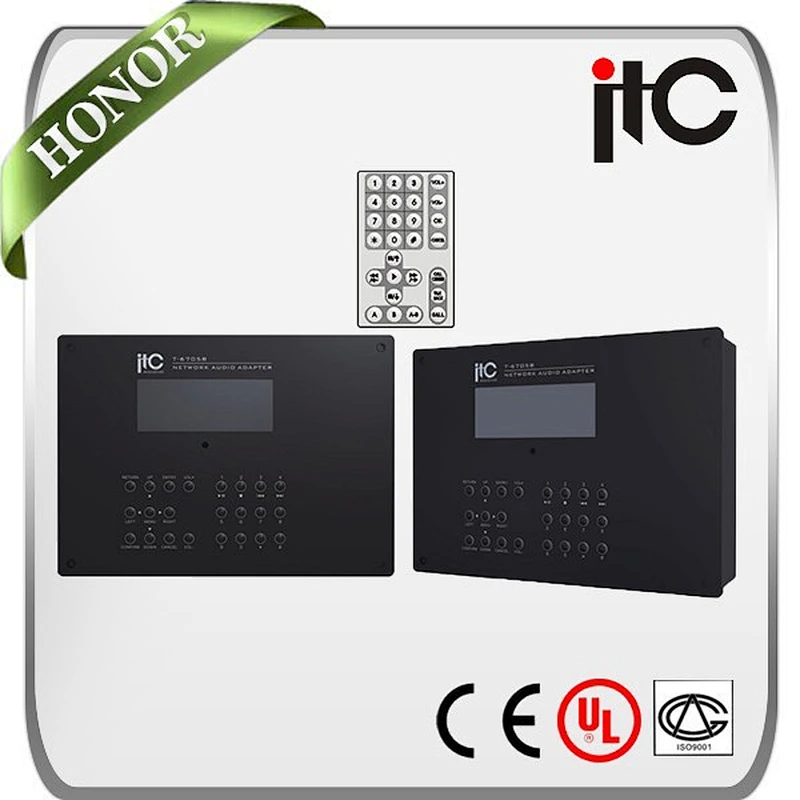

ITC T-6705B Classroom Sound System IP Amplifier
Product Description
ITC T-6705B Classroom Sound System IP Amplifier
- The IP system, TCP system, IP PA system, Internet PA system are suitable for background music system, paging system and fire alarm system
- The public address system based on IP, it is easy to identify each amplifier and speaker
- The system is fully Digital PA system to make sure hi-fi sound quality
- The IP addressable PA system is fully digital link with intercom, CCTV, security and fire alarm system
Feature
ITC T-6705B Classroom Sound System IP Amplifier
- 4.3 inches LCD screen English display
- With remote control to write in and select
- Built-in 10W stereo power amplifier
- Aux output for larger power amplifier
- Built-in time program collecting module to have real time broadcasting
- Expandable HUB module to realize hand-in-hand connection
- Support IR remote control to select program freely
- Support local MIC, line input and volume adjustment
- Remote priority forced insertion.
Specification
ITC T-6705B Classroom Sound System IP Amplifier
Model | T-6705B |
Network Input | Standard RJ45x3, 1 Input, 2 Output |
Protocol Support | TCP/IP, UDP, IGMP (group broadcasting) |
Transmit Speed | 10/100Mbps |
Audio Format | 16 digit stereo CD tone |
Frequency Output | 8KHz~48KHz |
THD | ≤0.3% |
S/N | ≥70dB |
Speaker Output Impedance and Rated Power Output | 4Ω, 10W Industrial Standard Screw terminals |
Aux Line Voltage Input | 2x400mV Industrial Standard Screw terminals |
MIC Input S/N | 10mV |
Working Temperature | 5°C~40°C |
Working Humidity | 10%~90% |
Power Consumption | ≤40W |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Dimensions | 359x245x65mm |
Weight | 4Kg |
