- Place of Origin:CN;GUA
- Usage:FIRE
- Model Number:VA-6000T
- Brand Name:ITC
- Voltage:12 DC, ±3%
- Max current:<0.1A
- Power consumption:<1W
- Size (L x W x D):156 x 32 x 93mm
- Net. Weight:About 1.0 Kg
- Installation:Desktop or Wall mounted
- Operation Temp:+5℃~ +40℃
- Storage Temp:-20℃~ +70℃
- Relative Temp:<95% (No condensation)
- Color:Black

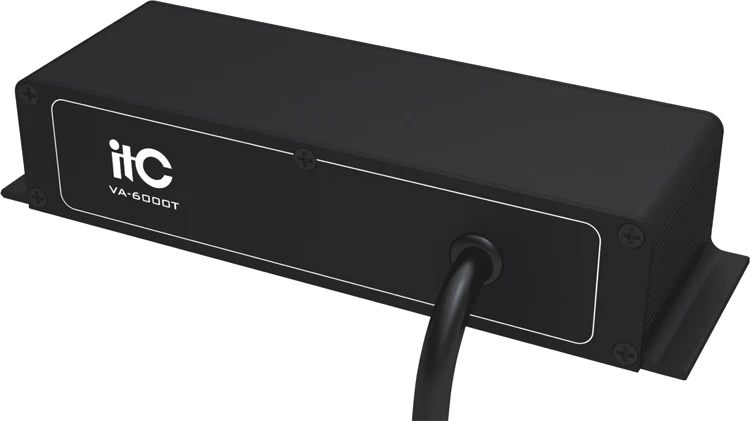

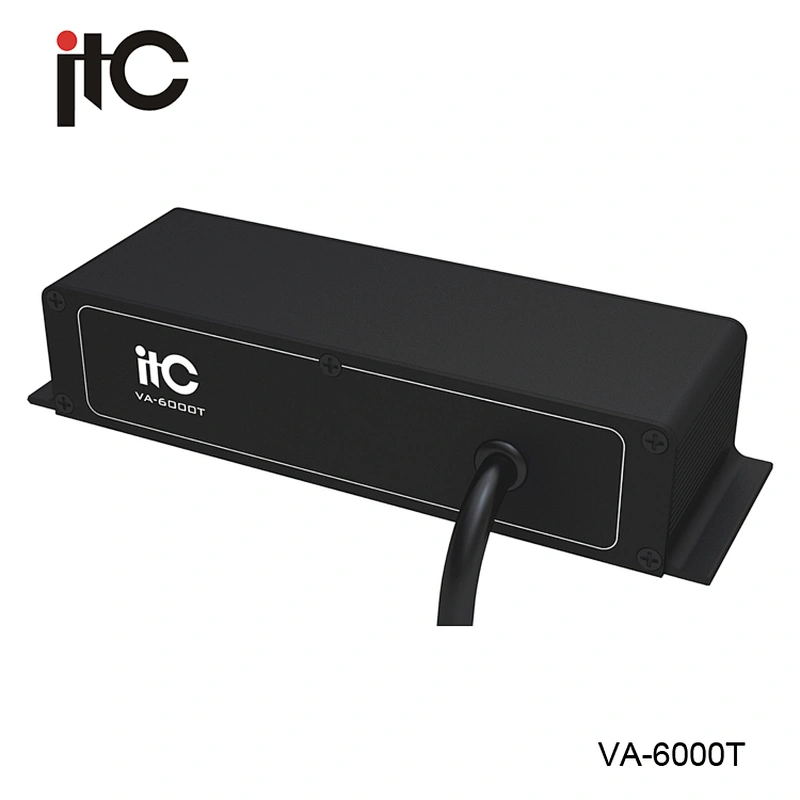

Free Adjusting Fire Alarm Terminal Detector
Your Preferred Choice for Economical Public Address System
VA-6000T work with VA-6000MS and VA-8500S to detect working status of speaker loop . It is
not to be influenced by the BGM signal, no need external power supply, easy to installation.
Features
* Integrated aluminum body, elegant appearance.
* No need external power supply, easy for installation and cable arrangement.
Specifications
Model | VA-6000T |
Electrical index | |
DC Voltage | |
Voltage | 12 DC, ±3% |
MAX Current | <0.1A |
Power consumption | <1W |
Machine Index | |
Size (L x W x D) | 156 x 32 x 93mm |
Net. Weight | About 1.0 Kg |
Installation | Desktop or Wall mounted |
Color | Black |
Environment Requirements | |
Operation Temp | +5℃~ +40℃ |
Storage Temp | -20℃~ +70℃ |
Relative Temp | <95% (No condensation) |
Systemdiagram
1) The host has 4 internal modules for audio sources.
We’ve already provided our users with emergency message voice in the host. Meanwhile, users could change the voice freely, according to their practical necessity.
2)Users could let the system transmit 13 channel of audio message to different partition simultaneously.
1ch Emergency Microphone, 2ch Emergency Voice Message, 1ch Prompt Sound, 1ch Background Music, 4ch AUX, 4ch Remote Paging Microphone
3) Multiple programmable alarm modes
The system could achieve adjacent alarm, specified partition alarm, overall zones alarm and so on, which meets the demand of various circumstances.
4) Scheduled program broadcast
Through using internal MP3 player and internal timer, users’re able to set scheduled tasks freely.
5)Local program broadcast
The host, 8ch power amplifier and amplifier changeover furnishes users with port to input local audio sources or microphone.
6)Telephone Broadcast
7) 1 button to do paging and 1 button to reset
On the front panel of the host, there’re 2 buttons, 1 for paging, the other for reset.
8) Remote broadcast and remote control
The host supports 4 remote station and the distance is up to 1 Km. Via remote station, users could do paging to any zones and on-demand unicast any audio sources stored in the host.
9)Backup
Both the 8ch power amplifier and amplifier changeover has the function of backup to ensure the whole system runs stably when the host fails.
10)2 modes of volume control forced switching
Both 3-wire and 4-wire forced switching are available.
11) Real time status display
With complete indications for power status, operating status, failure status and so on.
12)Real time status output
With port to output status signal to the third-party devices
13)Port for working with the third-party system
Our system offers port to work with fire detection system, CCTV system, remote control system and so on.
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
