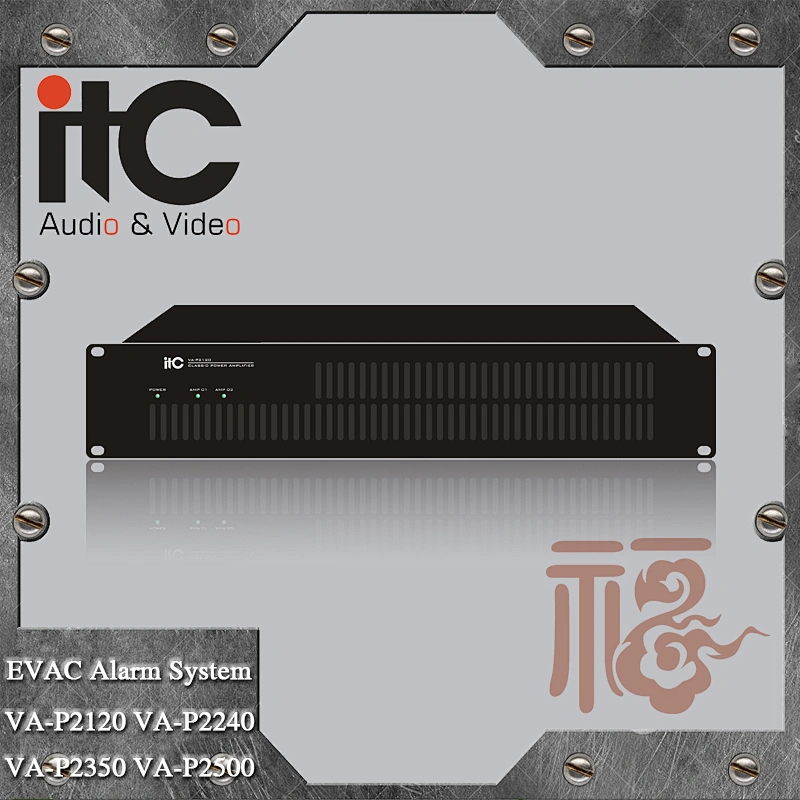

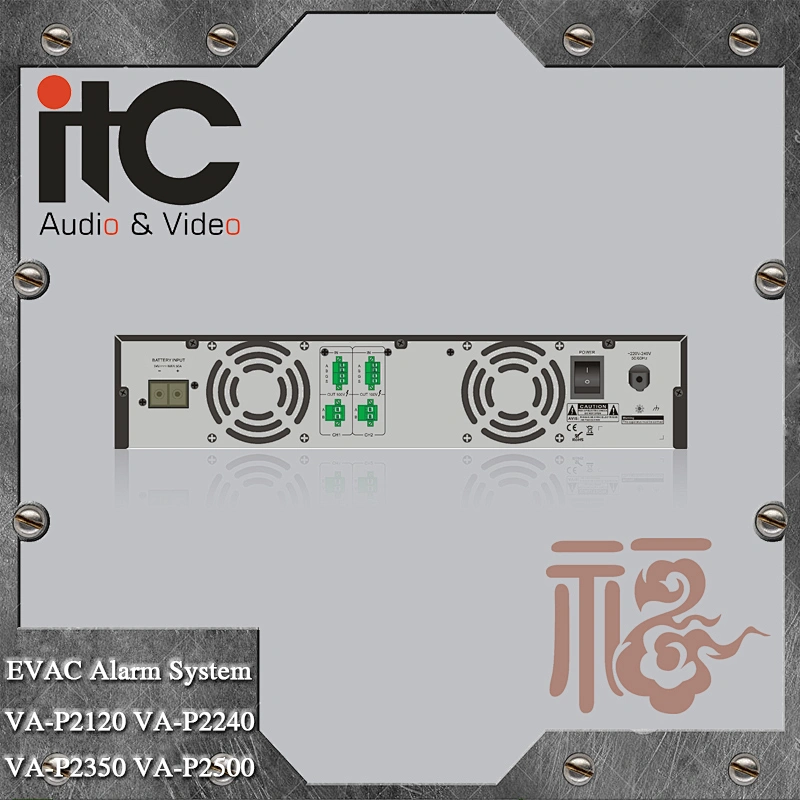

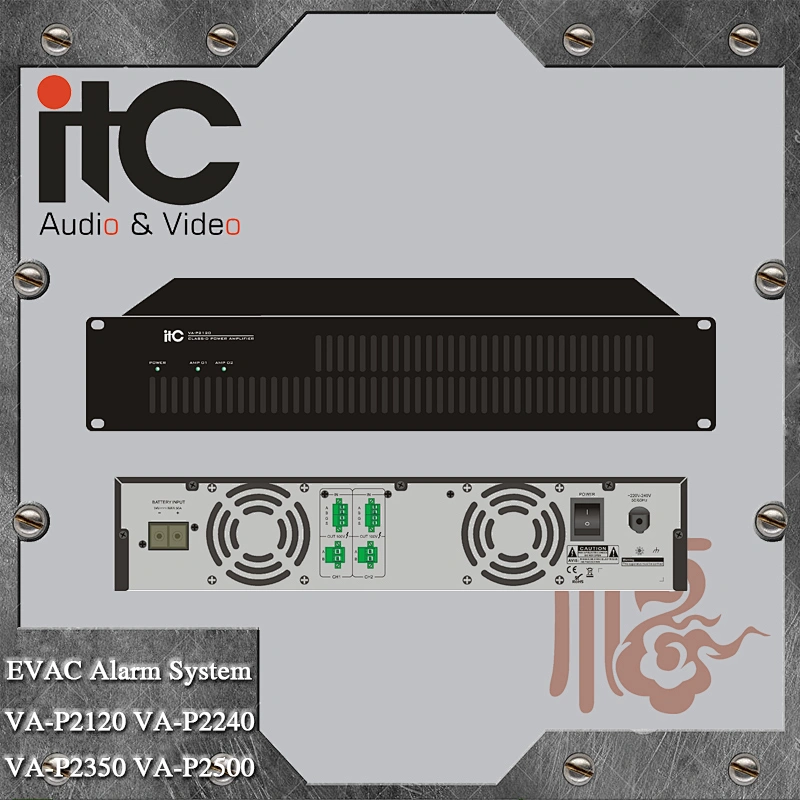

ITC VA-P2120 Series Voice Evacuation System Mono Class D Amplifier
This series sound power amplifier is used in ITC Voice Alarm Evacuation System; 4 mutually independent power amplifiers with PFC module, power-saving control module and DC 24V power interface are integrated in 2U case, and the Max power is up to 500W. optional rated power includes 120W x2, 240W x2, 350W x2 and 500W x2;
Features
ITC VA-P2120 Series Voice Evacuation System Mono Class D Amplifier
1)Using modular design, which could be configured according to the demand;
2)Adopt design proposal of high-efficient class D digital amplifier, which helps with less power consumption;
3)In 2U case, 4 mutually independent channels, and the Max power of each channel is up to 500W power.
Basic Function
ITC VA-P2120 Series Voice Evacuation System Mono Class D Amplifier
1) Protection for over-loaded and short;
2) Automatic temp-control;
3) Automatic working status detection for each channel amplifier and the report would be sent to VA-6000MA;
4) With LED indicators to display status;
5) Automatic switching between main amplifier and backup amplifier; automatic status detection for speaker loop;
