- Place of Origin:CN;GUA
- Model Number:TS-P240/TS-P260
- Brand Name:ITC
- Input impedance:20KΩ balanced
- Output impedance:100KΩ balanced
- CMRR:>78dB (1KHz)
- Input Range:≤+25dBu
- Frequency Response:20Hz-20KHz (-0.5dB)
- S/N Ratio:≥100dB@1KHz0dBu
- THD:<0.002% OUTPUT=0dBu/1KHz
- Channel separation:>88dB (1KHz)
- Power consumption:≤25W
- Power Supply:AC110V/220V 50/60Hz

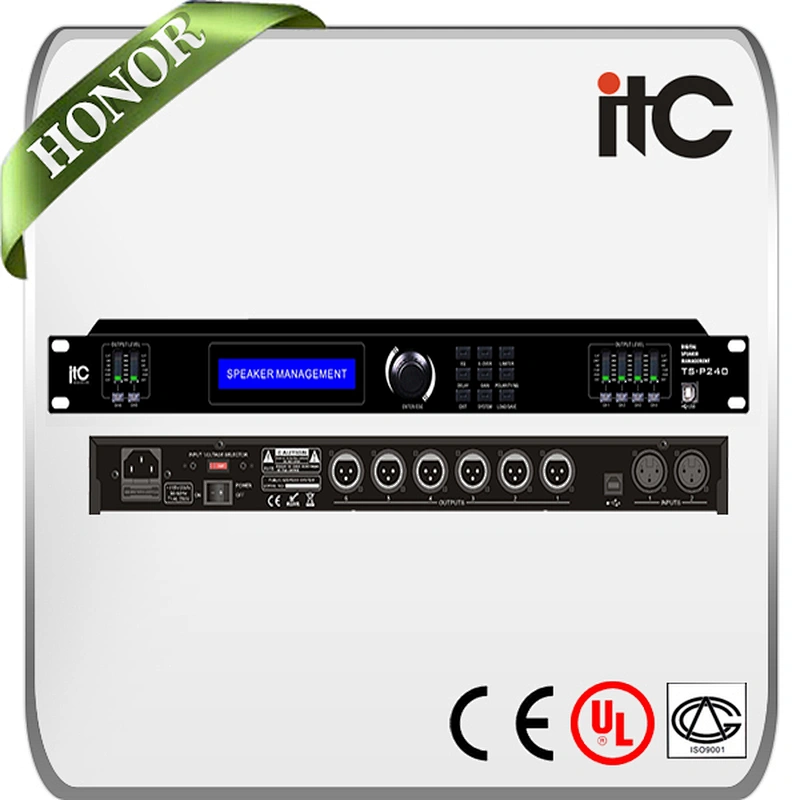

TS-P240 Series Latest 32 Bit 2 Channels DSP Programmable Digital Audio Processor
1.96KHz sampling rate, 32-bit DSP processor, 24-bit A/D and D/A converter;
2.5 option: 2 inputs and 6 outputs, 2 inputs and 8 outputs, 3 inputs and 6 outputs, 4 inputs and 6 outputs, 4 inputs and 8 outputs. Various combination of frequency division mode, high pass and low pass frequency spot can reach 20Hz~20KHz;
3.The noise gate of input channel is adjustable;
4.Users could control the gain, the pressure limit and select the input channel via output channel; also, users could copy parameters of 1 channel to the other and do linkage control;
5.Users could control the device via both buttons/thumbwheel on the panel and software in the computer;
6.Users could set password via button “SYSTEM”;
7.The device is connected with computer via USB, Wifi, RS-485 and Internet; remote control is realized via Wifi and Internet;
8.The device is connected with central control host via RS-485 to adjust main parameters;
9.Could lockout part of function to realize data confidentiality;
10.1 device store up to 30 kinds of program.

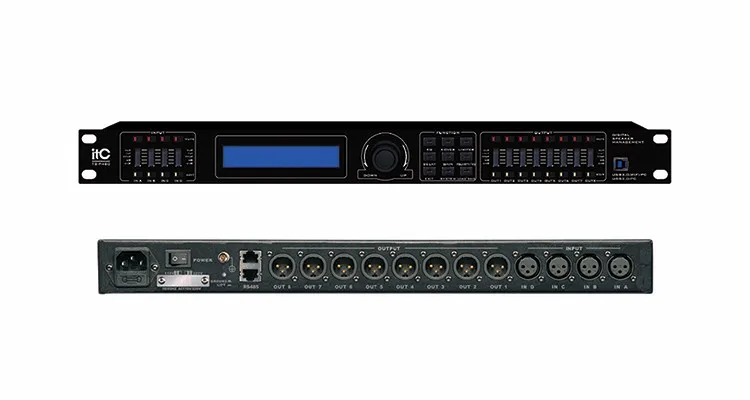

Model | TS-P240 | TS-P260 | TS-P280 | TS-P480 |
Input Channel & Socket | 2 channel XLR female | 2 channel XLR female | 2 channel XLR female | 4 channel XLR female |
Output Channel & Socket | 4 channel XLR male | 6 channel XLR male | 8 channel XLR male | 8 channel XLR male |
Input impedance | 20KΩ balanced | |||
Output impedance | 100KΩ balanced | |||
PC interface | Front Panel: 1 USB, Real Panel: 2 RS-485 (RJ-45) | |||
CMRR | >70dB (1KHz) | |||
Input Range | ≤+25dBu | |||
Frequency Response | 20Hz-20KHz(-0.5dB) | |||
SNR | >110dB@1KHz0dBu | |||
Distortion | <0.002% OUTPUT=0dBu/1KHz | |||
Channel Separation | >88dB (1KHz) | |||
Input Channel Function | ||||
Input Mute | Independent mute control for each channel | |||
Input Volume | Adjustment Range: -80dB to +12dB, step is 0.2dB | |||
Input Delay | Each input channel has independent delay control; adjustment range is 0-1000ms, <10ms, step is 21us, 10ms-20ms, step is 84us, >20ms, step is 0.5ms | |||
Input Phase | inverting (+)/reverse (-) | |||
Input EQ | Each input channel has 6 band EQ; adjustable parameter: center frequency: 20Hz-20KHz, 239 frequency points; bandwidth: 0.05oct-3oct, step is 0.05oct; Gain: -20dB to +20dB, step is 0.1dB | |||
Input Compression | Threshold: -40dBu to +20dBu, step is 0.5dBu; compression rate: 1.0:1 to 20:1, <2.0:1, step is 0.1, >2.0:1, step is 0.5; response time: 0.3ms to 200ms, <1ms, step is 0.3ms, >1ms, step is 1ms; release time: 50ms to 5000ms, step is 1ms | |||
Input Extension | Threshold: -40dBu to +20dBu, step is 0.5dBu; extension rate: 1:1.0 to 1:20, <1:2.0, step is 0.1, >1:2.0, step is 0.5; response time: 50ms to 5000ms, <1ms, step is 0.3ms, >1ms, step is 1ms; release time: 0.3ms to 200ms | |||
Output Channel Function | ||||
Output Mute | Each channel has independent mute control | |||
Output Selection | Could select different input or different input combination | |||
Output Gain | Adjustment range: -80dB-+12dB, step is 0.2dB | |||
Output Delay | Each output channel has independent delay control; adjustment range is 0-1000ms, <10ms, step is 21us, 10ms-20ms, step is 84us, >20ms, step is 0.5ms | |||
Output Phase | inverting (+)/reverse (-) | |||
Frequency Divider Setting | Each output channel has independent low pass filter (LPF) and high pass filter (HPF); adjustable parameters: Filter Type: Linkwitz-Riley/Bessel/Butterworth; frequency turning point: 20Hz-20KHz, 239 frequency point; attenuation slope: 12dB/oct, 18dB/oct, 24dB/oct, 30dB/oct, 36dB/oct, 42dB/oct, 48dB/oct | |||
Compression Setting | Threshold: -40dBu to +20dBu, step is 0.5dBu; compression rate: 1.0:1 to 20:1, <2.0:1, step is 0.1, >2.0:1, step is 0.5; response time: 0.3ms to 200ms, <1ms, step is 0.3ms, >1ms, step is 1ms; release time: 50ms to 5000ms, step is 1ms | |||
Limiter Setting | Each output channel has independent limiter; adjustable parameters: threshold: -40dBu to +20dBu, step is 0.5dBu; starting time: 0.3ms-200ms, <1ms, step is 0.1 ms, >1ms, step is 1ms; release time: 50ms-5000ms, step is 1ms | |||
Output EQ | Each output channel has 6 band EQ; 3 kinds of EQ method: Parameter/Lo-Shelf/Hi-Shelf; A Parameter: adjustable parameter: frequency center point: 20Hz to 20KHz, total 239 frequency points; bandwidth: 0.05oct to 3oct, step is 0.05oct; Gain: -20dB to +20dB, step is 0.1dB; B Lo-Shelf and Hi-Shelf: adjustable parameters: central frequency point: 20Hz to 20Khz, total 239 frequency points; slop: 6dB/12dB; Gain: -20dB to +20dB, step is 0.1dB | |||
Processor | 96KHz sampling rate, 32Bit DSP processor, 24Bit A/D and D/A converter | |||
Display | 2x24 LCD blue-backlight display settings, precise digital level meter of 5 band LED for input/output, status of mute and editing | |||
Power Consumption | ≤25W | |||
Power Supply | AC110V to 220V 50/60Hz | |||
Dimension ( WxDxH ) | 482x228x44mm | |||
NW | 4.1Kg | |||
Transport Dimension (WxDxH ) | 555x325x98mm | |||
GW | 4.6Kg | |||
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one stop
solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, Led video wall and Lighting system , etc.
What's more,our system is applied to various worldclass events, such as 2008 Peking Olympic
Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 600 thousand successful cases in China and in worldwide.
