- Place of Origin:CN;GUA
- Use:Karaoke Player
- Model Number:VA-565 VA-575 VA-585
- Brand Name:ITC
- Type:Passive
- Channels:1
- Use:evac
- Rated Power at 100V:0.93W, 1.87W, 3.75W, 7.5W, 15W
- Rated Power at 70V:0.46W, 0.93W, 1.87W, 3.75W, 7.5W
- Impedance:Com/10.7Kohm/5.3Kohm/2.6Kohm/1.3Kohm/ 670ohm
- Sensitivity (1W/1M):93dB
- Max. Sensitivity (1W/1M):105dB
- Frequency Response (-10dB):80Hz to 20KHz
- Material:Stainless Steel Enclosure and Alumina Mesh Enclosure
- Speaker Driver:8"x1 and 1.5"x1
- Mounting Size:240mm
- Dimension:270x130mm

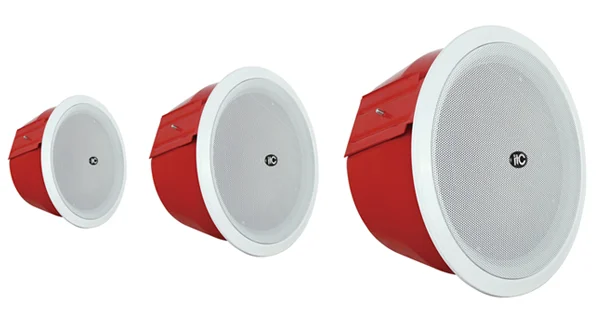

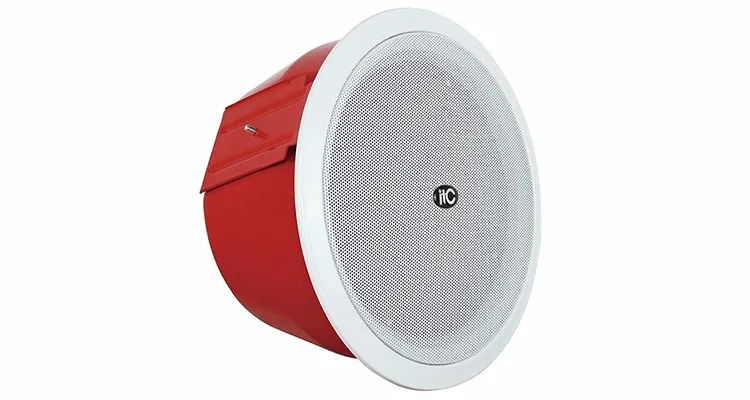

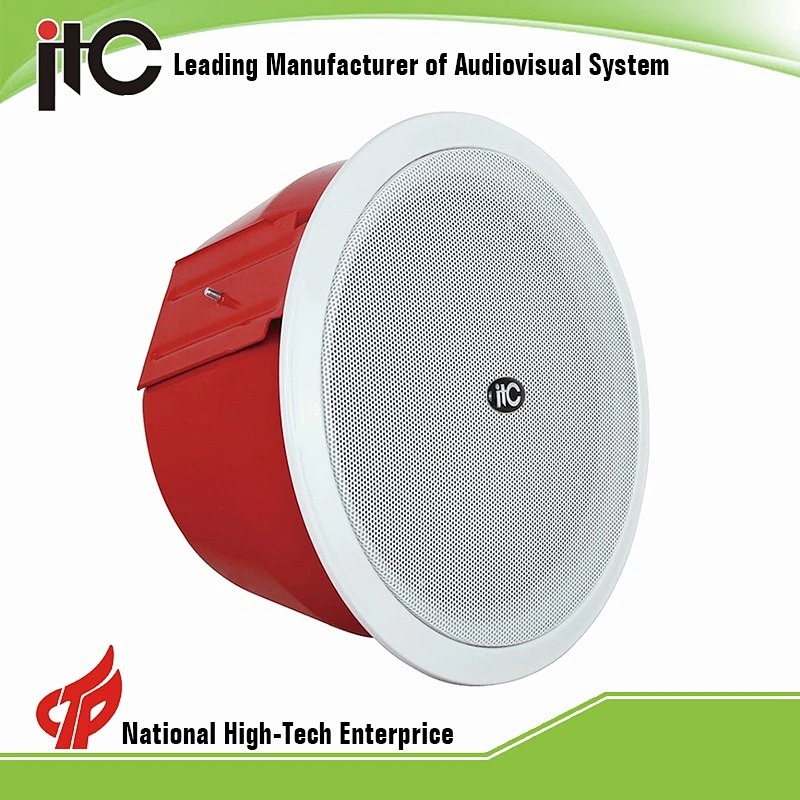

VA-565 EN54-24 Approved Public Address Voice Emergency System Fireproof Ceiling Speaker
1) Fireproof ceiling speaker that has multi power selection;
2) With temperature insurance tube;
3) Using sup-frequency coaxial design; the sound is loud and cle
Model | VA-565 | VA-575 | VA-585 |
Rated Power at 100V | 0.38W, 0.75W, 1.5W, 3W, 6W | 0.38W, 0.75W, 1.5W, 3W, 6W | 0.93W, 1.87W, 3.75W, 7.5W, 15W |
Rated Power at 70V | 0.19W, 0.38W, 0.75W, 1.5W, 3W | 0.19W, 0.38W, 0.75W, 1.5W, 3W | 0.46W, 0.93W, 1.87W, 3.75W, 7.5W |
Impedance | Com/1240Ω/1840Ω/3340Ω /6790Ω/13.3KΩ | Com/1390Ω/1980Ω/ 3410Ω/7080Ω/13.23KΩ | Com/670Ω/1300Ω /2600Ω/5300Ω/8950Ω |
Sensitivity (1W/1M) | 92dB | 92dB | 93dB |
Max. Sensitivity (1W/1M) | 100dB | 100dB | 105dB |
Frequency Response (-10dB) | 130Hz to 18KHz | 120Hz to 18KHz | 80Hz to 20KHz |
Speaker Driver | 5” x1 | 6” x1 | 8” x1 and 1.5” x1 |

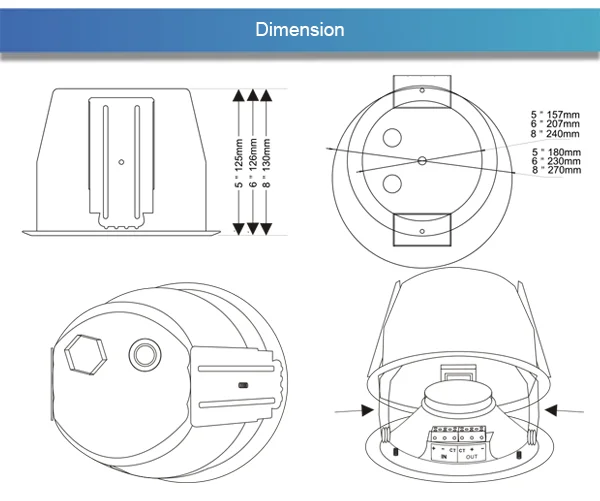

Mounting Size | 157mm | 207mm | 240mm |
Dimension | 180x147mm | 230x148mm | 270x152mm |
Weight | 1.2Kg | 1.6Kg | 1.7Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
Q1: Are you manufacturer or trade company? Where?
A: We are manufacturer. which located in NO. 1 Building B Block Zhongcun Street Panyu District Guangzhou, Guangdong, China.
Q2: Do you offer OEM&ODM service?
A: Yes, we do.
Q3: What's the quality standard of your products?
A: Our products has approved CCC, ISO9001, CE, RoHS, EN54-24 and EN54-16 certification.
Q4: Which place will use ITC equipment?
A: Our products are widely used in International Conference, Governments, Banks, Churches, Highways, Airports, Parliaments, Eduction institutes, Hotel, Private corporate conference hall and ect.
Q5: What project you have done in overseas?
A: *EXPO 2016 Antalya in Turkey
*International Airpport in Tabatinga, Brazil.
*The 7th South China Sea International Conference in Vietnam.
*The Subway center of Chanakyapri in New Delhi, India .
*Department of Public Works and Highway in Philippines.
Q6: How to contact us?
A: Write down what you need and click Send, you will get the feedback soon.
