- Place of Origin:CN;GUA
- Model Number:T-2S02
- Brand Name:ITC
- Output:1V/600Ω
- Frequency Response:20Hz-20KHz(±1dB)
- S/N Ratio:Mic input: 65dB; Line input: 85dB
- Tone:Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz
- Phantom Power:+48V
- Protection:AC fuse
- Power Supply:115V and 230V voltage selector
- Dimension:484*209*44mm
- Weight:3.9Kg

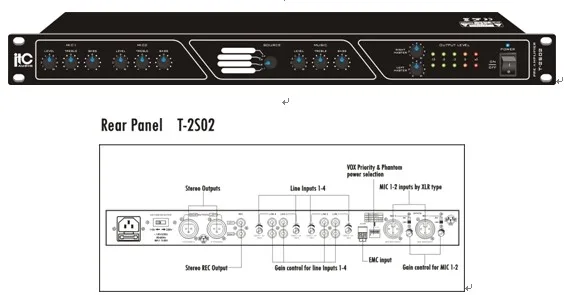

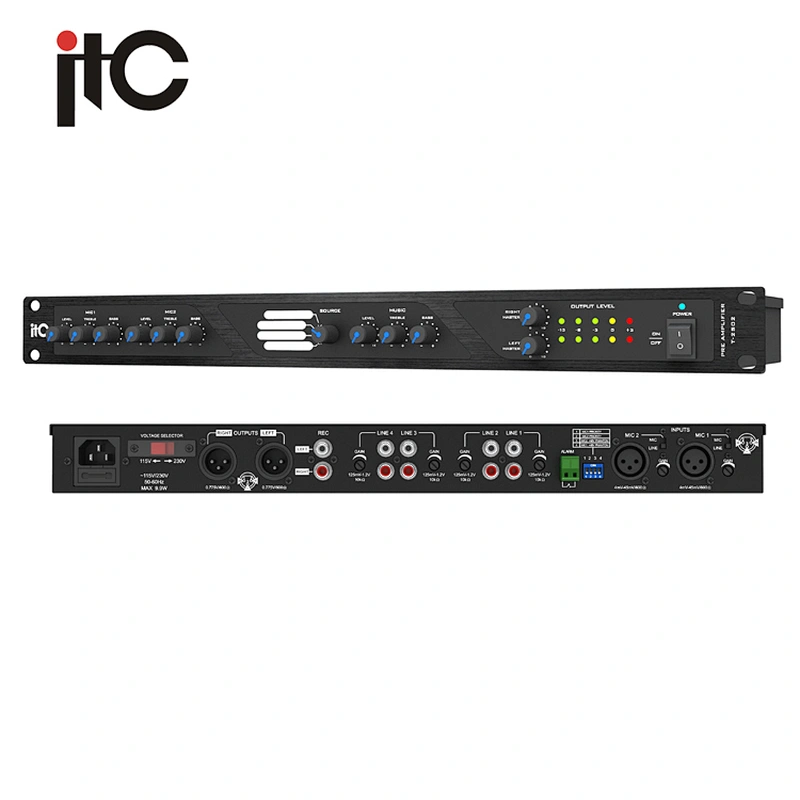

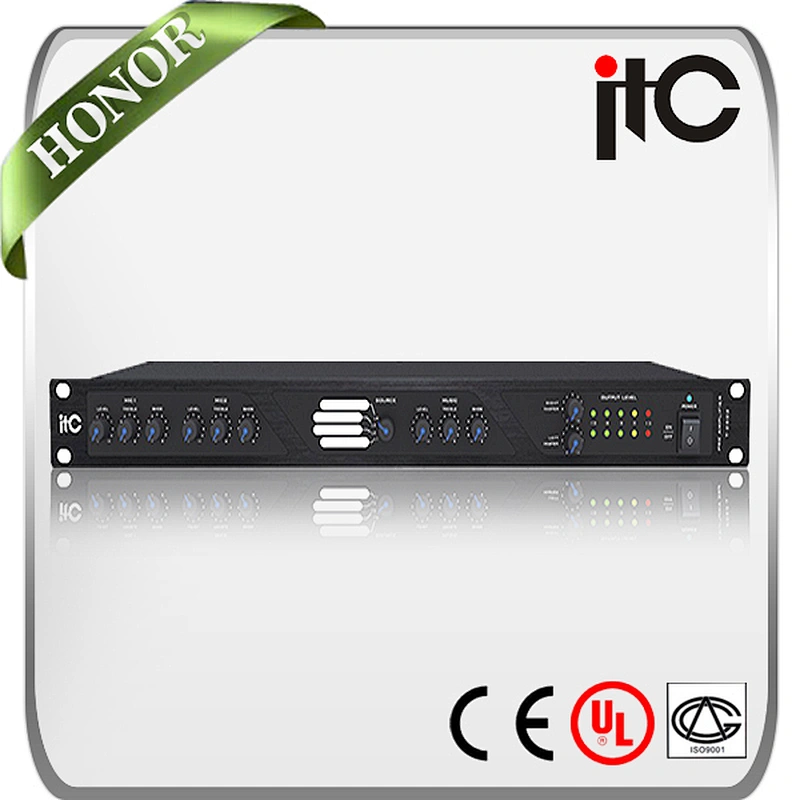

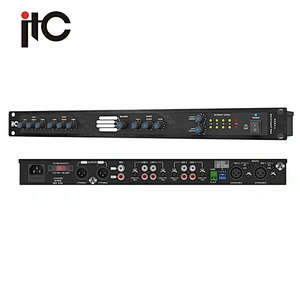

ITC T-2S02 Phono and Microphone Stereo Preamplifier with Alarm Input and REC
Features
* 2 balanced mic inputs by XLR type, phantom power & gain control is separately provided
* 4 unbalanced line inputs by XLR type, gain control is separately provided
* Stereo balanced line outputs by XLR type
* Alarm input & REC unbalanced output
* Input priority level from high to low: Alarm input, Mic1/Mic2 & Line 1-4 inputs
* Bass/treble tone control and volume control for Mic1, Mic2 & source
* Master volume control separately for both left and right channel
* 5 output level meters separately for left and right channel
* Dual AC input voltage selector of 115V and 230V
Specification
Model | T-2S02 |
Input | MIC 1-2: 4 mV -45 mV /600Ω, balanced MIC 1-2(LINE): 150mV-1.5V/10KΩ, balanced LINE 1, 2, 3, 4: 250 mV -2.5V/10KΩ, unbalanced |
Output | 1V/600Ω |
Frequency Response | 20Hz-20KHz(±1dB) |
S/N Ratio | Mic input: 65dB; Line input: 85dB |
Tone | Bass: ±10dB at 100Hz, Treble: ±10dB at 10KHz |
Phantom Power | +48V |
Protection | AC fuse |
Power Supply | 115V and 230V voltage selector |
Dimensions | 484x209x44mm |
Weight | 3.9Kg |
Pre-sale Service
* High Quality + Factory Price + Quick Response + Reliable Service, is our working faith.
* Professional foreign trade team, Reply your Alibaba enquiry and trade messager in 24 working hours.
* 30 system consultants and 10 designers to make drawing and BOQ for each tender.
* Design and BOQ response to customer within 48 hours.
Middle-sale Service
* Testing quality again before sending goods.
* Well-trained sales team for sales and basic technical service.
* Online system software demo and configuration is available.
* PDF specification sheet, system configuration template and architectural & engineer specification for documents support.
* Sending the tracking number/bill of loading, and update the situations of the goods till customers receive the goods.
After-sale service
* ITC guarantee all electronics of 3 years quality warranty.
* ITC could supply 1% wearing spare parts free of charge.
* Two English spoken technician provide online after sales service.
* Technical documents could be downloaded from website www.itc-pa.com.cn.
* All of the quality compliant shall be feedback with a solution within 48 hours.
* We have very strict quality control system.
* We promise the electronics yearly failure rate is less than 1%.
* 100% products need to be aged (full loading) at least 24 hours and tested 4 times before delivery.
