- Place of Origin:CN;GUA
- Model Number:T-1S01
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:1
- Mic Input:Mic 1/2/3/4/5: 5mV/600 ohm, balanced
- AUX Input:AUX 1/2/3: 10Kohm/200mV, unbalanced
- Output:600 ohm/1V/0dBV
- Frequency Response:20 to 20KHz(±1dB)
- Mic Input Sensitivity:80dB
- AUX Input Sensitivity:85dB
- Bass:±10dB at 100Hz
- Treble:±10dB at 10KHz
- Dimension:484*295*44mm
- Weight:3.75Kg

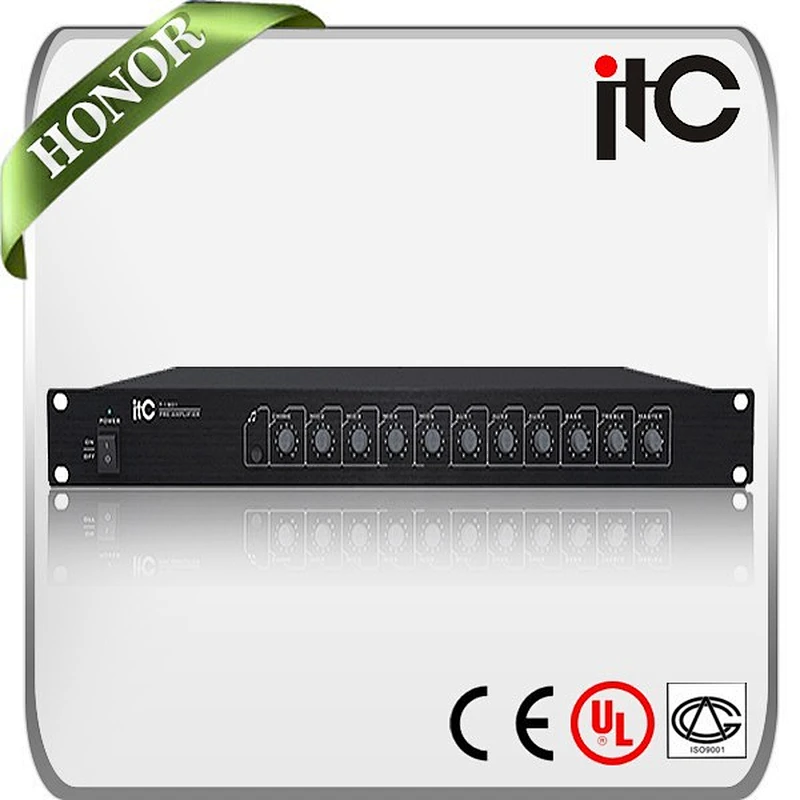

ITC T-1S01 Classical 6 Inputs Phantom Power Microphone Preamp
*1U standard rack mount design.
*Multiple input: 5 Mic input, 3 AUX input and 1 EMC input.
*Mic 1 has highest priority and EMC input has the second.
*Each input has individual treble/bass control and volume control; Total volume control is also furnished.
*Mic input is with phantom power and individual switcher.
*Could work with T-319.
Model | T-1S01 |
Input | Mic 1/2/3/4/5: 5mV/600 ohm, balanced |
AUX 1/2/3: 10Kohm/200mV, unbalanced | |
Output | 600 ohm/1V/0dBV |
Frequency Response | 20 to 20KHz(±1dB) |
Signal/Sensitivity | Mic Input: 80dB |
AUX Input: 85dB | |
Tone | Bass:±10dB at 100Hz |
Treble:±10dB at 10KHz | |
Power Supply | 484*295*44mm |
Weight | 3.75Kg |
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
