- Place of Origin:CN;GUA
- Model Number:T-6240
- Brand Name:ITC
- Type:PROFESSIONAL AMPLIFIER
- Channels:8 (7.1)
- Input:70 mV
- Output:1 V
- Frequency Response:50 Hz ~18 KHz (±2dB)
- S/N:MIC: 66dB LINE: 80dB
- THD:0.01%
- Crosstalk:MIC: 80dB LINE: 85dB
- Power Supply:AC 110V or 230V
- Consumption:35W
- Dimension:484*303*88mm
China suppliers 8 channel zone mixer amplifier,power mixer amplifier 8 channel

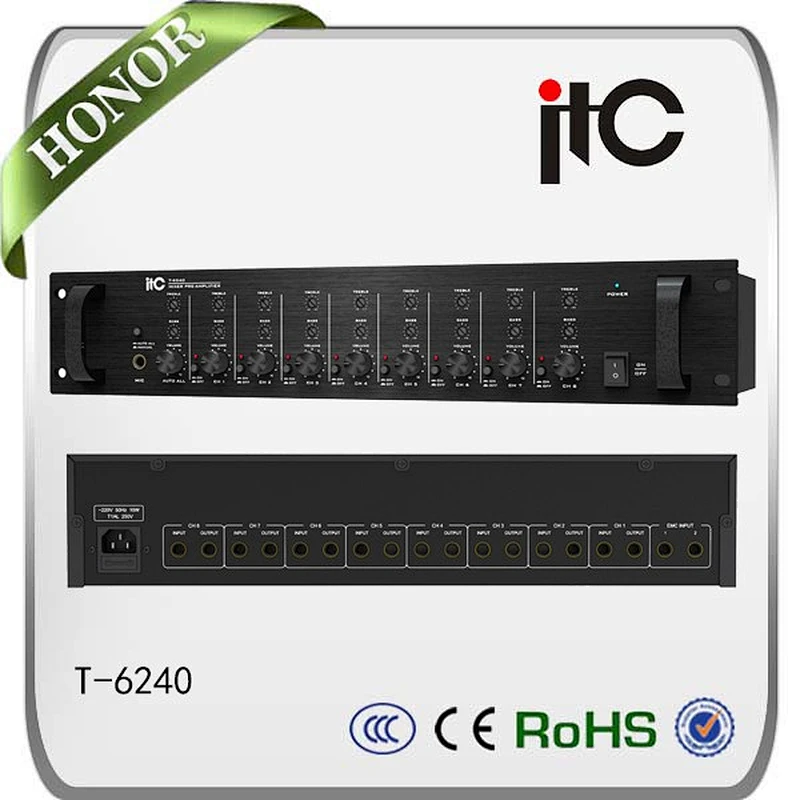

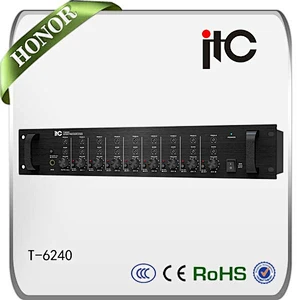

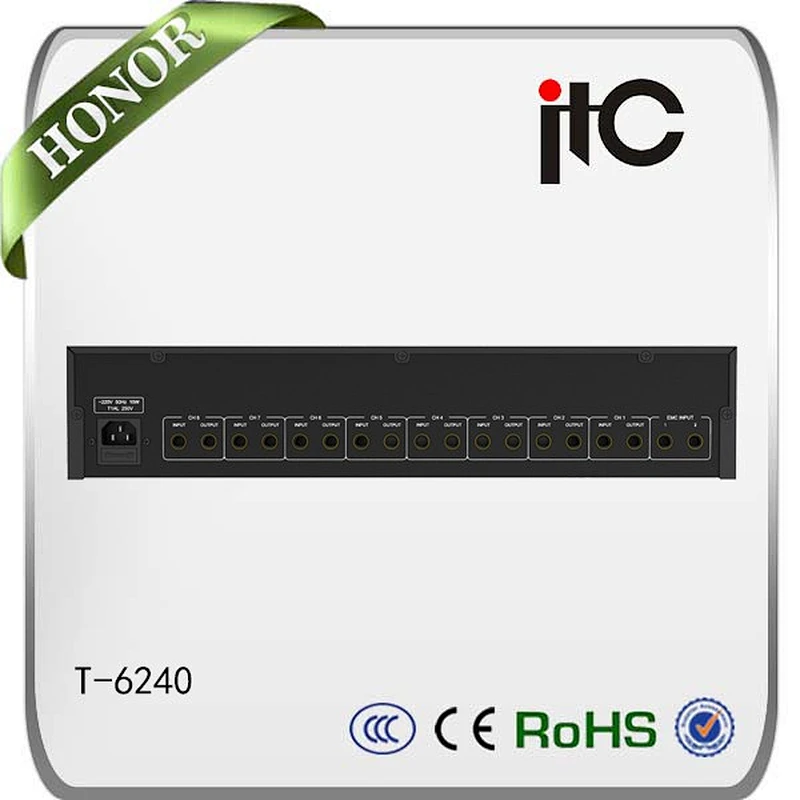

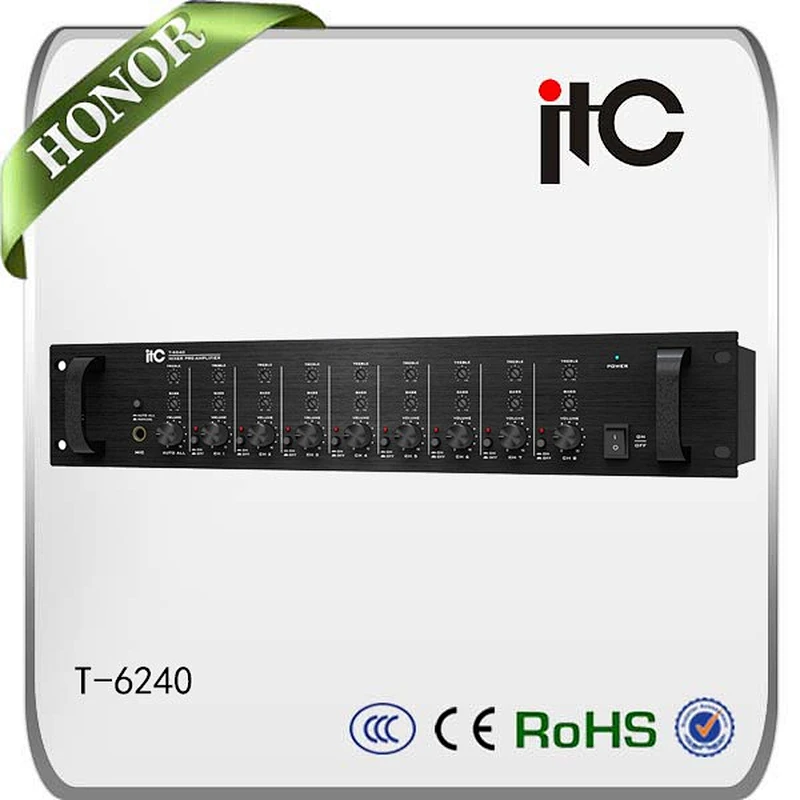

ITC T-6240 8 In 8 Out Phono and Microphone Preamplifier with EMC Input
The T-6240 is a public address preamplifier with 8 line inputs, 1 unbalanced MIC input and 2 EMC(priority) level inputs. Each of the eight input channels can be selected via front panel push buttons for use with the MIC input, in this way the T-6240 can be used to page individual channel. Priority muting is achieved via EMC1-2 inputs for overriding other inputs except Mic1. Individual gain controls are provided for each channel and MIC inputs
Feature
- 8 unbalanced line/Mic inputs by phone jack
- 8 unbalanced line output
- One Mic input with VOX priority
- 2 EMC priority inputs
- EMC1 has priority over all inputs(Except MIC 1)
- 2U rack-mount chassis
ITC T-6240 8 In 8 Out Phono and Microphone Preamplifier with EMC Input
Model | T-6240 |
Input | MIC: 70mV/600Ω, unbalanced CH1-CH8: 350mV/10KΩ, unbalanced EMC: 1.2V/10KΩ, unbalanced |
Output | 1V, 600Ω |
Frequency Response | 50Hz~18KHz(±2dB) |
S/N Ratio | MIC: 66dB, LINE: 80dB |
THD | 0.01% |
Crosstalk | MIC: 80dB, LINE: 85dB |
Muting Function | EMC1, 2 overrides other input signals exception MIC1 With 0-30dB attenuation |
Control | LINE, MIC votume controls, channel selectors, power switch |
Indicators | Power LED, MIC channel LED |
Protection | AC fuse: 1A |
Power Supply | ~110V/60Hz or ~230V/50Hz |
Power Consumption | 35W |
Weight | 4.6Kg |
Dimension | 484x303x88mm |
Finish | Panel: aluminum plate, balck Case: steel plate, black |
ITC T-6240 8 In 8 Out Phono and Microphone Preamplifier with EMC Input
ITC T-6240 8 In 8 Out Phono and Microphone Preamplifier with EMC Input
ITC Audiovisual is the pioneer of Chinese audiovisual industry. Latest, we launch Luna Cloud-based Public Address System. Also, we develop steadily. We provide our client with one-stop solution, such as Public Address System,IP System,conference system,video conferencing,Evacation System, professional sound system, multimedia central control system, etc. What's more,our system is applied to various world-class events, such as 2008 Peking Olympic Games, 2010 Shanghai Expo, 2010 Guangzhou AsianGames, etc. For now,we have up to 200 thousand successful cases in China and in worldwide.
